Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

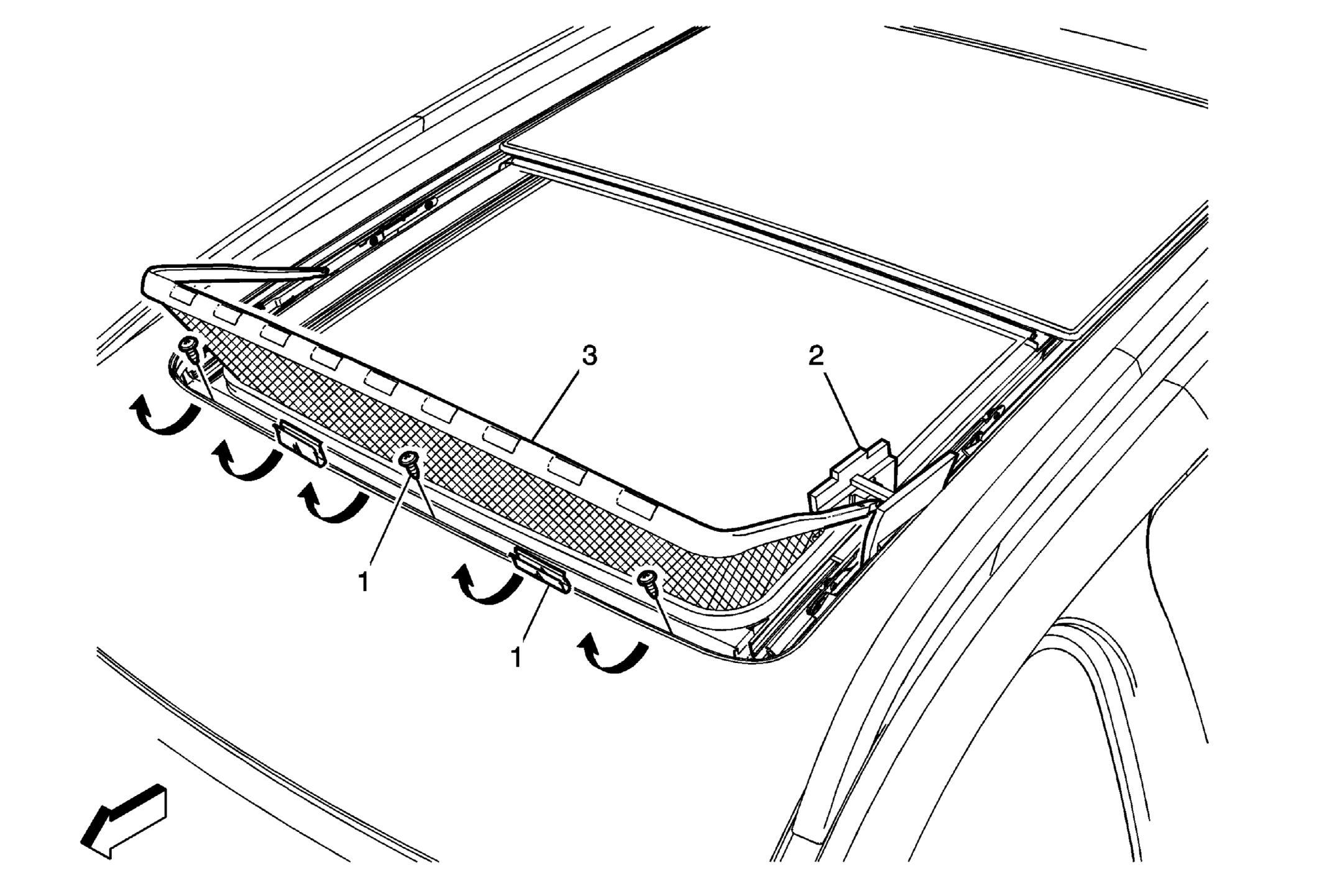

Fig 1: View Of Sunroof Air Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Air Deflector Retainer Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Open the front sunroof window. Push down on the air deflector to expose the screws. Release sunroof air deflector from the retainer clips. Tighten: 6 N.m (53 lb in)
2	Sunroof Air Deflector Bracket (Qty: 2) Procedures Rotate the entire air deflector to almost vertical position. Release the air deflector from the bracket and remove the air deflector.
3	Sunroof Air Deflector Tip: Put the air deflector arms into the brackets first then install the front part of the air deflector to the clips.

Callout

Component Name

Sunroof Air Deflector Retainer Screws (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedures

Open the front sunroof window.
Push down on the air deflector to expose the screws.
Release sunroof air deflector from the retainer clips.

Tighten: 6 N.m (53 lb in)

Sunroof Air Deflector Bracket (Qty: 2)

Procedures

Rotate the entire air deflector to almost vertical position.
Release the air deflector from the bracket and remove the air deflector.

Sunroof Air Deflector
Tip: Put the air deflector arms into the brackets first then install the front part of the air deflector to the clips.
