Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

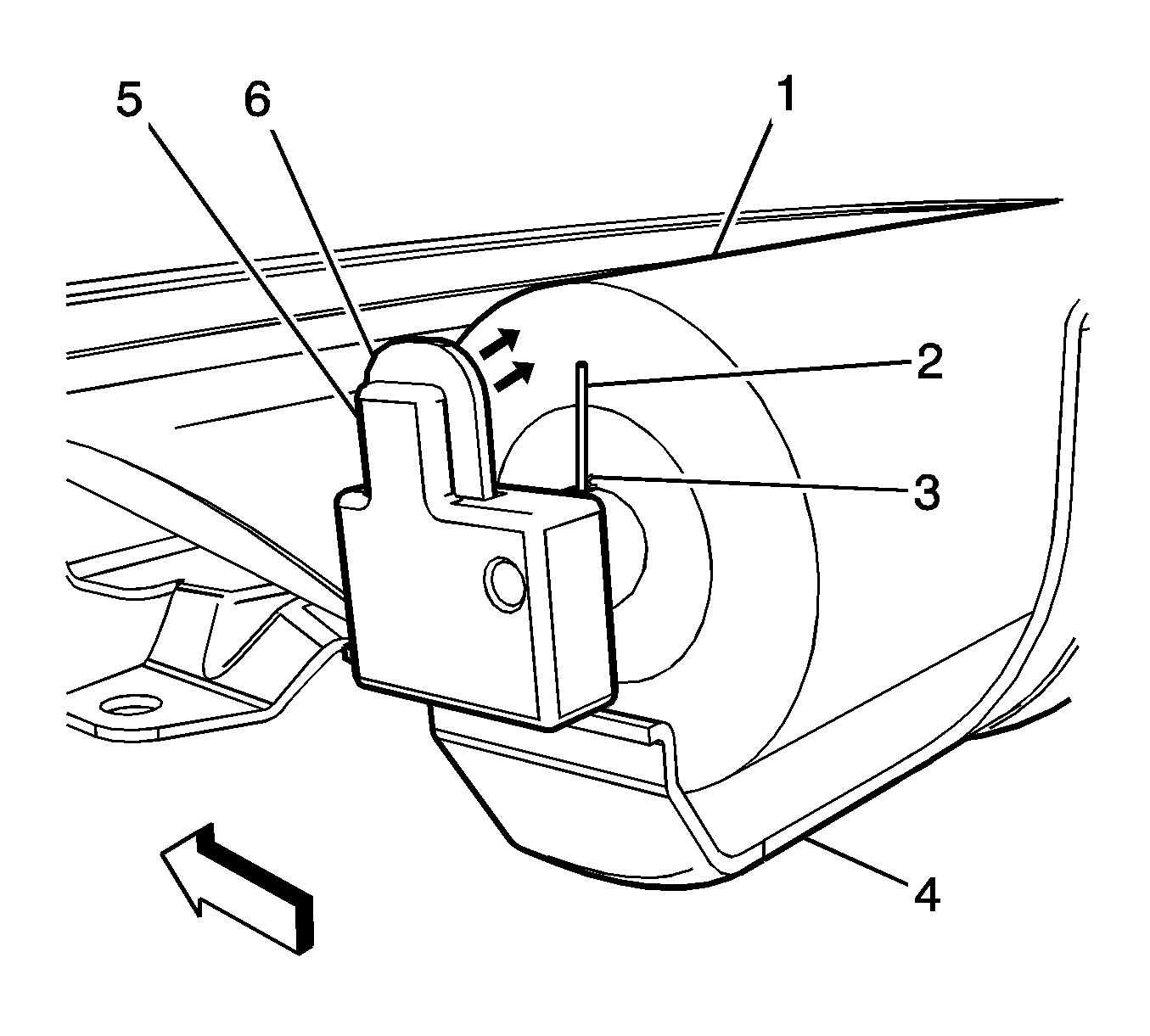

Fig 1: View Of Sunshade Cam Locking Components

Courtesy of GENERAL MOTORS CORP.

NOTE: If the sunshade spring released turn the sunshade roller end slot 16 times in the counterclockwise direction. Insert a suitable tool into the sunshade cam locking hole.

Install the sunshade to the sunshade bracket by insert the end of the sunshade (1) to the driver side sunshade bracket (2), press downward until it lock in place.

Fig 2: View Of Sunshade Bracket Assembly

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the sunshade bracket screw (1) to the passengers side of the sunshade bracket (2) and tighten to 9 N.m (80 lb in).
Remove the suitable tool from the sunshade cam locking hole.

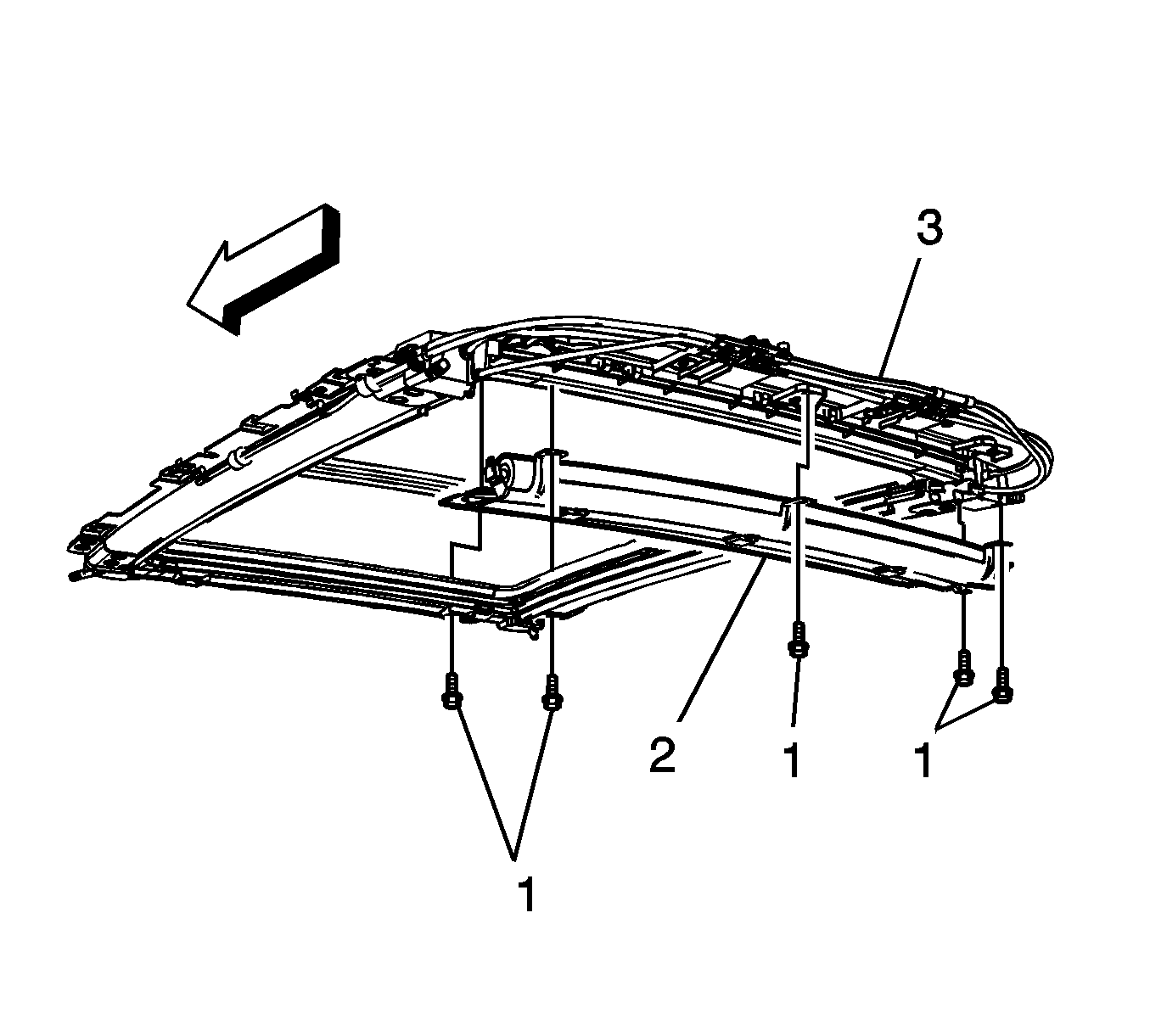

Fig 3: View Of Sunshade Bracket, Sunroof Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Install the screws (1) that retain the sunshade bracket (2) to the sunroof assembly (3) and tighten to 9 N.m (80 lb in)

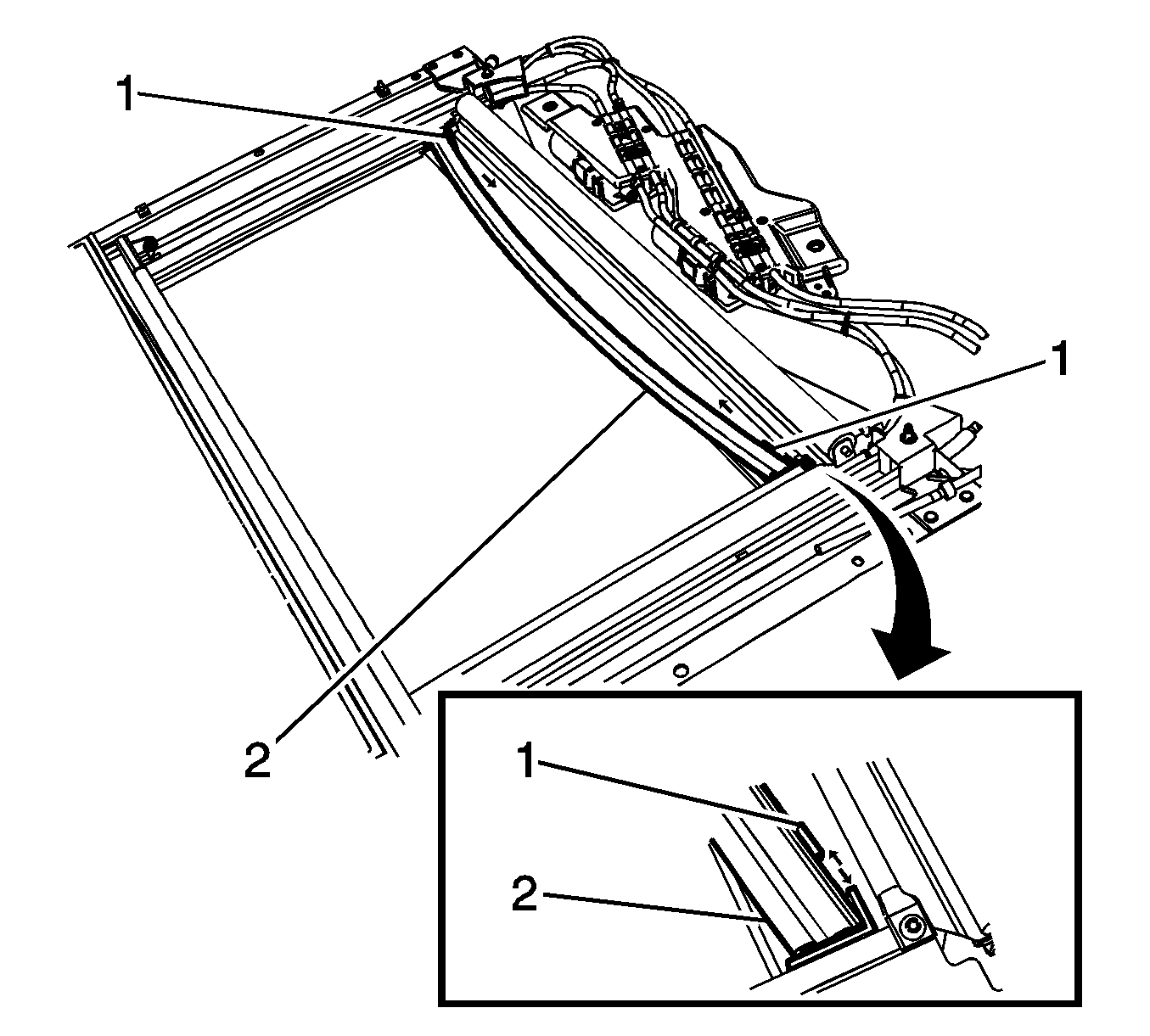

Fig 4: View of Cable Guide and Cross Bar

Courtesy of GENERAL MOTORS CORP.

Install the cable guides tabs (1) located at each corner of the sunshade, lock in place.
Install the white plastic retainers, sliding the retainer over sunshade, lock in place.
Ensure that the sunshade cam is fully seated in the sunshade bracket and the sunshade slides smoothly.
Install the sunroof window. Refer to Sunroof Window Replacement - Rear .
Install the headliner. Refer to Headlining Trim Panel Replacement (With C3U) or Headlining Trim Panel Replacement (Without C3U) .
Verify the operation of the sunshade.
