Sunroof Window Replacement - Front

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

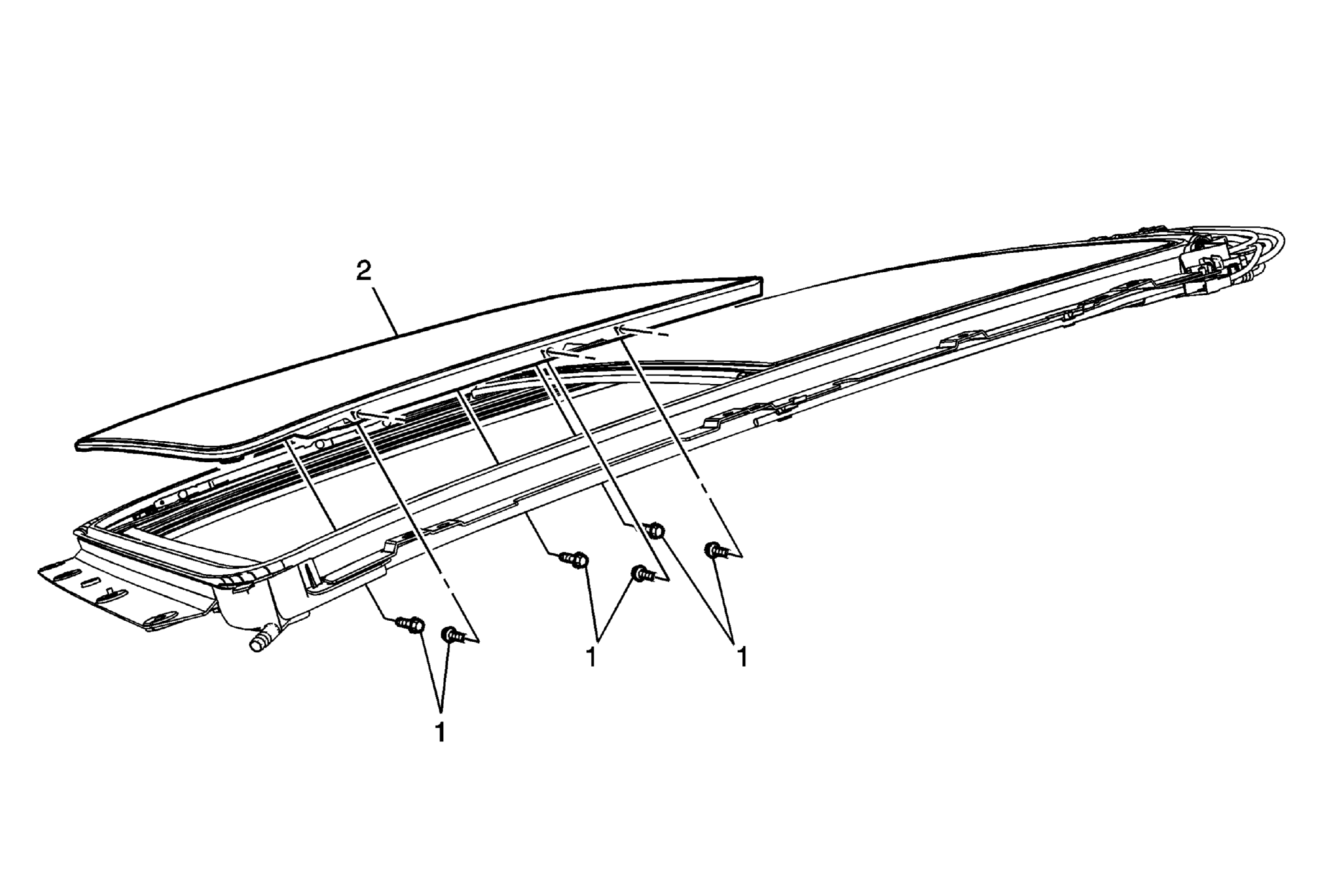

Fig 1: View Of Sunroof Window - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Window Screws (Qty: 6) CAUTION: Refer to Fastener Caution . Procedures Open the sunshade. Open the sunroof window to the vent position. Pull down on the inner seal to expose the screws on both sides of the window. Remove the sunroof window bolts, three on each side. Tighten: 4 N.m (35 lb in)
2	Sunroof Window Procedures Place the sunroof window on a soft surface. Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment . Water test the vehicle before installing the headlinder.

Callout

Component Name

Sunroof Window Screws (Qty: 6)

CAUTION: Refer to Fastener Caution .

Procedures

Open the sunshade.
Open the sunroof window to the vent position.
Pull down on the inner seal to expose the screws on both sides of the window.
Remove the sunroof window bolts, three on each side.

Tighten: 4 N.m (35 lb in)

Sunroof Window

Procedures

Place the sunroof window on a soft surface.
Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
Water test the vehicle before installing the headlinder.
