Headlamp Leveling Rear Suspension Height Sensor Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

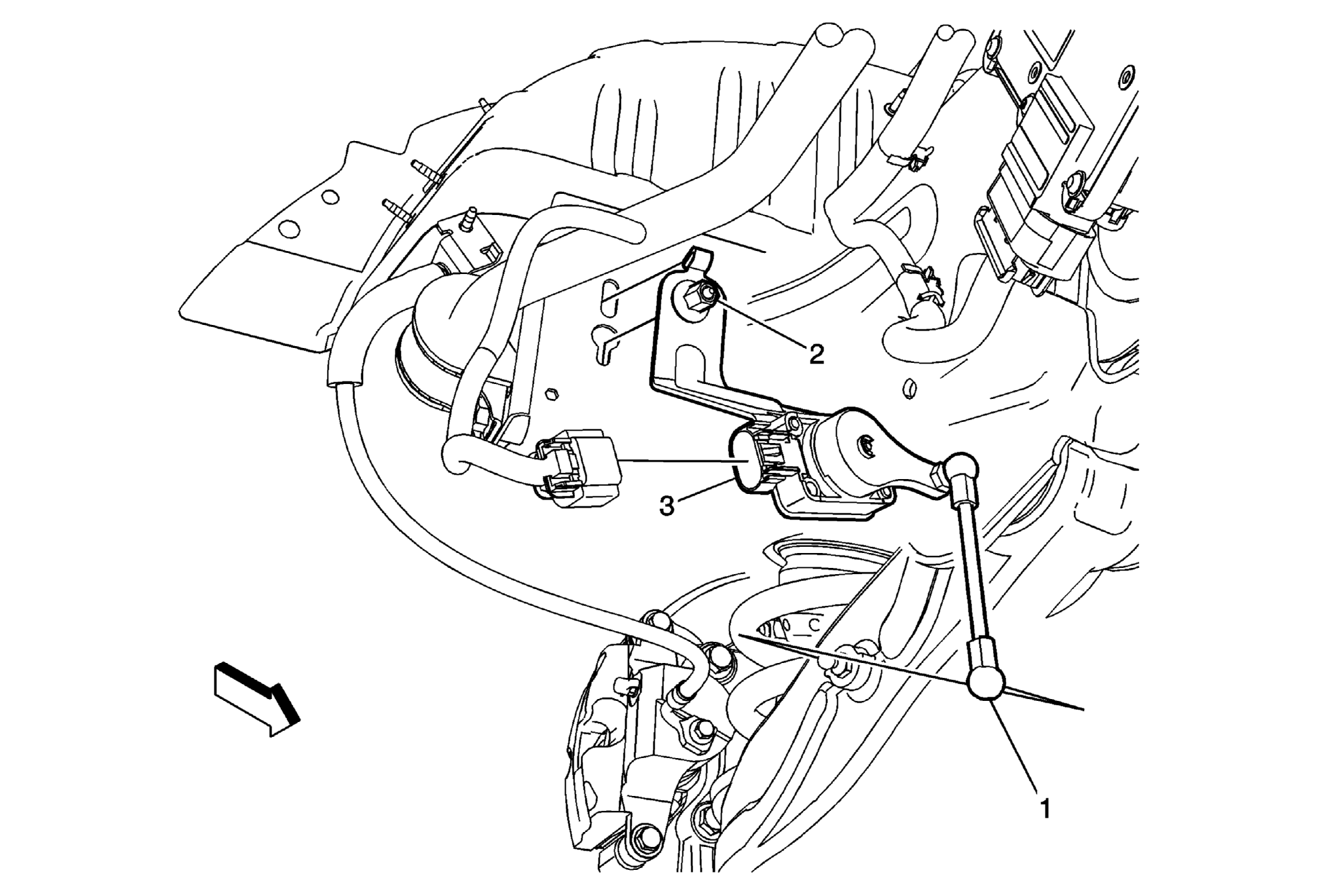

Fig 1: Identifying Headlamp Leveling Rear Suspension Height Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the headlamp leveling suspension height sensor electrical connector.
1	Headlamp Leveling Rear Suspension Height Sensor Socket Procedure: Disconnect the headlamp leveling rear suspension height sensor socket from the ball stud.
2	Headlamp Leveling Rear Suspension Height Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
3	Headlamp Leveling Rear Suspension Height Sensor
