Front Seat Belt Buckle Replacement
Front Seat Belt Buckle Replacement

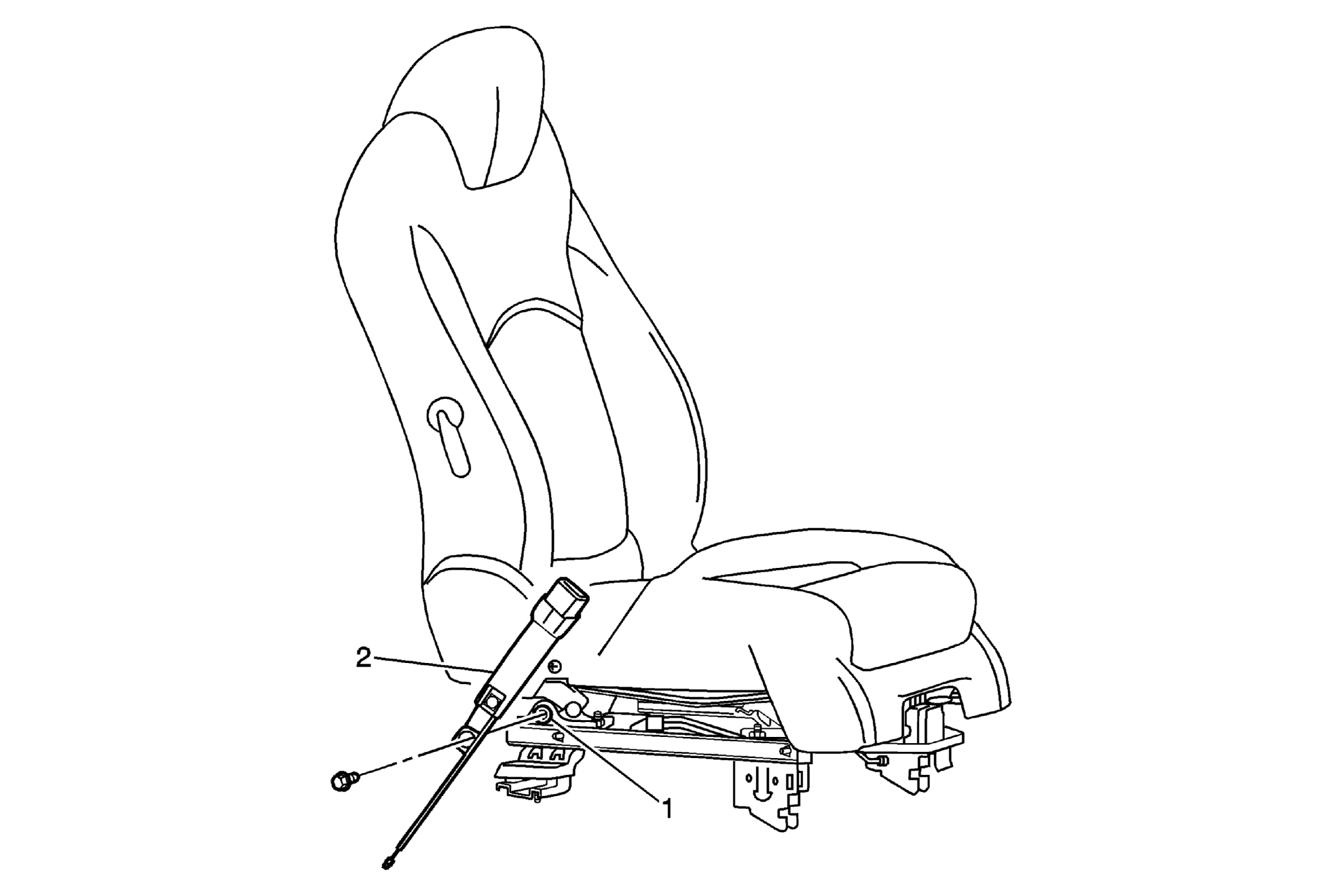

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front seat replacement. Refer to Bucket Seat Replacement . |
|
| 1 | Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 52 N.m (38 lb ft) |
| 2 | Seat (Buckle Side) Belt Assembly Procedure Disconnect the electrical connector. |
