Installation Procedure

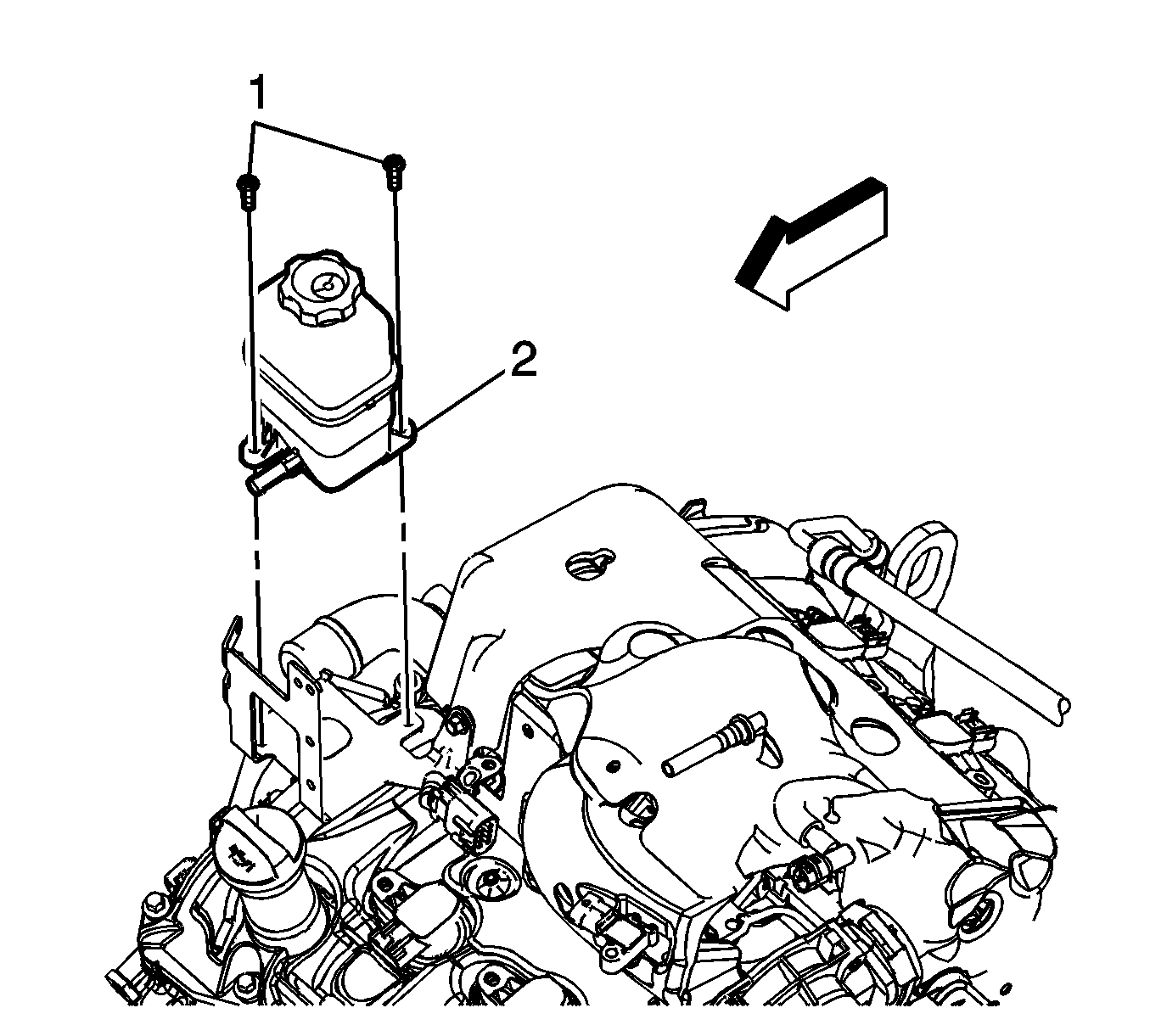

    Fig 1: Locating Power Steering Fluid Reservoir & Bolts
    GM1856562Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the remote power steering fluid reservoir (2).
  2. Install the remote power steering fluid reservoir bolts (1) and tighten to 9 (80 lb in).
    3. Fig 2: View Of Power Steering Fluid Reservoir Outlet Hose & Clamp
    GM1856009Courtesy of GENERAL MOTORS COMPANY
  3. Connect the power steering fluid reservoir outlet hose and clamp (1).
    4. Fig 3: Identifying Power Steering Reservoir Inlet Hose & Clamp
    GM1856010Courtesy of GENERAL MOTORS COMPANY
  4. Connect the power steering reservoir inlet hose and clamp (1).
  5. Clean all excess fluid from the vehicle and remove the drain pans.
  6. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
  7. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
