Steering Wheel Replacement

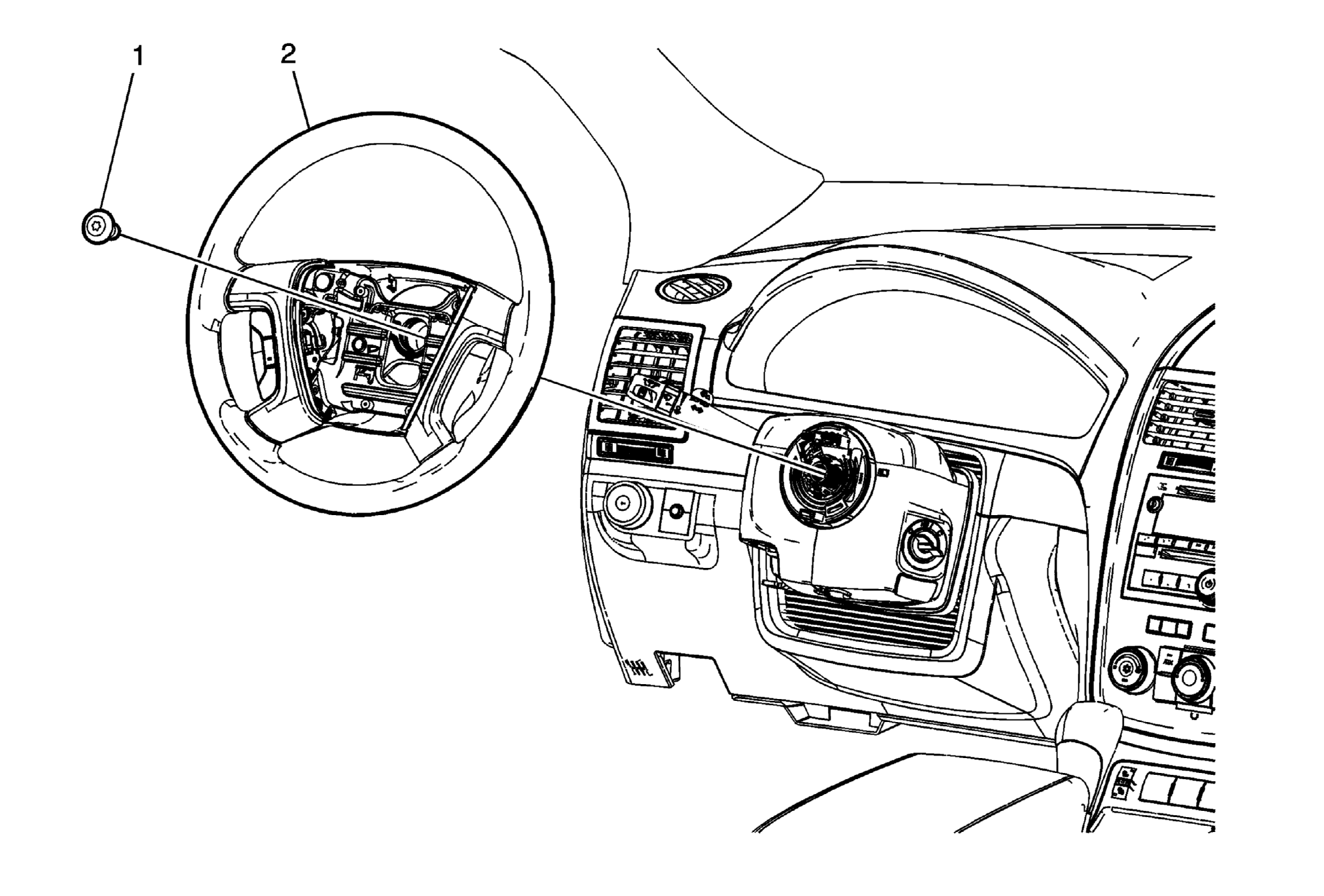

Fig 1: Identifying Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Bolt CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Steering Wheel Procedure Disconnect all electrical connectors as needed. Remove the steering wheel.

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Bolt

CAUTION:

Tighten
50 N.m (37 lb ft)

Steering Wheel

Procedure
