Auto Trans Service Seal Kit 24256112
NOTE:

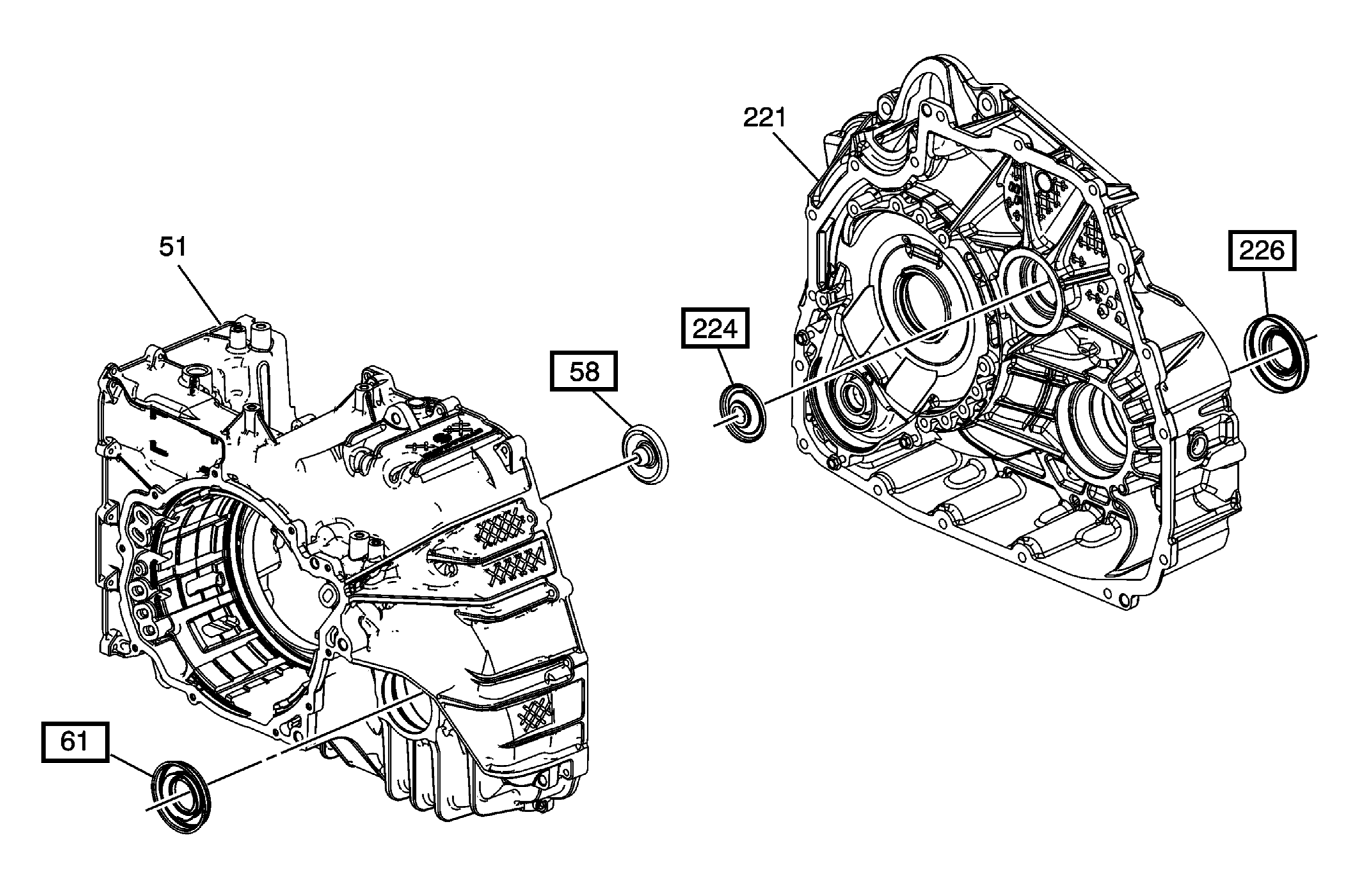

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
A/Trans Service Seal Kit 24256112
| Callout | Quantity | Component Name |
|---|---|---|
| 58 | 1 | Front Differential Drive Pinion Gear Lube Dam |
| 61 | 1 | Front Wheel Drive Shaft Oil Seal Assembly |
| 224 | 1 | Front Differential Drive Pinion Gear Lube Dam |
| 226 | 1 | Front Wheel Drive Shaft Oil (RHS) Seal Assembly |
