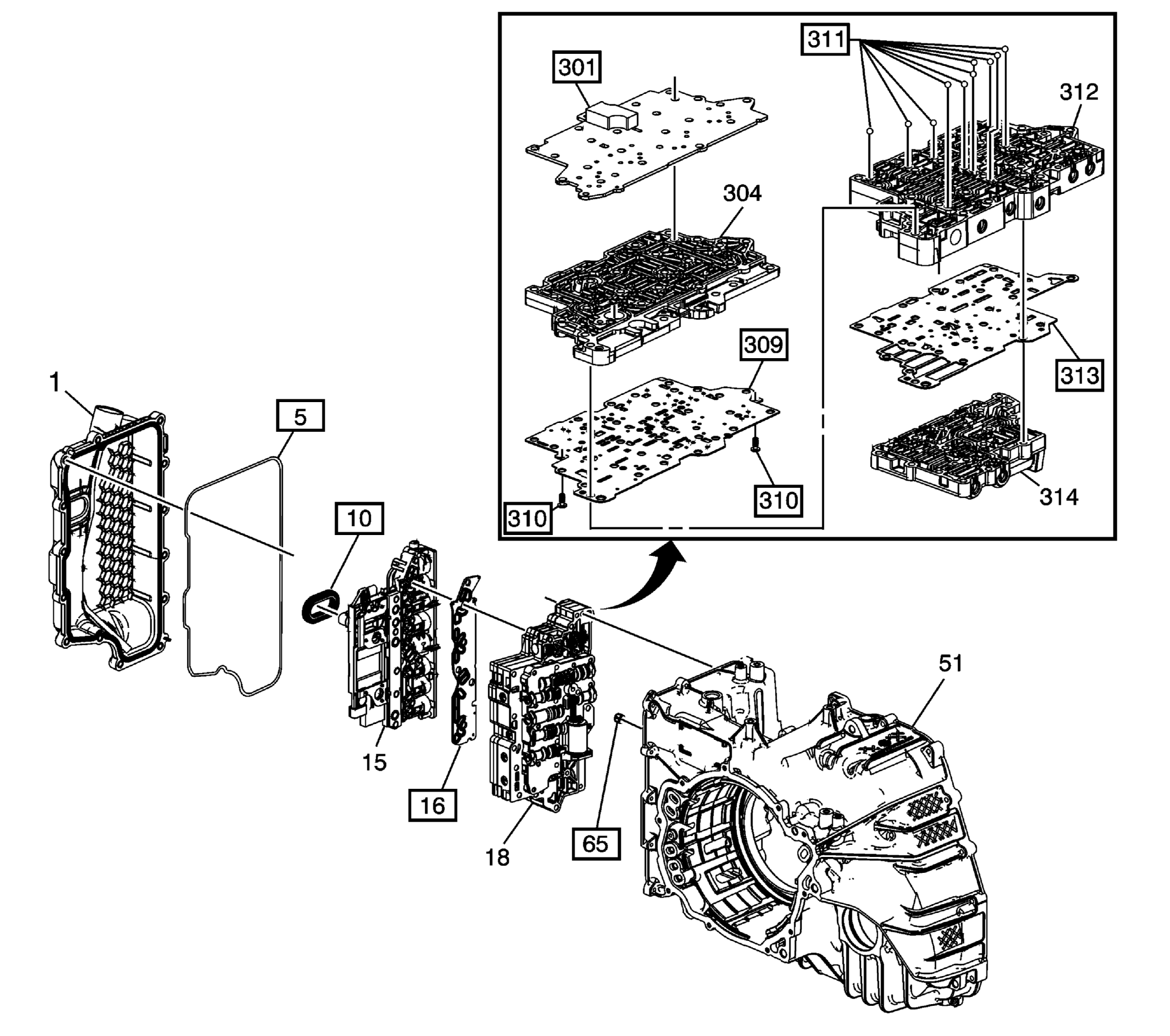

Control Valve Body Kit 24248118
Control Valve Body Kit 24248118
| Callout | Quantity | Component Name |
|---|---|---|
| 5 | 1 | Control Valve Body Cover Assembly Gasket |
| 10 | 1 | Control Valve Body Cover Wiring Connector Hole Seal |
| 16 | 1 | Control Solenoid (w/Body and TCM) Filter Plate Assembly |
| 65 | 1 | 1-2-3-4 Clutch Fluid Passage Seal |
| 301 | 1 | Control Valve Channel Upper Plate Assembly |
| 309 | 1 | Control Valve Upper Body Spacer Plate Assembly |
| 310 | 2 | Control Valve Upper Body Spacer Plate Retainer |
| 311 | 10 | Control Valve Body Ball Check Valve |
| 313 | 1 | Control Valve Lower Body Spacer Plate Assembly |
