Liftgate Release Switch Replacement

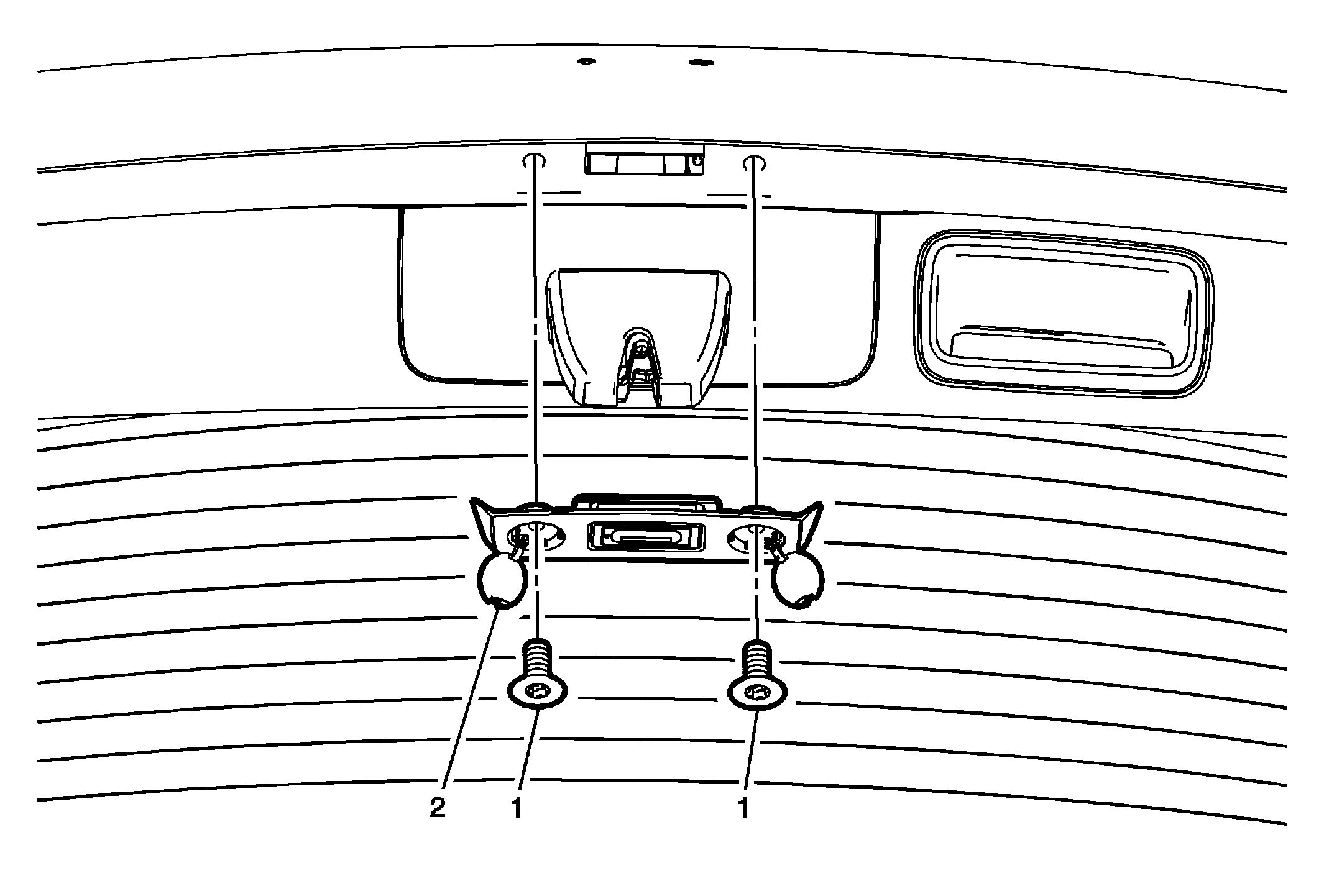

Fig 1: Liftgate Release Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement .
1	Liftgate Release Switch Screw CAUTION: Refer to Fastener Caution . Procedure Open the screw cover caps. Tighten 10 N.m (89 lb in)
2	Liftgate Release Switch Procedure Disconnect the electrical connector.
