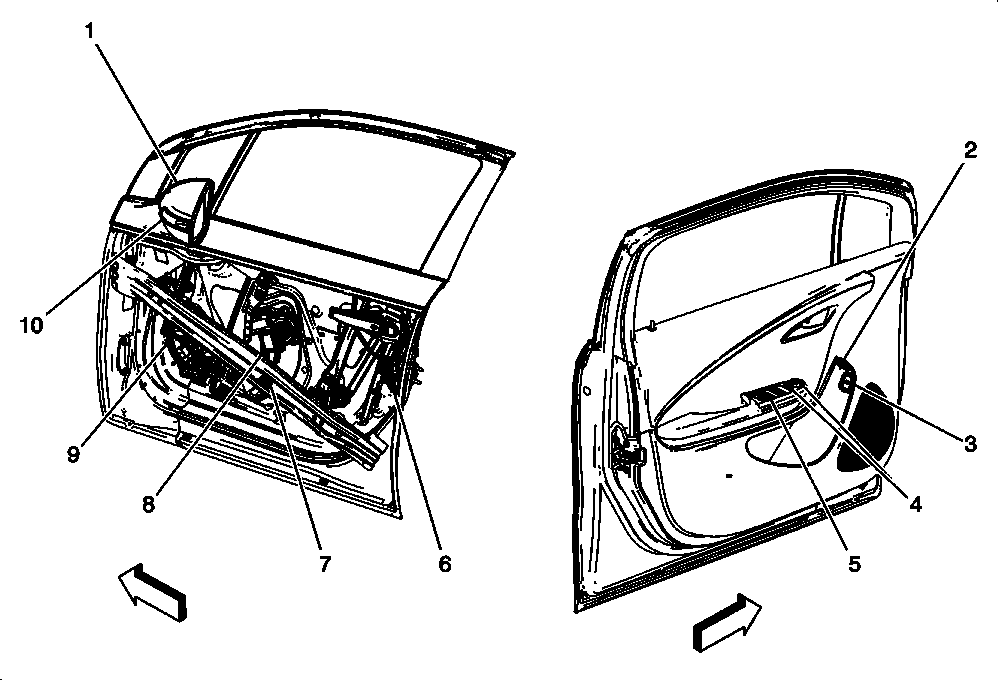

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| A9A Outside Rearview Mirror - Driver | 1 |
| S117 Refuel Request Switch | 2 |
| S113 Charge Port Door Open Request Switch | 3 |
| S52 Outside Rearview Mirror Switch | 4 |
| S79D Window Switch - Driver | 5 |
| A23D Door Latch Assembly - Driver | 6 |
| B63LF Side Impact Sensor - Left Front | 7 |
| M74D Window Motor - Driver | 8 |
| P19AG Speaker - Left Front Door | 9 |
| E4Y Turn Signal Repeater Lamp - Left | 10 |
