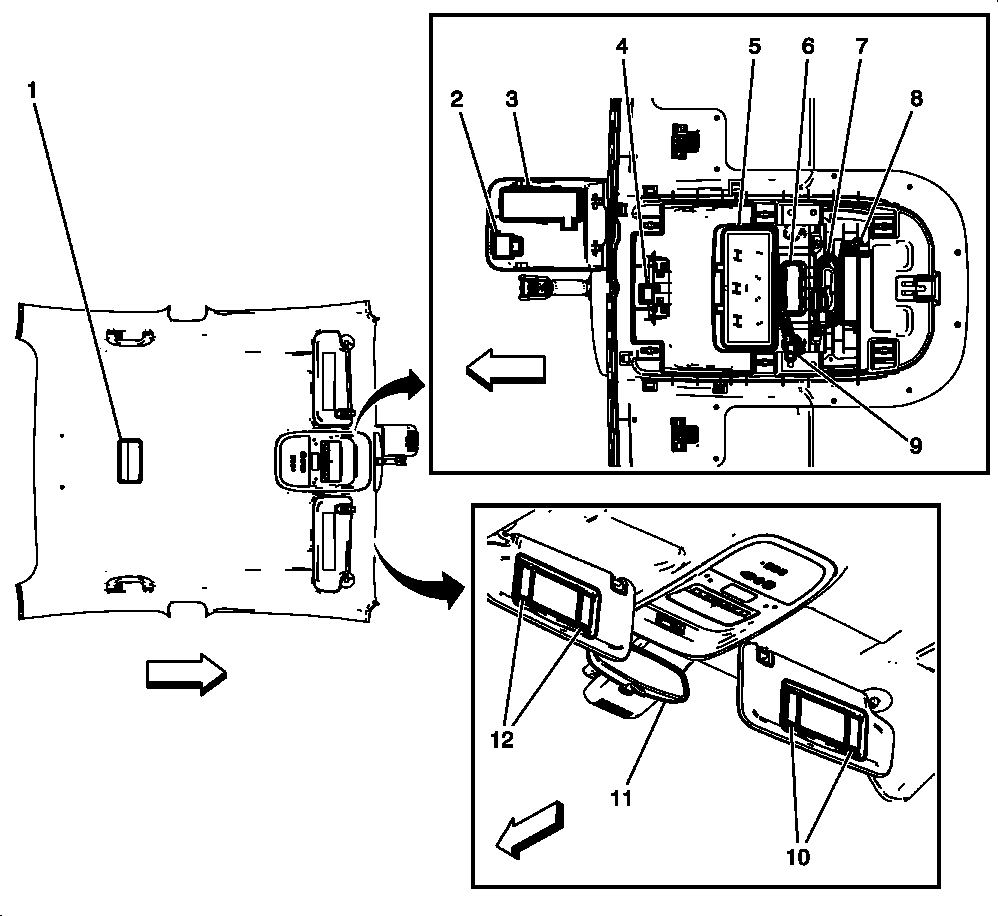

Headliner Components
Headliner Components
| Component Name | Callout |
|---|---|
| E36AH Dome Lamp | 1 |
| B160 Windshield Temperature and Inside Moisture Sensor | 2 |
| K77 Remote Control Door Lock Receiver | 3 |
| P14 Passenger Air Bag Disable Indicator | 4 |
| E37F Dome/Reading Lamps - Front | 5 |
| S48B Multi-Function Switch - Overhead Console | 6 |
| S51 Telematics Button Assembly | 7 |
| S25 Garage Door Opener | 8 |
| B24 Cellular Phone Microphone | 9 |
| E31R Sunshade Mirror Lamp - Right | 10 |
| A10 Inside Rearview Mirror | 11 |
| E31L Sunshade Mirror Lamp - Left | 12 |
