Engine Coolant Temperature Sensor Replacement

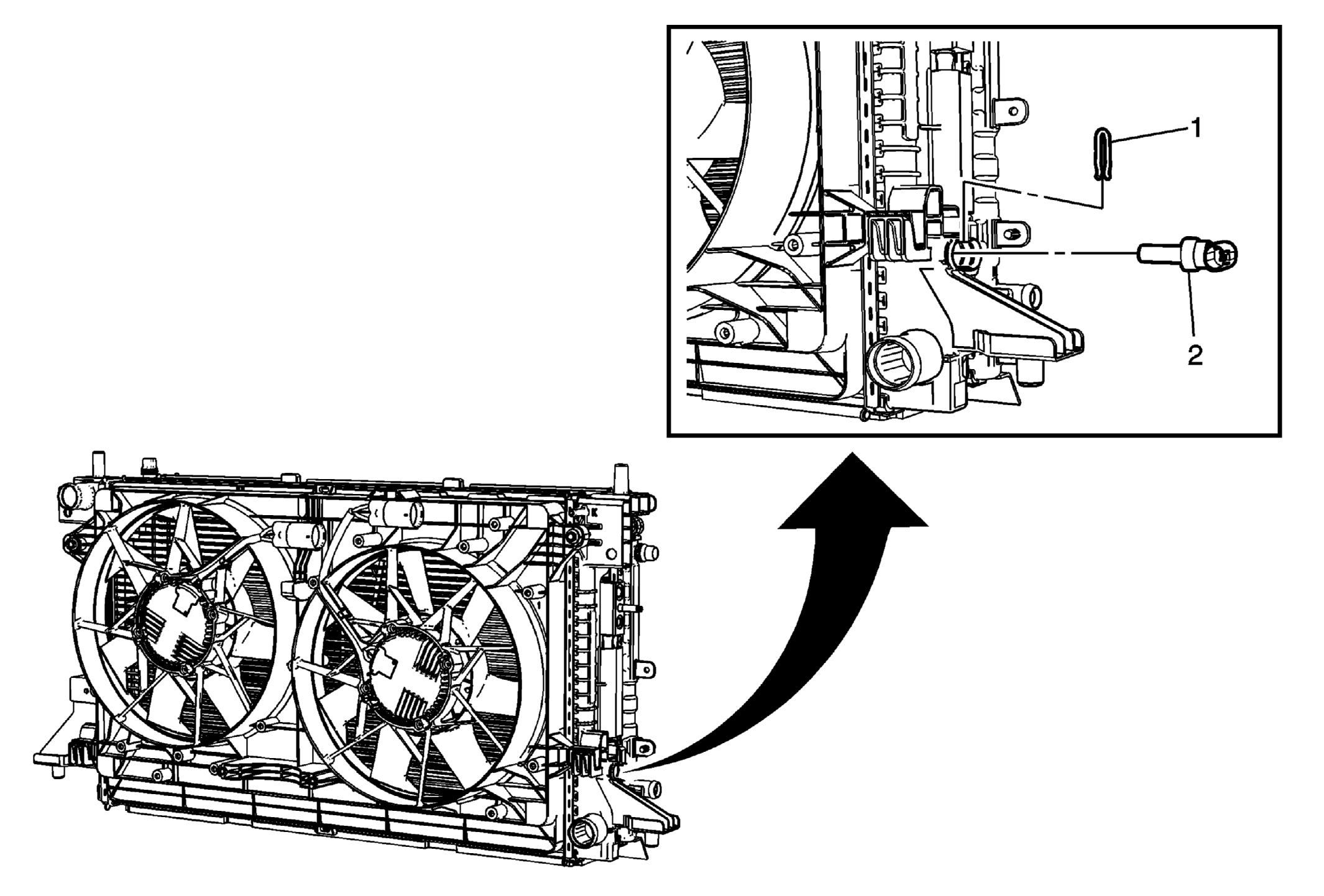

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the coolant. Refer to Cooling System Draining and Filling Remove the front wheelhouse front liner on the passenger side. Refer to Front Wheelhouse Front Liner Replacement Disconnect the electrical connector from the coolant temperature sensor.
1	Engine Coolant Temperature Sensor Retaining Clip.
2	Engine Coolant Temperature Sensor

Callout

Component Name

Preliminary Procedure

Drain the coolant. Refer to Cooling System Draining and Filling
Remove the front wheelhouse front liner on the passenger side. Refer to Front Wheelhouse Front Liner Replacement
Disconnect the electrical connector from the coolant temperature sensor.

Engine Coolant Temperature Sensor Retaining Clip.

Engine Coolant Temperature Sensor
