Installation Procedure

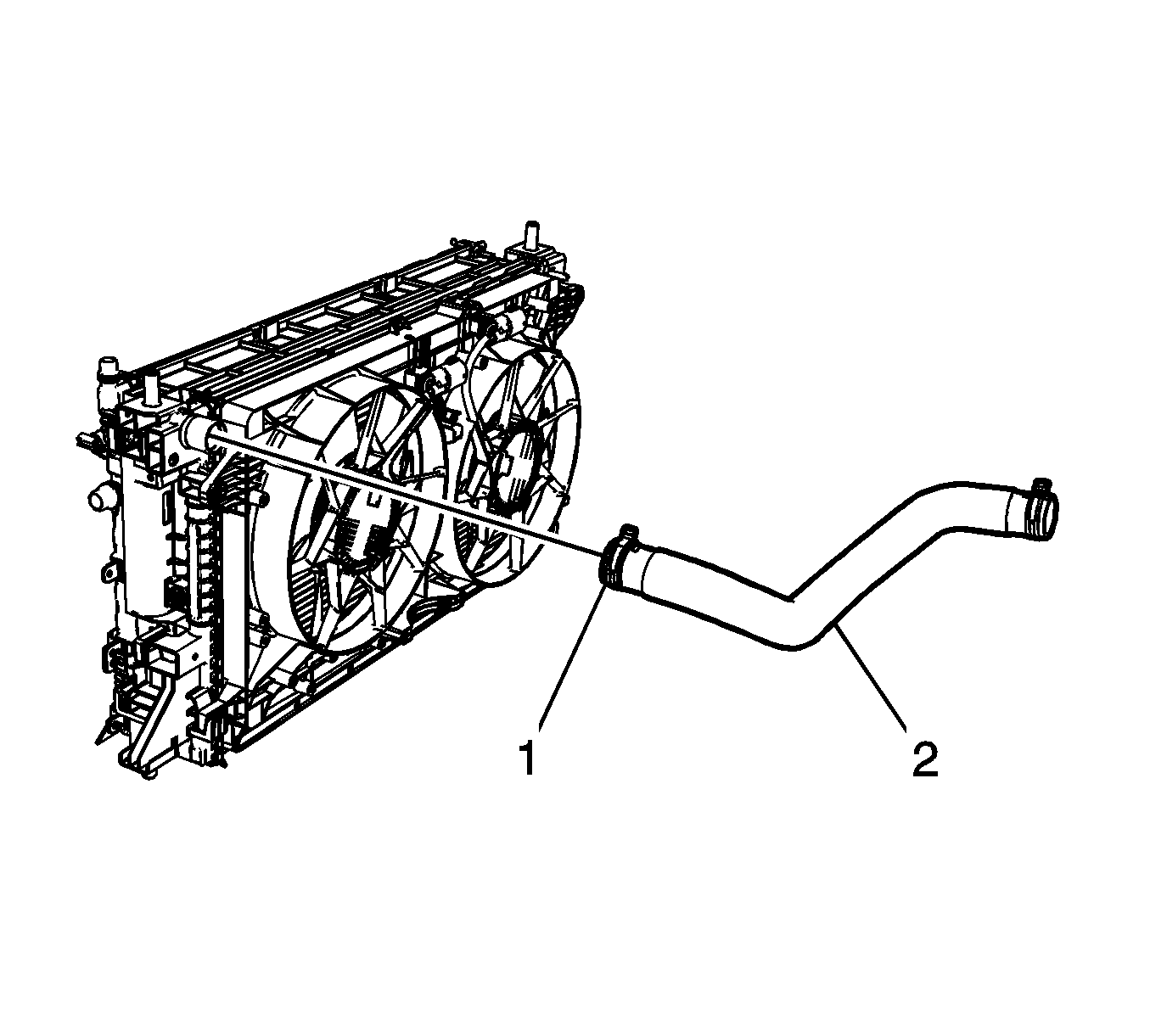

    Fig 1: Radiator Inlet Hose And Radiator
    GM2375982Courtesy of GENERAL MOTORS COMPANY
  1. Install the radiator inlet hose to the vehicle.
  2. Install the radiator inlet hose (2) to the radiator.
  3. Install the radiator inlet hose clamp (1) at radiator using BO-38185  Hose Clamp Pliers.

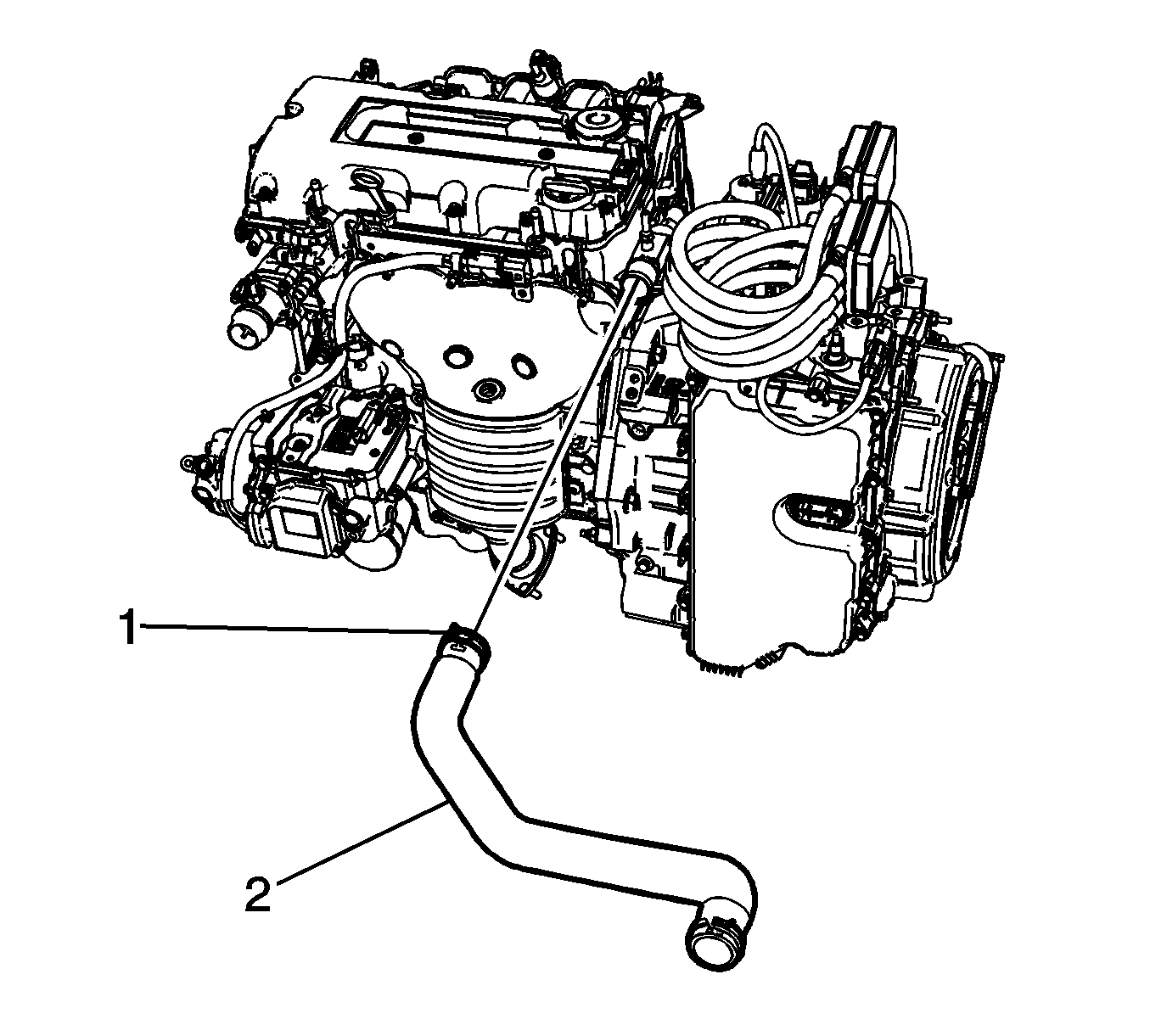

    4. Fig 2: Radiator Inlet Hose And Clamp
    GM2375983Courtesy of GENERAL MOTORS COMPANY
  4. Install the radiator inlet hose (2) to the engine.
  5. Install the radiator inlet hose clamp (1) at engine using BO-38185  Hose Clamp Pliers.
  6. Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement
  7. Fill the cooling system. Refer to Cooling System Draining and Filling
