Installation Procedure

  1. Clean the sealing surfaces.

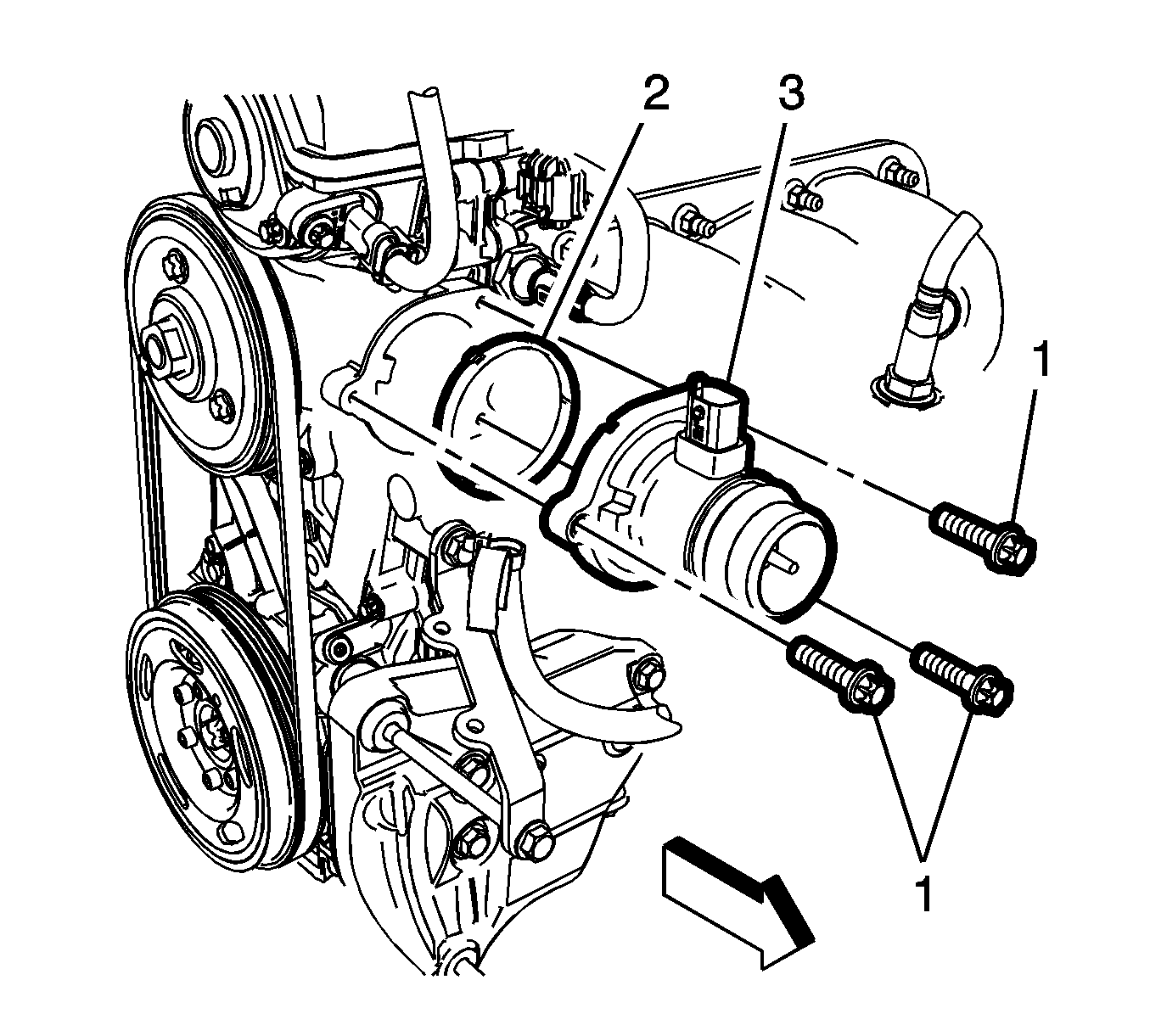

    2. Fig 1: Water Inlet Pipe And Bolts
    GM2414083Courtesy of GENERAL MOTORS COMPANY
  2. Install the water inlet pipe (3) and seal (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the water inlet pipe bolts (1) to 8 N.m (71 lb in).

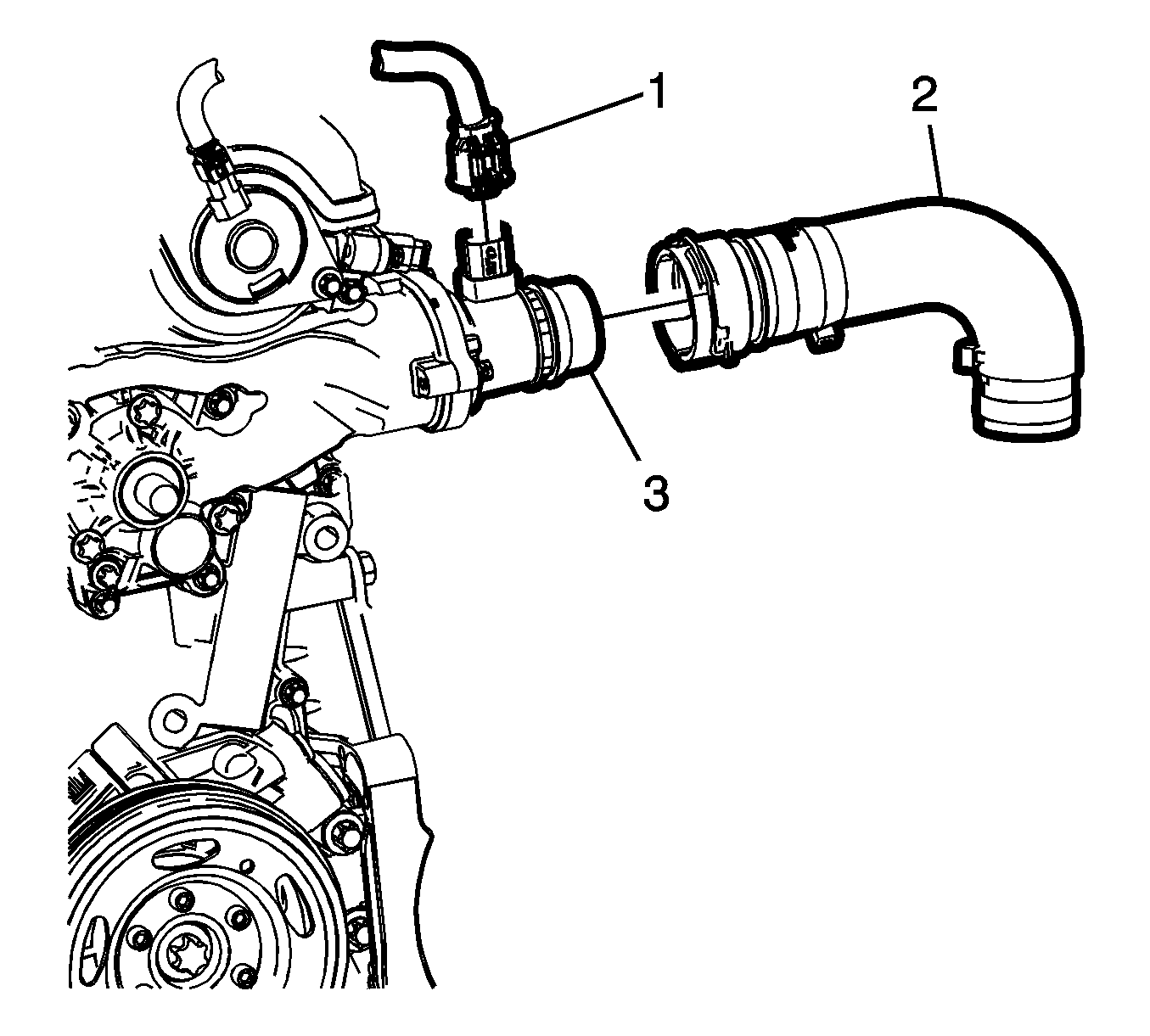

    4. Fig 2: Radiator Inlet Hose, Engine Coolant Temperature Sensor Connector And Water Inlet Pipe
    GM2414079Courtesy of GENERAL MOTORS COMPANY
  4. Connect the engine coolant temperature sensor (1) and the radiator inlet hose (2).
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  6. Fill up the coolant fluid. Refer to Cooling System Draining and Filling .
  7. Start the engine and check for coolant leaks.
