Exhaust Pipe Heat Shield Replacement (Front)

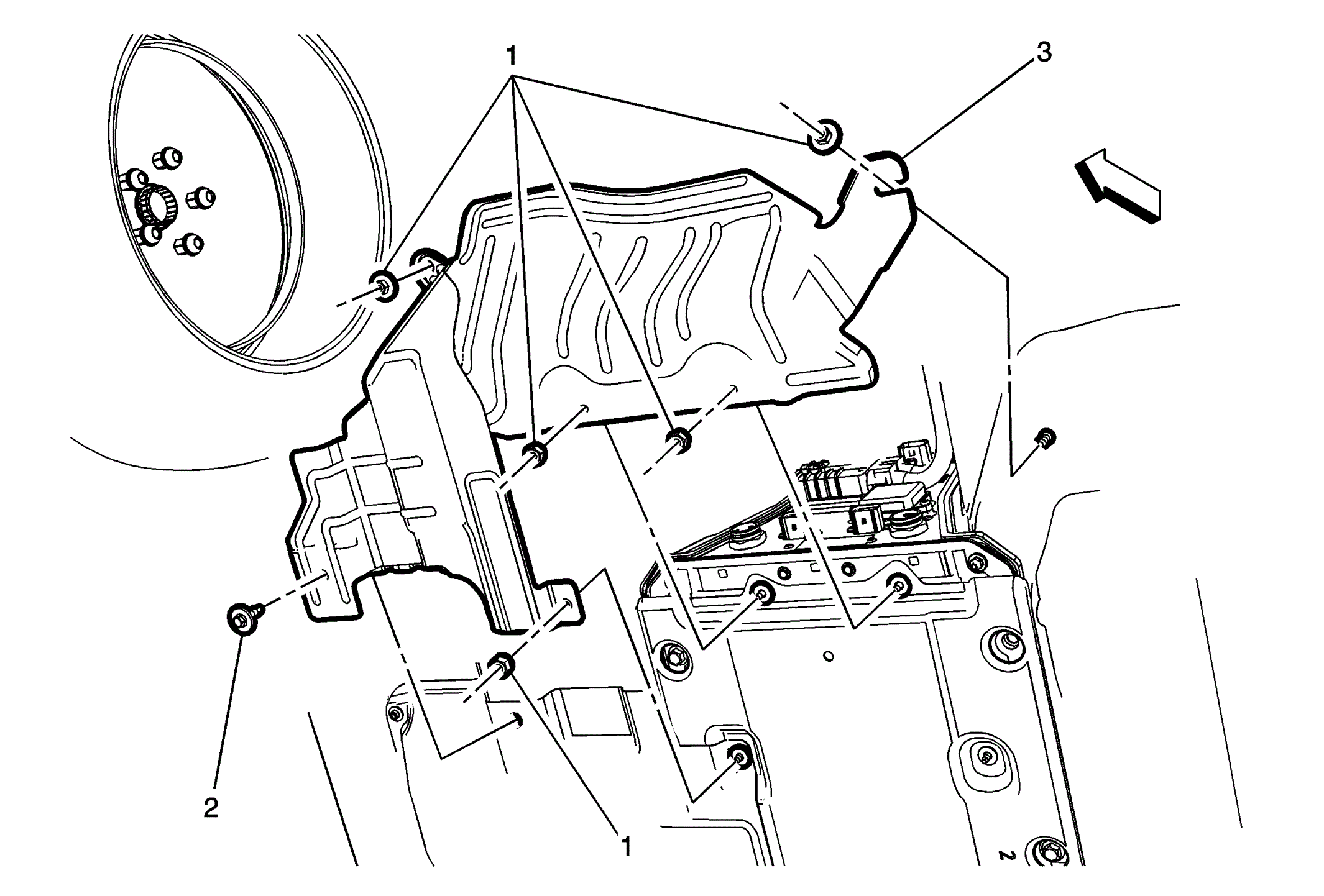

Fig 1: Exhaust Pipe Heat Shield (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death. WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Exhaust Pipe Heat Shield Nut (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Exhaust Pipe Heat Shield Screw Tighten 9 N.m (80 lb in)
3	Front Exhaust Pipe Heat Shield
