Accessory Drive Components

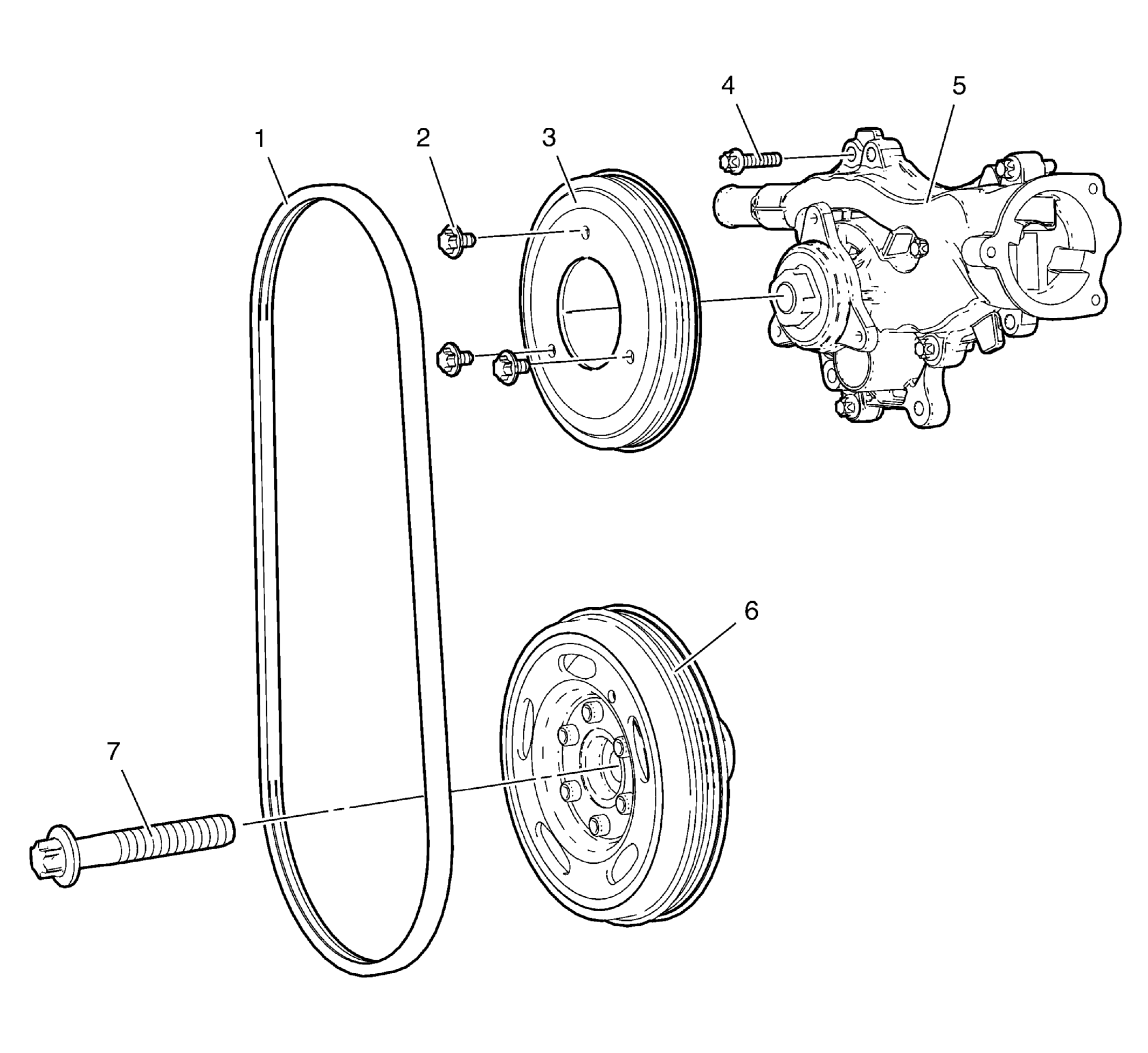

Fig 1: Accessory Drive Components

GM2371613

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Water Pump Belt
2	Water Pump Pulley Bolt
3	Water Pump Pulley
4	Water Pump Bolt
5	Water Pump
6	Crankshaft Balancer
7	Crankshaft Balancer Bolt
