Air Cleaner Outlet Duct Replacement

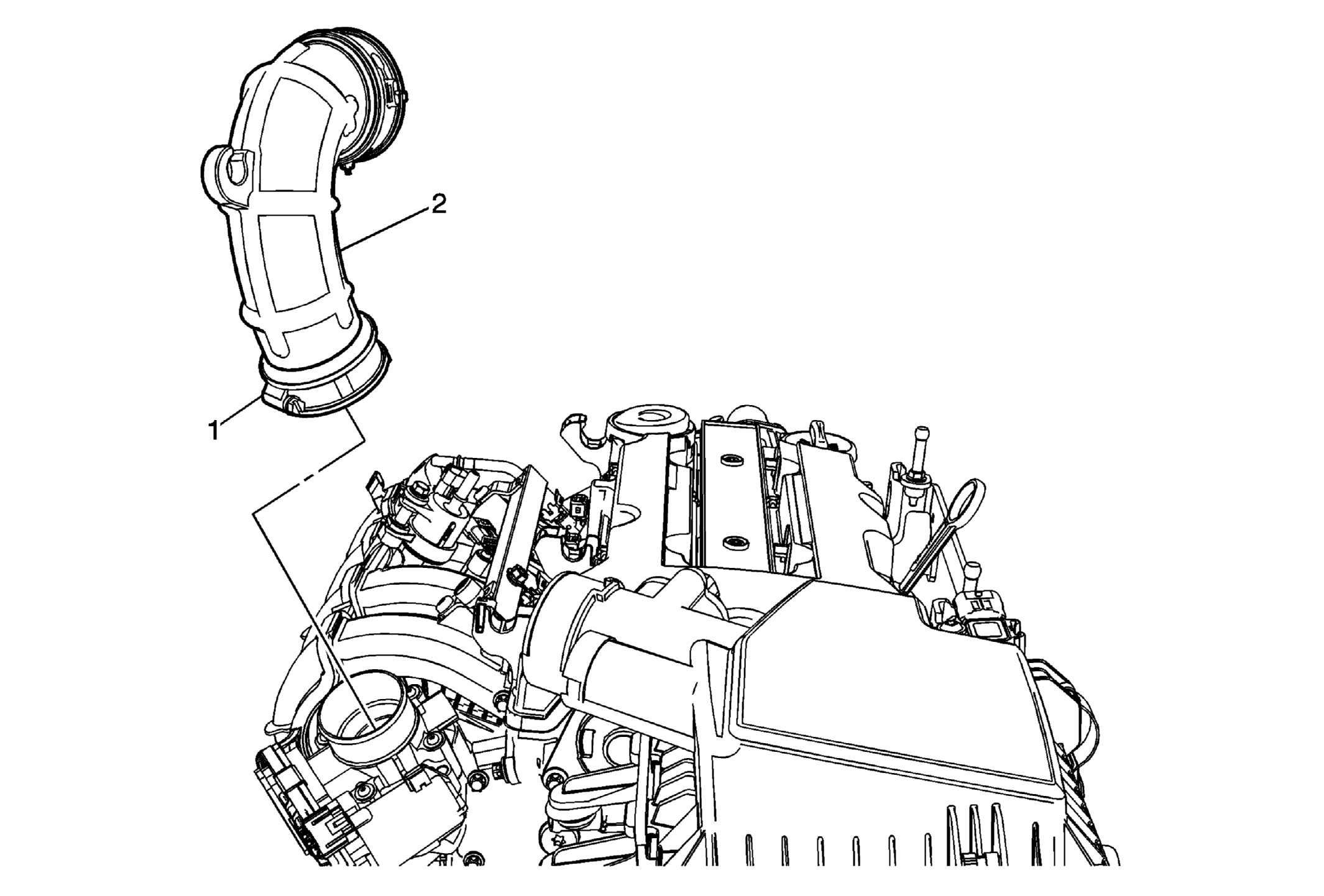

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Replacement

Callout	Component Name
Preliminary Procedure  Remove the air cleaner resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Air Cleaner Outlet Duct Clamp CAUTION: Refer to Fastener Caution .
2	Air Cleaner Outlet Duct
