Engine Coolant Temperature Sensor Replacement (Water Outlet)

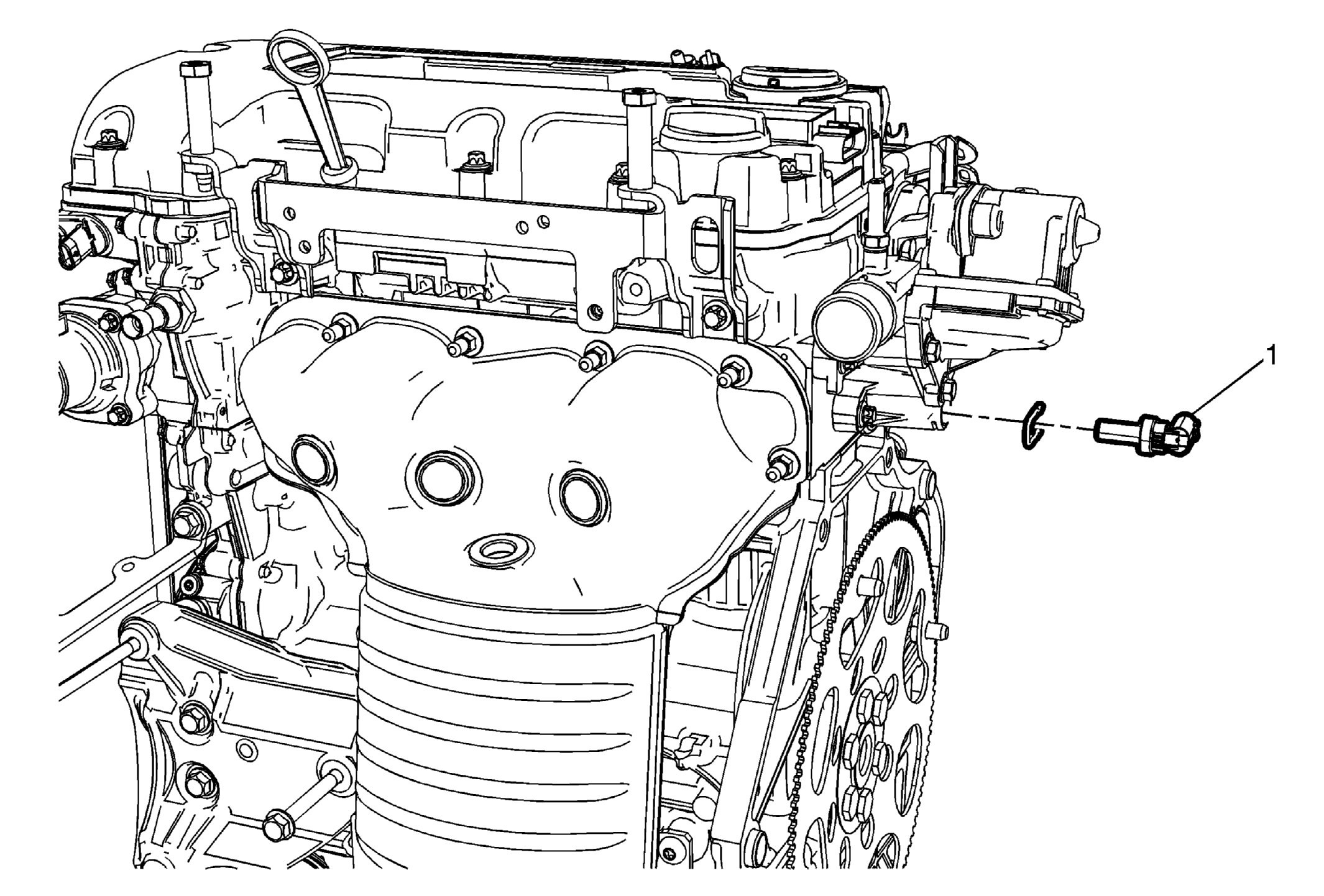

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Partially drain the cooling system. Refer to Cooling System Draining and Filling .
1	Engine Coolant Temperature Sensor Procedure Disconnect the electrical connector. Remove the retaining clip.

Callout

Component Name

Preliminary Procedures
Partially drain the cooling system. Refer to Cooling System Draining and Filling .

Engine Coolant Temperature Sensor

Procedure
