Fuel Injector Replacement
Fuel Injector Replacement

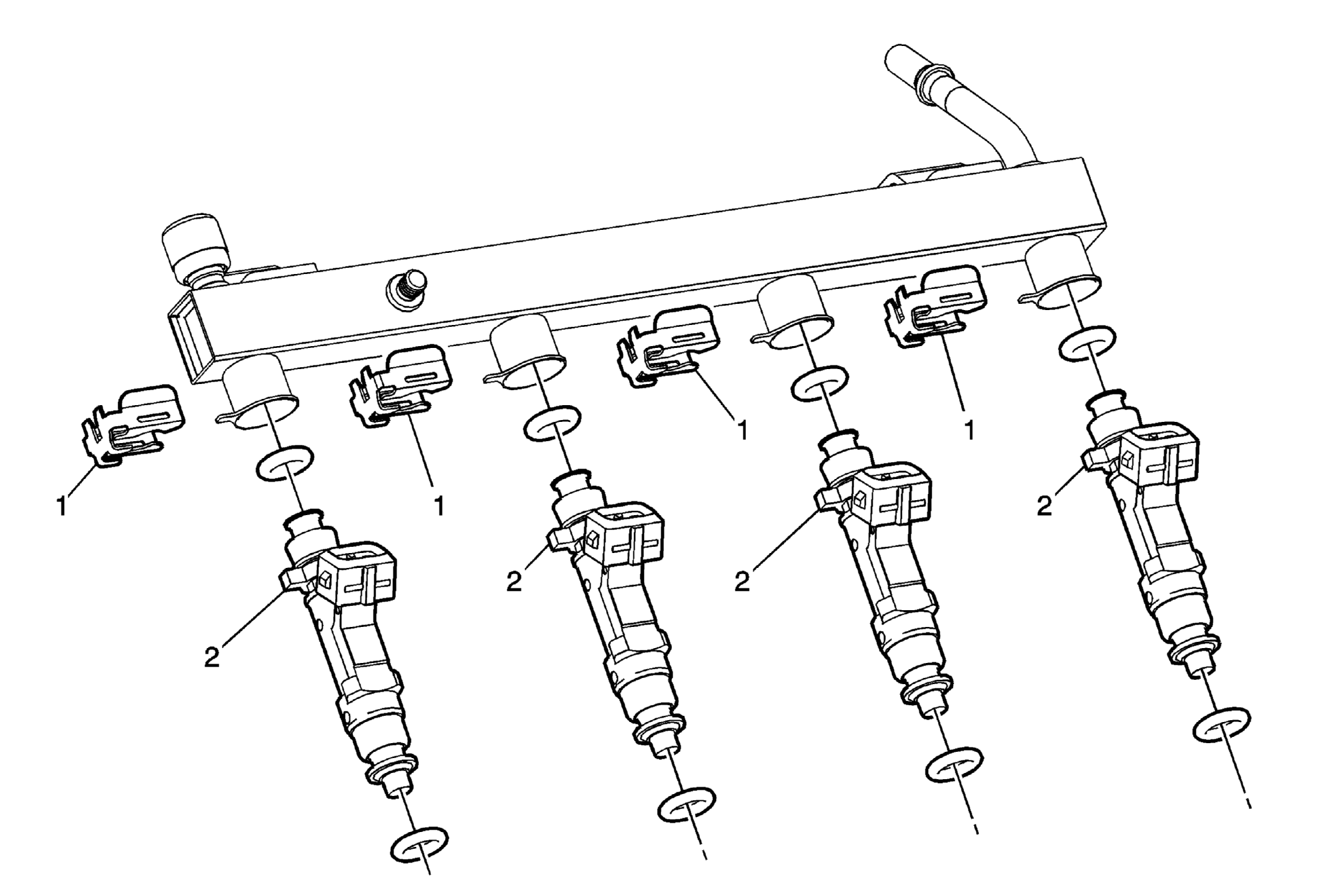

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement . |
|
| 1 | Fuel Injector Clip (Qty: 4) |
| 2 | Fuel Injector (Qty: 4) Procedure Use New fuel injector O-rings. |
