Fuel Level Sensor Replacement

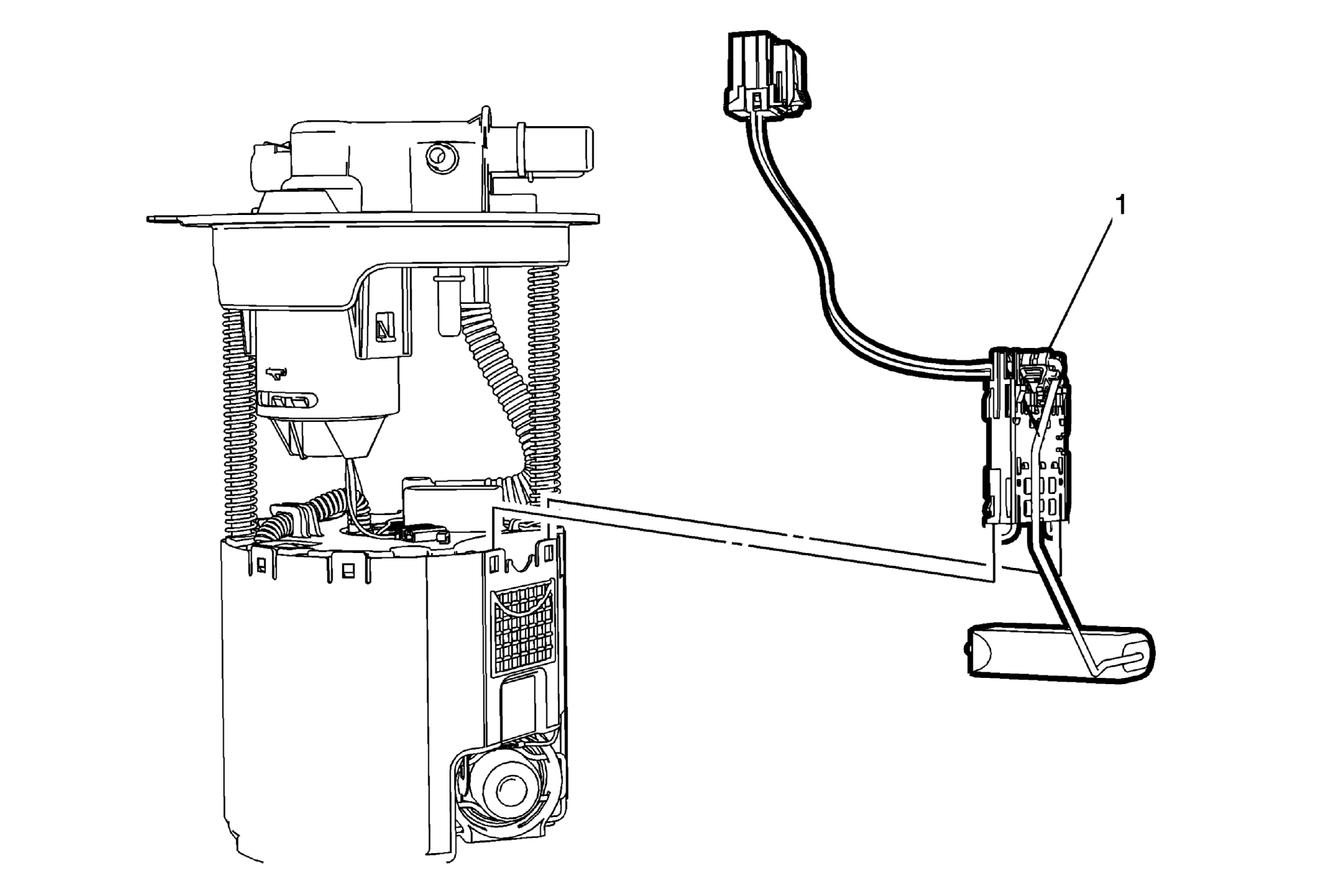

Fig 1: Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
1	Fuel Level Sensor Procedure Release the retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .

Fuel Level Sensor

Procedure
