Fuel Pressure Sensor Replacement - Fuel Feed Pipe
Fuel Pressure Sensor Replacement - Fuel Feed Pipe

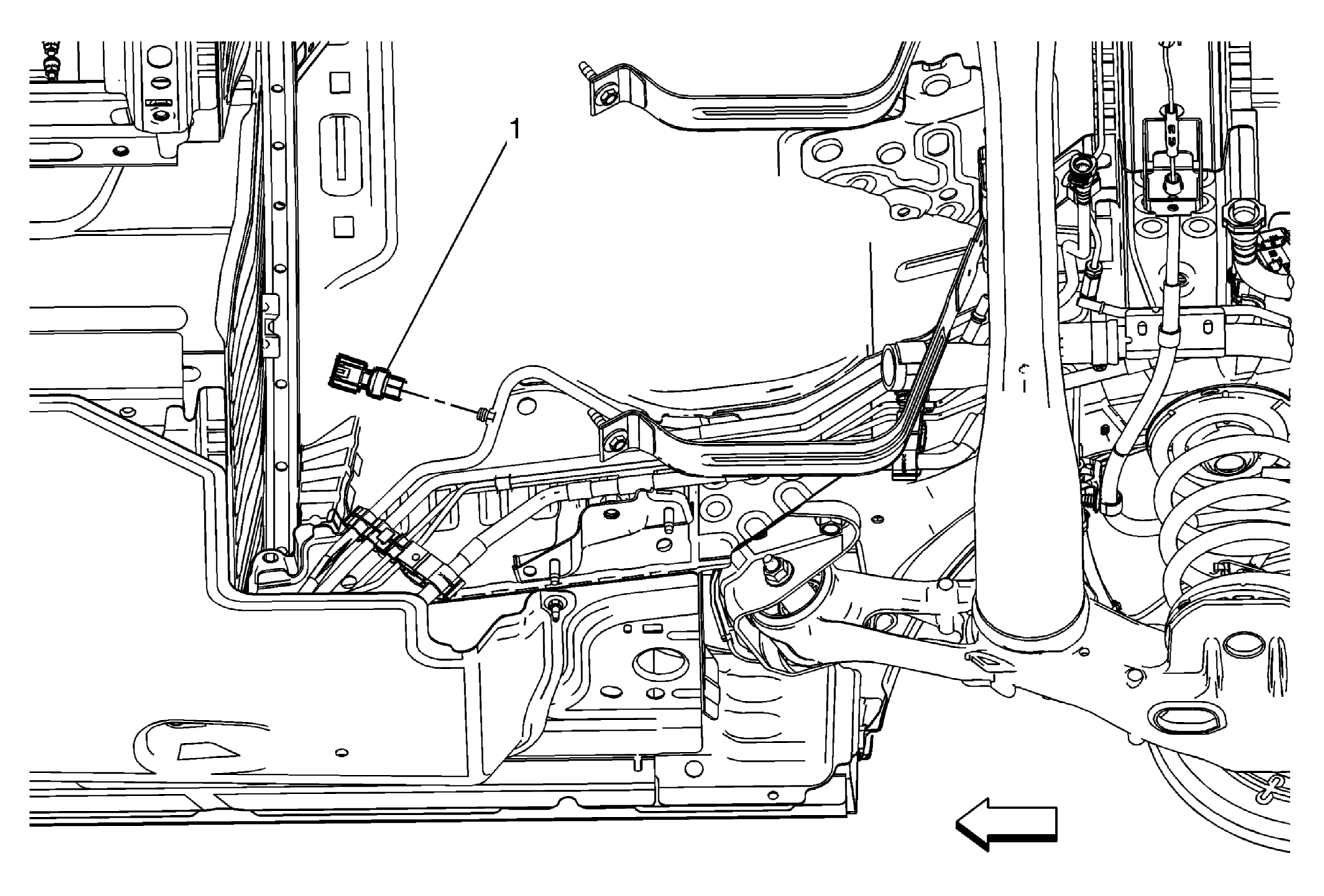

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the drive motor battery. Refer to Drive Motor Battery Replacement and Shipping Preparation (Volt) . |
|
| 1 | Fuel Pressure Sensor
CAUTION:
Refer to Fastener Caution . Tighten 19 N.m (14 lb ft) |
