Blower Motor Control Module Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

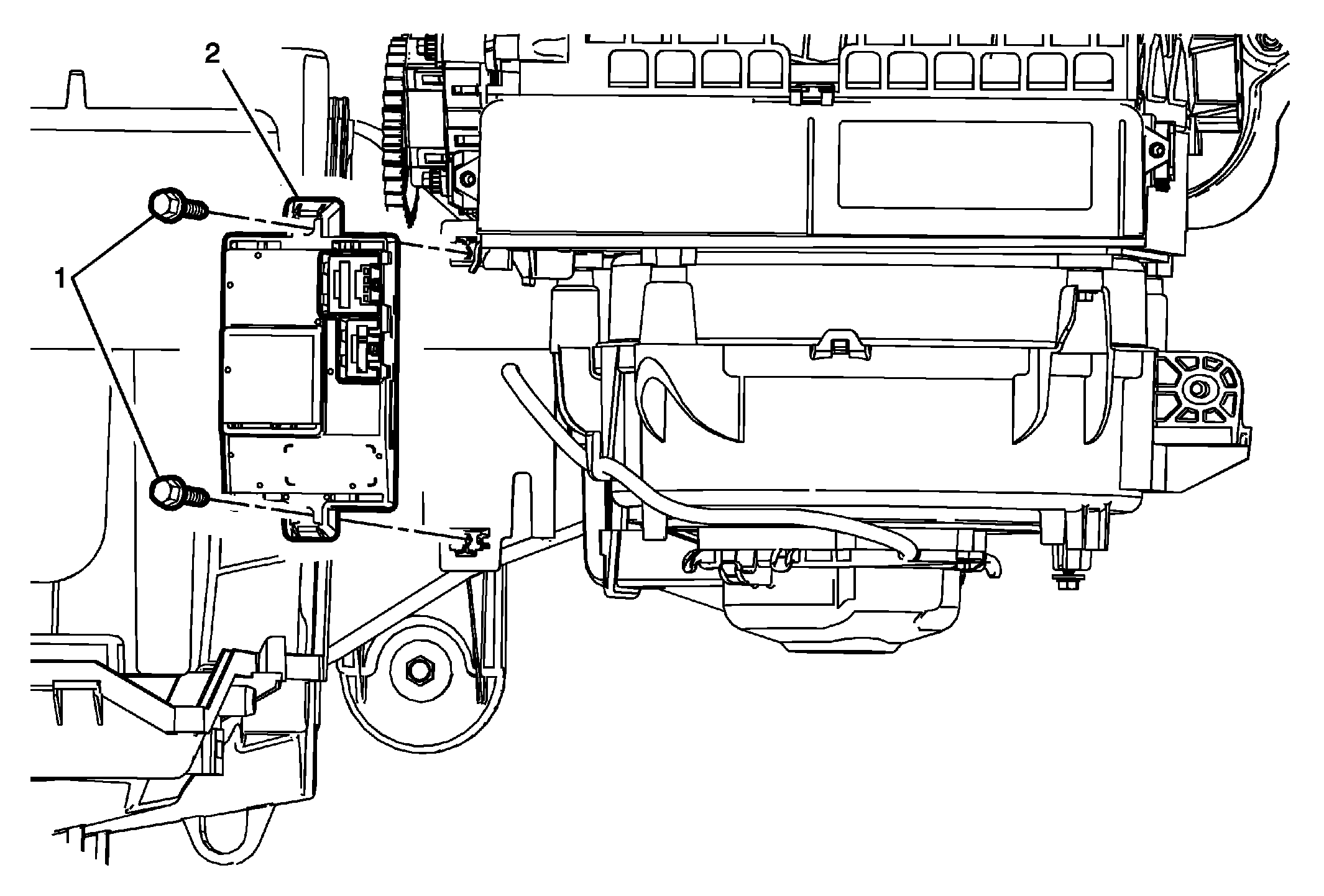

Fig 1: Blower Motor Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the I/P Lower Trim Panel Insulator Refer to Instrument Panel Lower Trim Panel Insulator Replacement . Reposition any wiring or hoses to gain access to blower motor control.
1	Blower Motor Control Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (17 lb in)
2	Blower Motor Control Module Procedure: Disconnect the wiring connector.

Callout

Component Name

Preliminary Procedures

Remove the I/P Lower Trim Panel Insulator Refer to Instrument Panel Lower Trim Panel Insulator Replacement .
Reposition any wiring or hoses to gain access to blower motor control.

Blower Motor Control Module Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (17 lb in)

Blower Motor Control Module
Procedure:
Disconnect the wiring connector.
