Rear Reflector Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

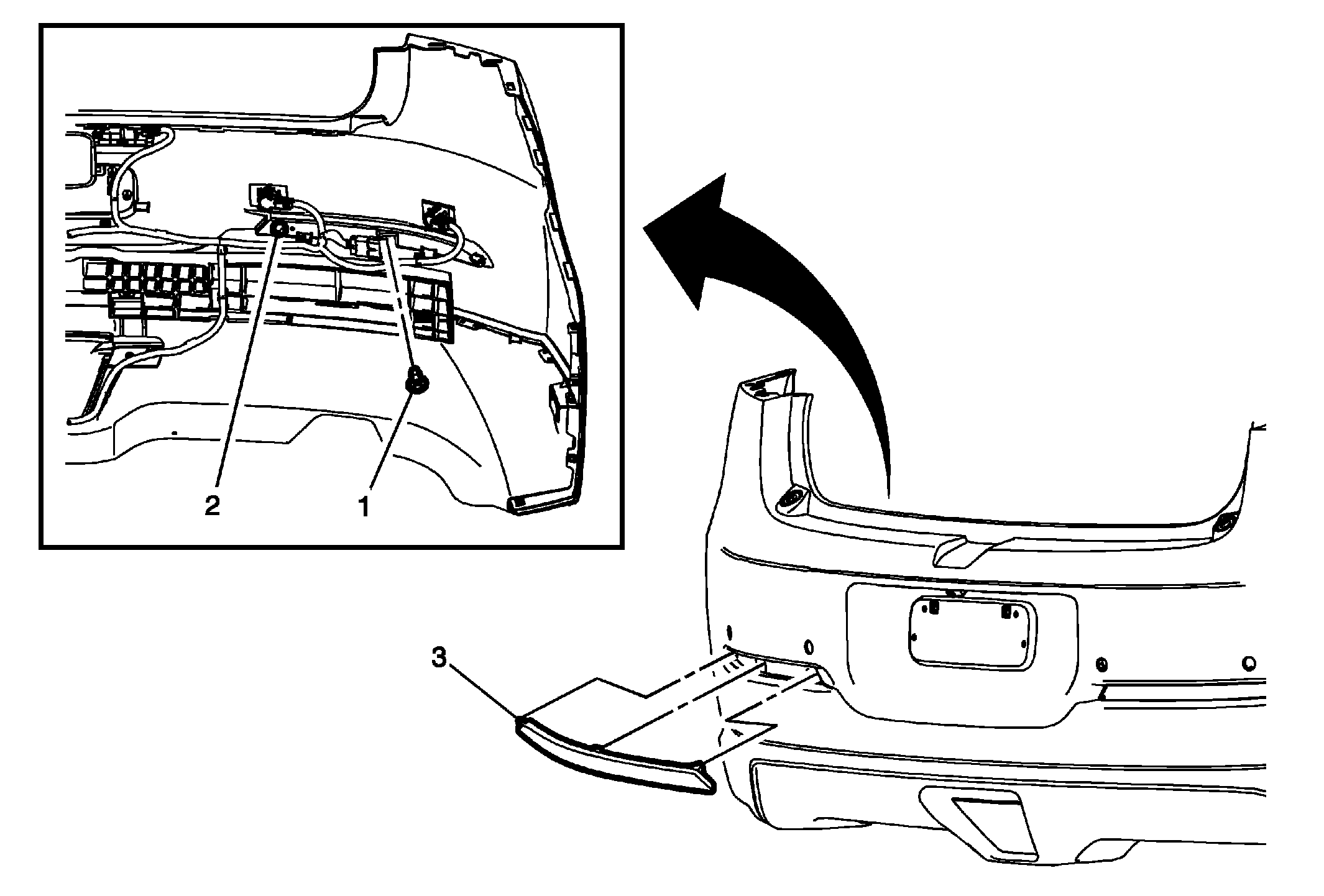

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Removal and Installation . |
|
| 1 | Rear Reflector Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Rear Reflector Retainer Procedure: Compress the retainer tabs and press out from the fascia. |
| 3 | Rear Reflector |
