Front Side Door Lock Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

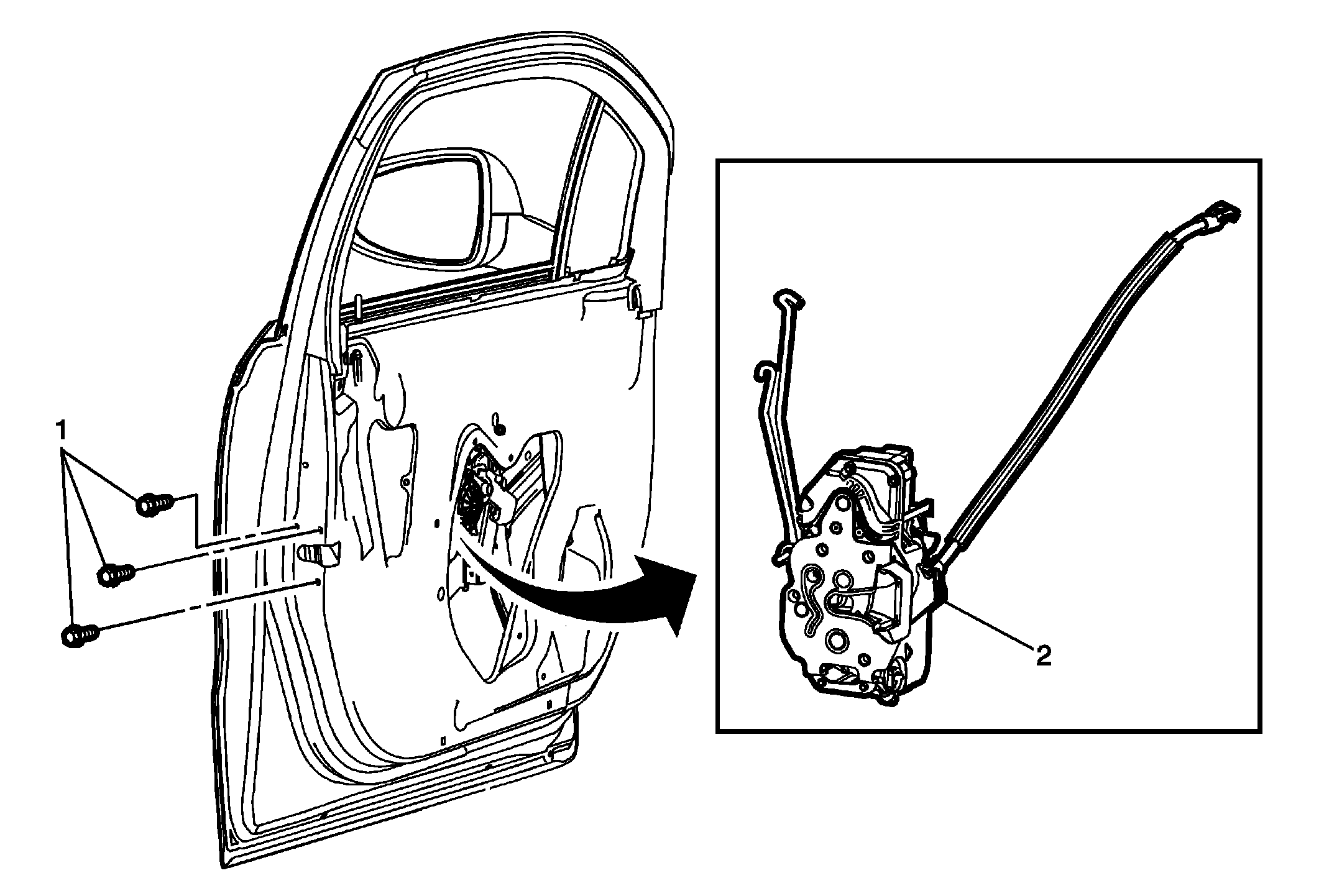

Fig 1: Front Side Door Lock
GM2394087Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front side door rear channel. Refer to Front Side Door Window Rear Channel Replacement .
1 Front Side Door Lock Screws (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Place the window in the full up position.
  2. Remove arm rest support.
  3. Remove the water deflector.
  4. Disconnect the door lock electrical connector.

Tighten:  10 N.m (89 lb in)
2 Front Side Door Lock

Procedure

  1. Turn the lock assembly releasing the lock cylinder rod from the lock.
  2. Transfer components as necessary.
  3. In order to prevent outside handle lever pre-load, latch, outside handle, handle bracket and cover/cap shall be fully secured to the door prior to securing integral latch clip to outside handle rod. Integral latch clip shall be in the full up position while securing to outside handle rod. Refer to Front Side Door Outside Handle Rod Adjustment .

Tip:  Inspect the door lock system for proper operation before installing the door trim panel.
