Assembly Procedure
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the new piston seal (2) with brake fluid from a clean, sealed brake fluid container. Refer to Adhesives, Fluids, Lubricants, and Sealers for the recommended brake fluid.
- Install the lubricated, new piston seal (3) into the caliper bore.
- Apply a thin coat of brake fluid from a clean, sealed brake fluid container. Refer to Adhesives, Fluids, Lubricants, and Sealers for the recommended brake fluid.
- Install the bottom half of the caliper piston (2) into the caliper bore.

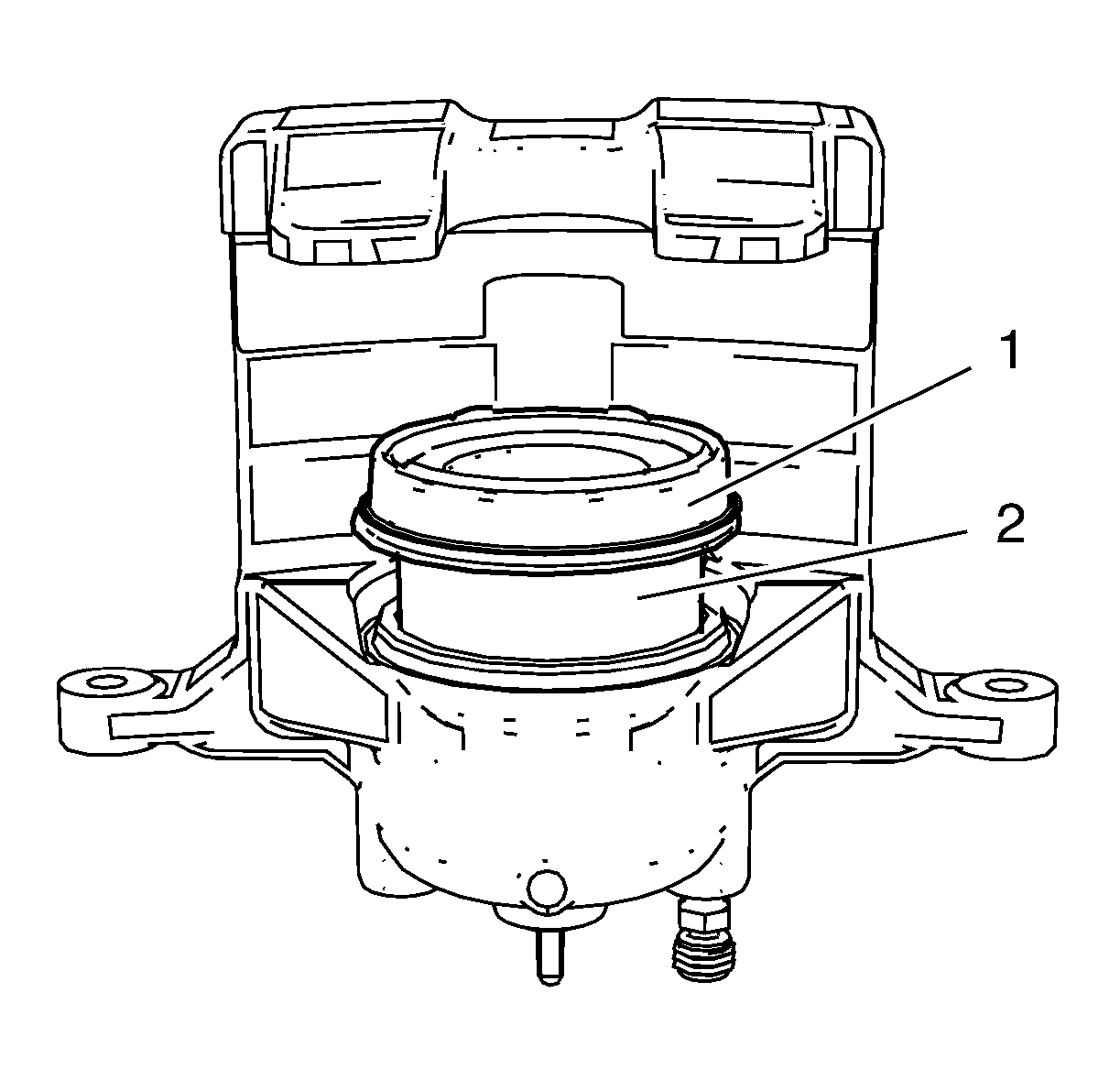

- Install the new piston dust boot seal (1) over the caliper piston (2).
- Compress the caliper piston (2) to the bottom of the caliper bore.
- Fully seat the piston dust boot seal (1) into caliper counterbore.
- Install the bleeder valve (5) to the caliper and tighten the valve to 17 N.m (13 lb ft).
- Install the bleeder valve cap (6).
- Install the brake caliper to the vehicle. Refer to Front Brake Caliper Replacement .
CAUTION:
Refer to Fastener Caution
.
