Driver Seat Components

Component Name	Callout
K29 Seat Heating Control Module	1
F113D Seat Belt Anchor Pretensioner - Driver	2
E14A Seat Heating Element - Driver Back	3
F106L Side Air Bag - Left	4
E14B Seat Heating Element - Driver Cushion	5
B88D Seat Belt Switch - Driver (Part of Buckle)	6

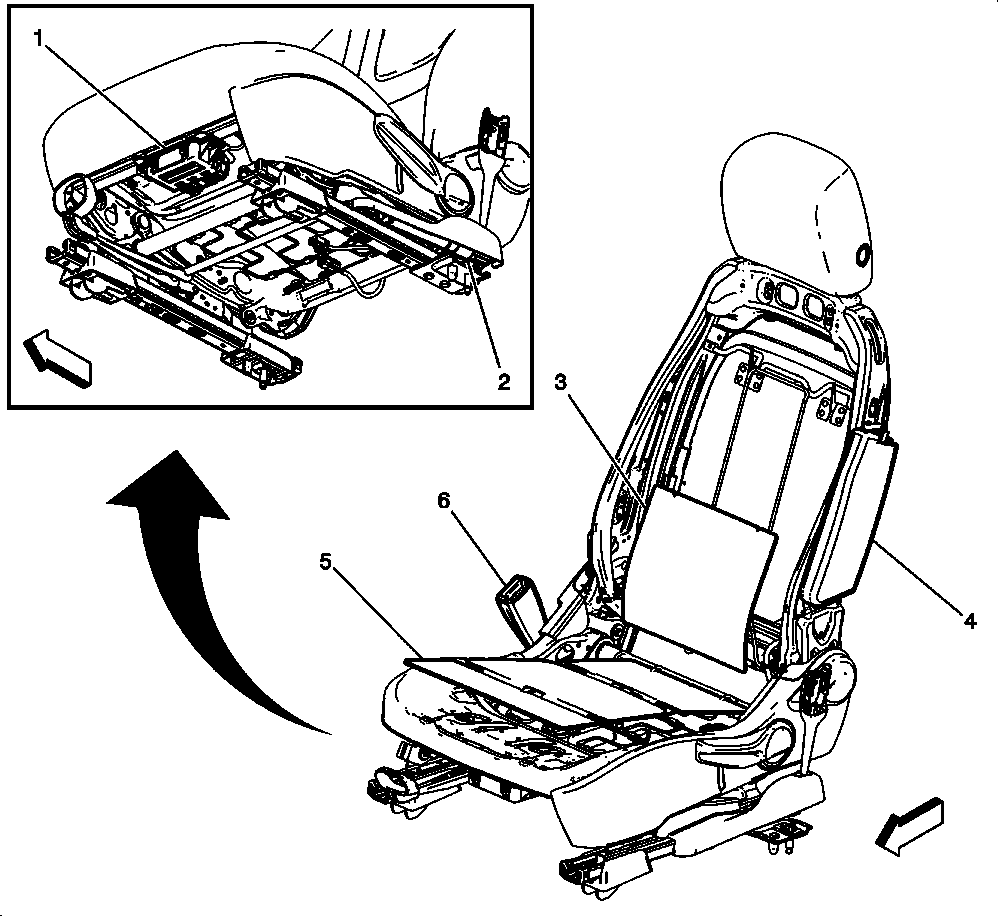

Fig 1: Driver Seat Components

Courtesy of GENERAL MOTORS COMPANY
