Front Seat Belt Buckle Replacement
Front Seat Belt Buckle Replacement

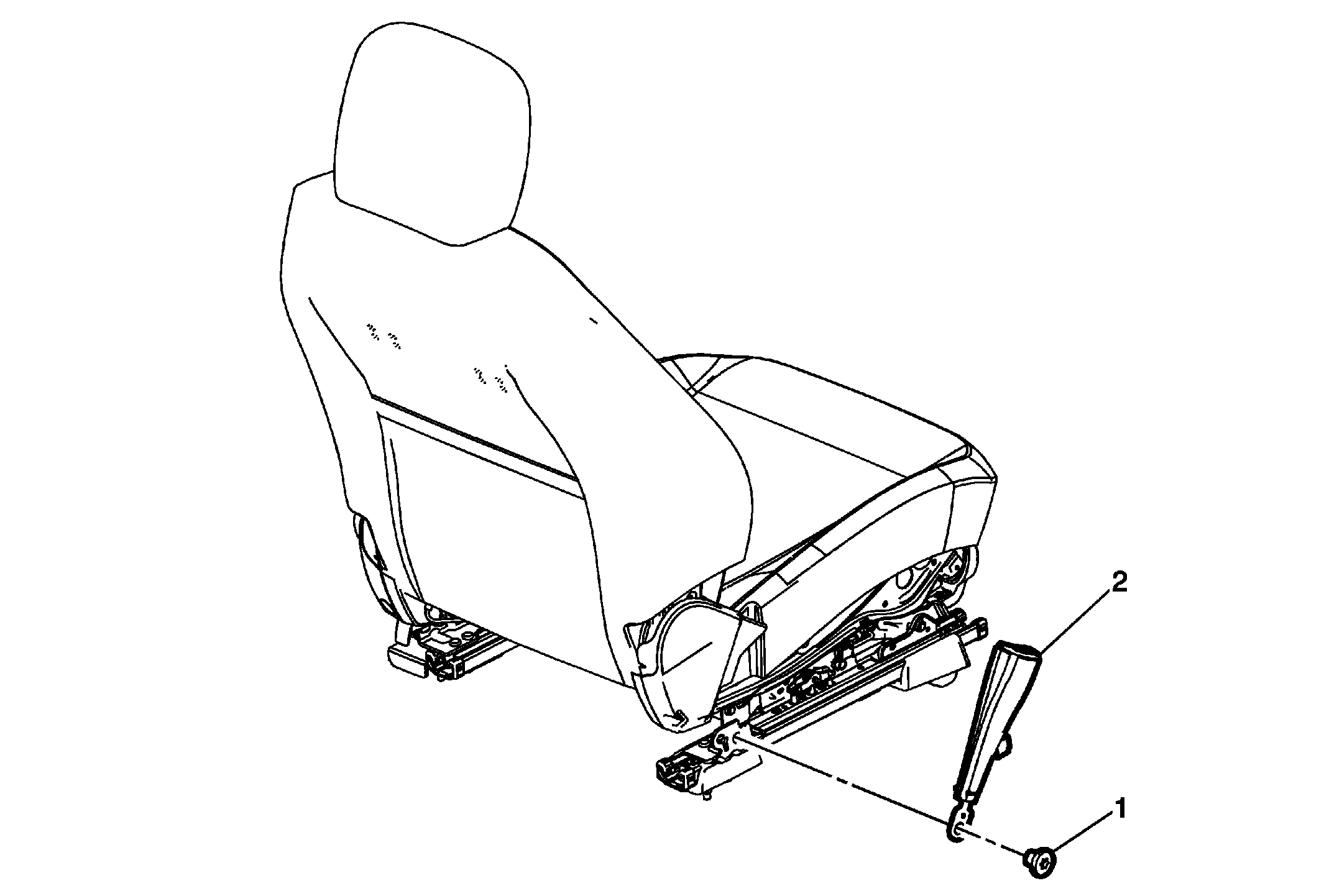

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat assembly. Refer to Driver or Passenger Seat Replacement . |
|
| 1 | Seat Belt Buckle Fastener
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Seat (Buckle Side) Belt Assembly Procedure Disconnect the electrical connector. |
