Object Detection Wiring Schematics
›
Object Detection Schematics Rear View Camera
Object Detection Schematics Rear View Camera

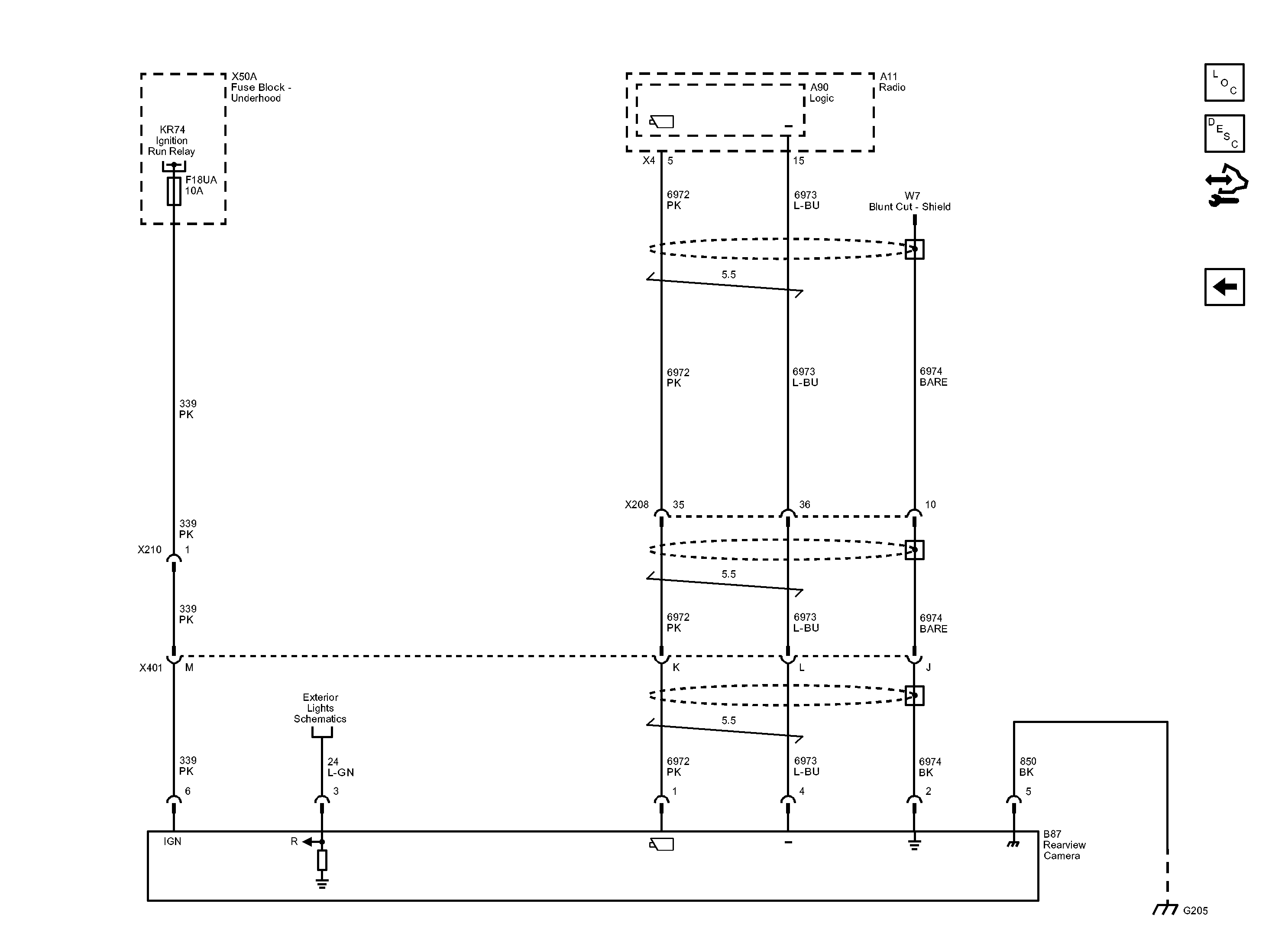

Fig 1: Rear View Camera Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
