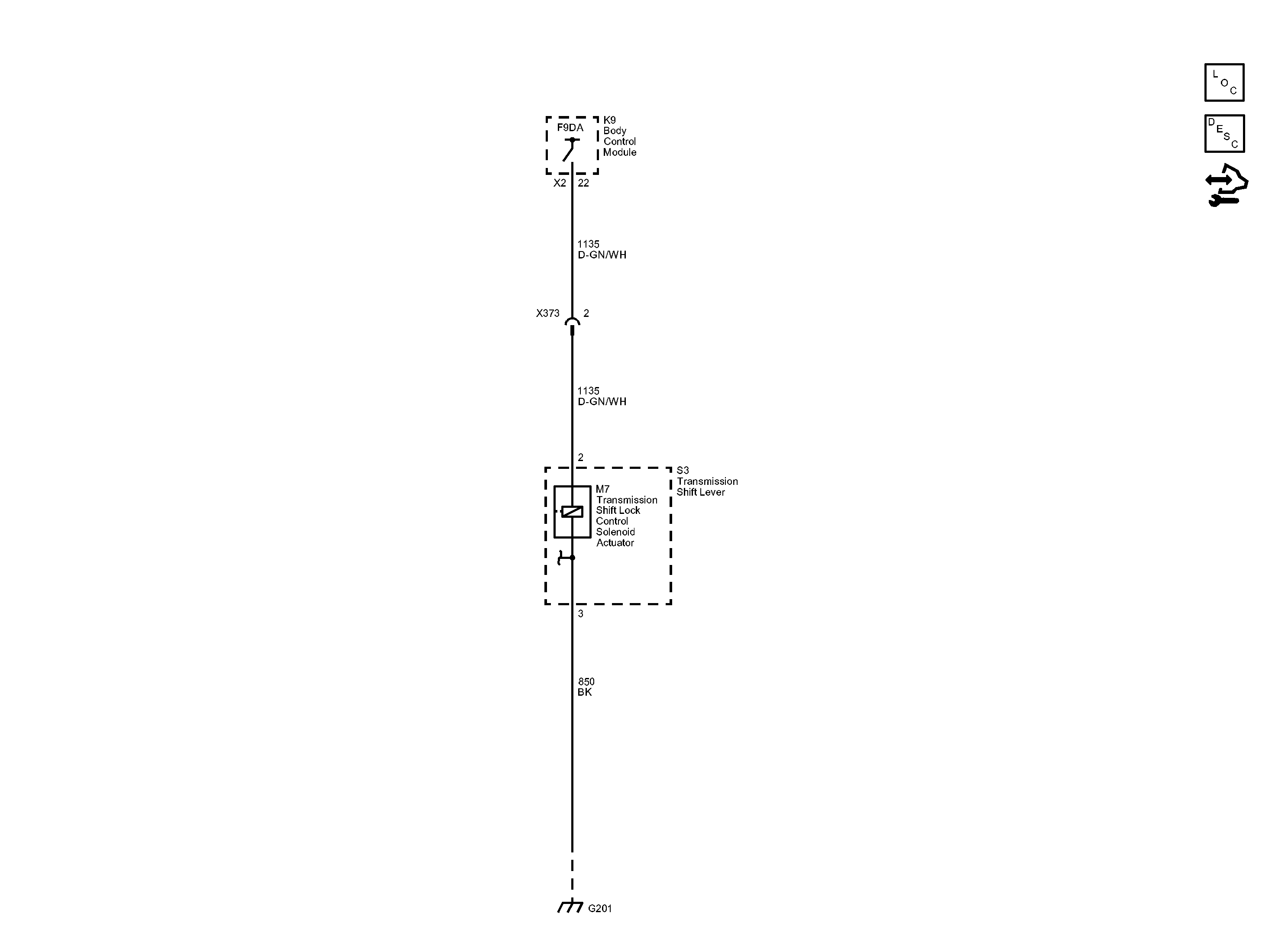

Home › Chevrolet › 2013 › Caprice 3.6L Eng VIN 3 › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
