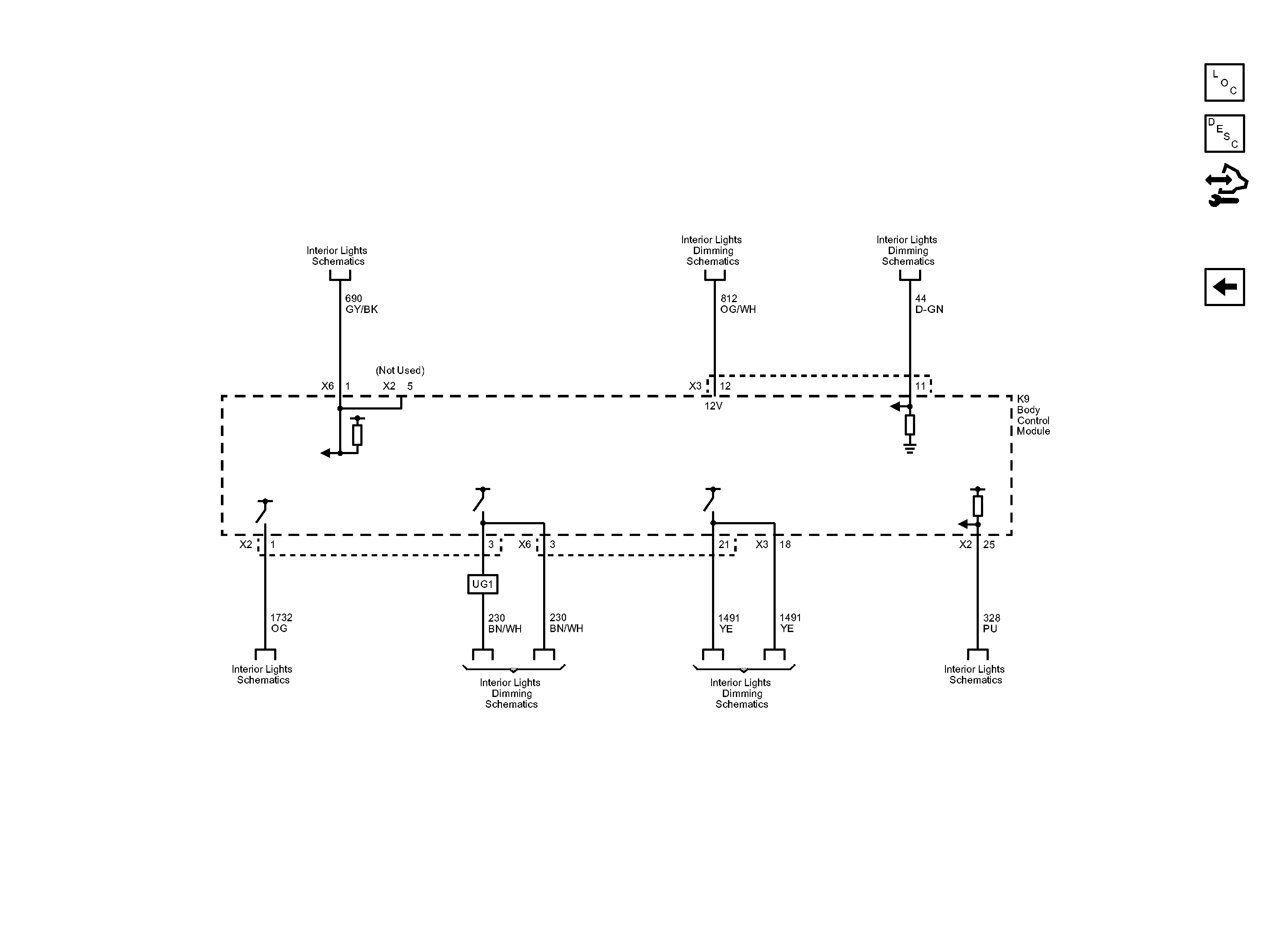

Home › Chevrolet › 2013 › Captiva Sport LS, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Wiring Schematic Diagrams › Body Control System Wiring Schematics › Subsystem References (3 of 3)
