Chevrolet
›
2013
›
Captiva Sport LS, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Wiring Schematic Diagrams
›
Data Communication Wiring Schematics
›
Powertrain Expansion Bus
Powertrain Expansion Bus

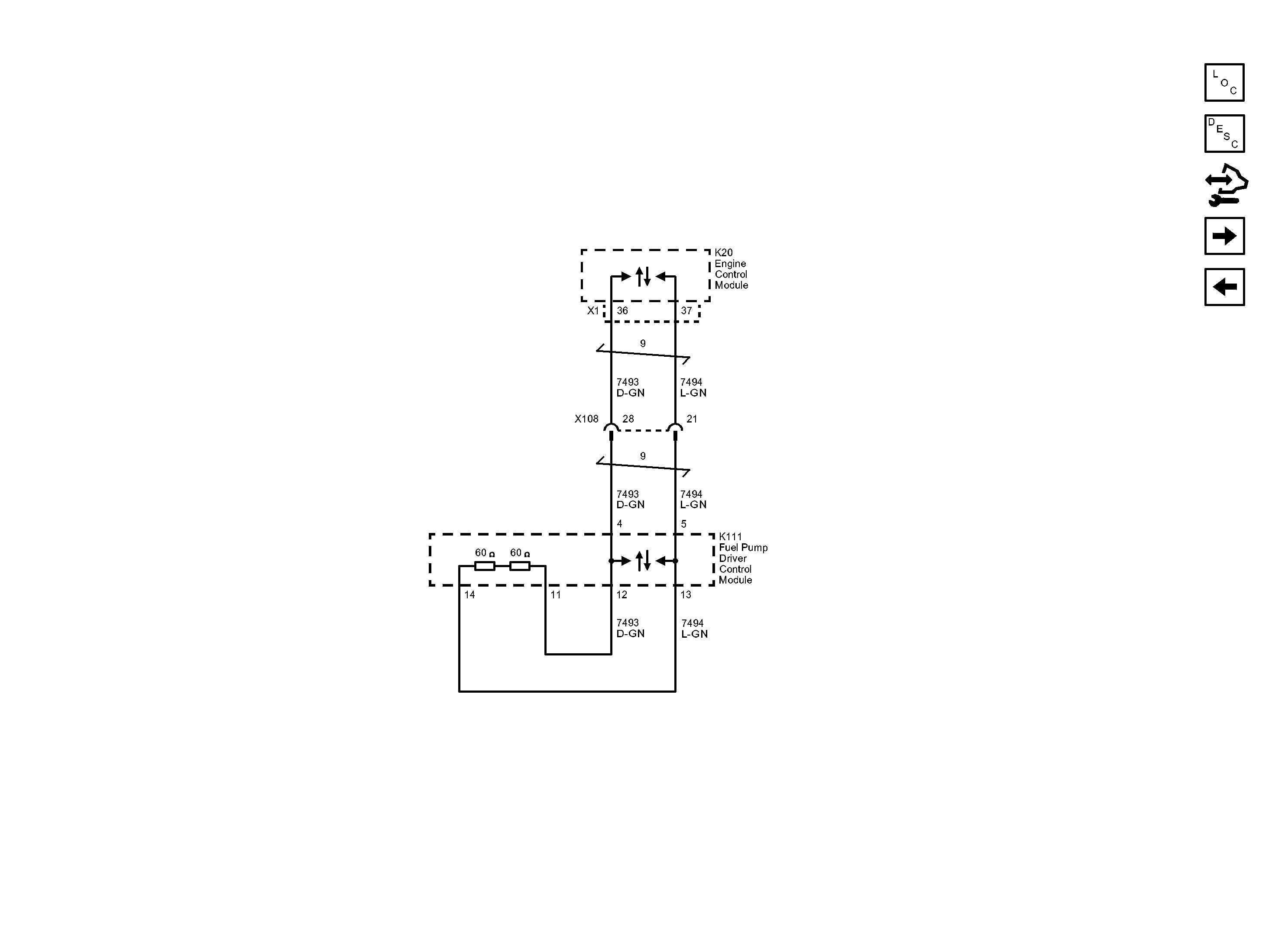

Fig 1: Powertrain Expansion Bus Wiring Schematic
