Air Cleaner Assembly Replacement (LS9)
Air Cleaner Assembly Replacement (LS9)

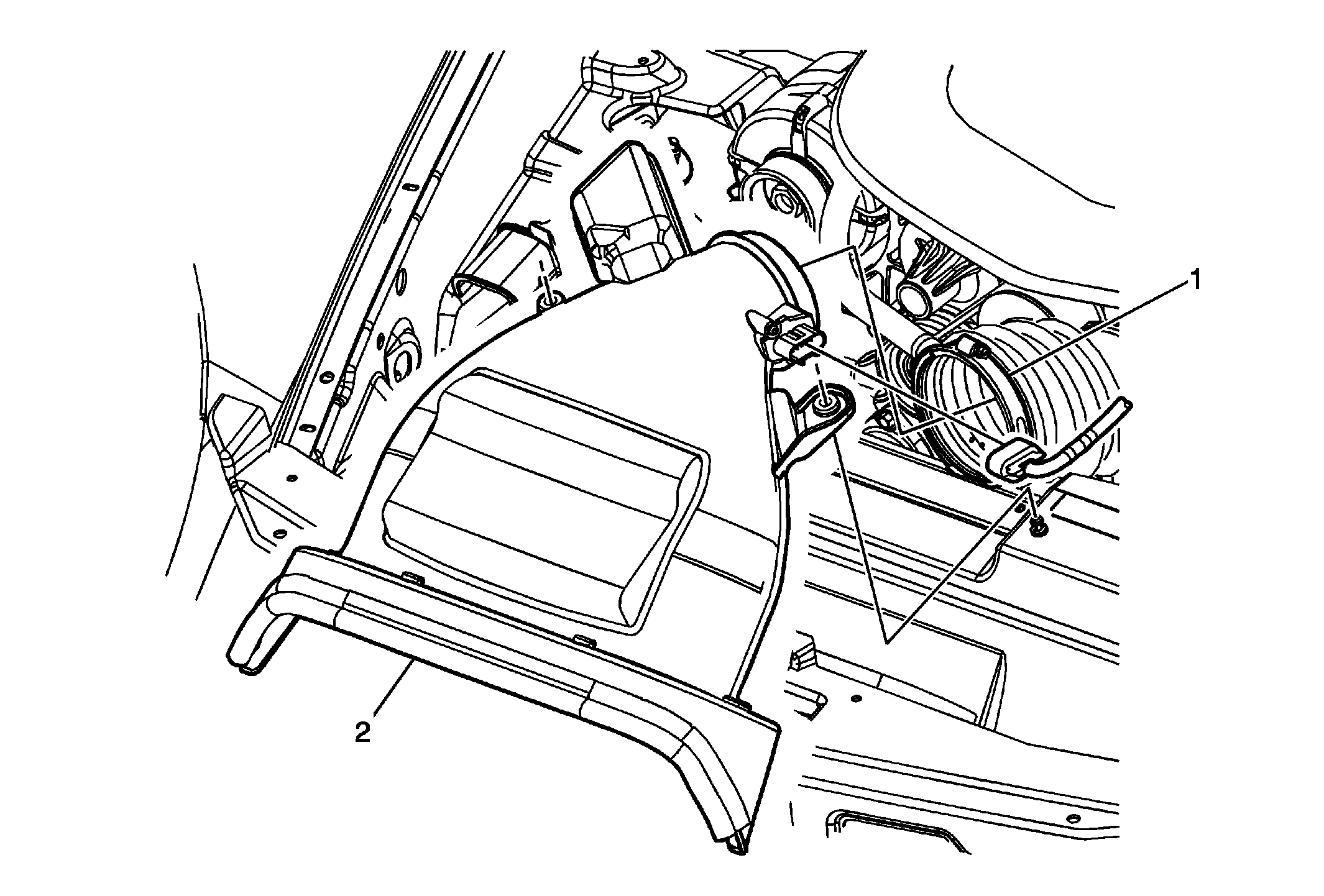

Fig 1: View Of Air Cleaner Assembly (LS9)
Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement (LS9)
Callout
Component Name
1
Clamp
2
Air Cleaner Housing
Procedure
Disconnect the mass air flow harness connector.
Disconnect the air cleaner output duct from the air cleaner housing.
Disconnect the air cleaner housing from the air cleaner retainers on the radiator core support.
