Mass Airflow Sensor Replacement (LS9)
Mass Airflow Sensor Replacement (LS9)

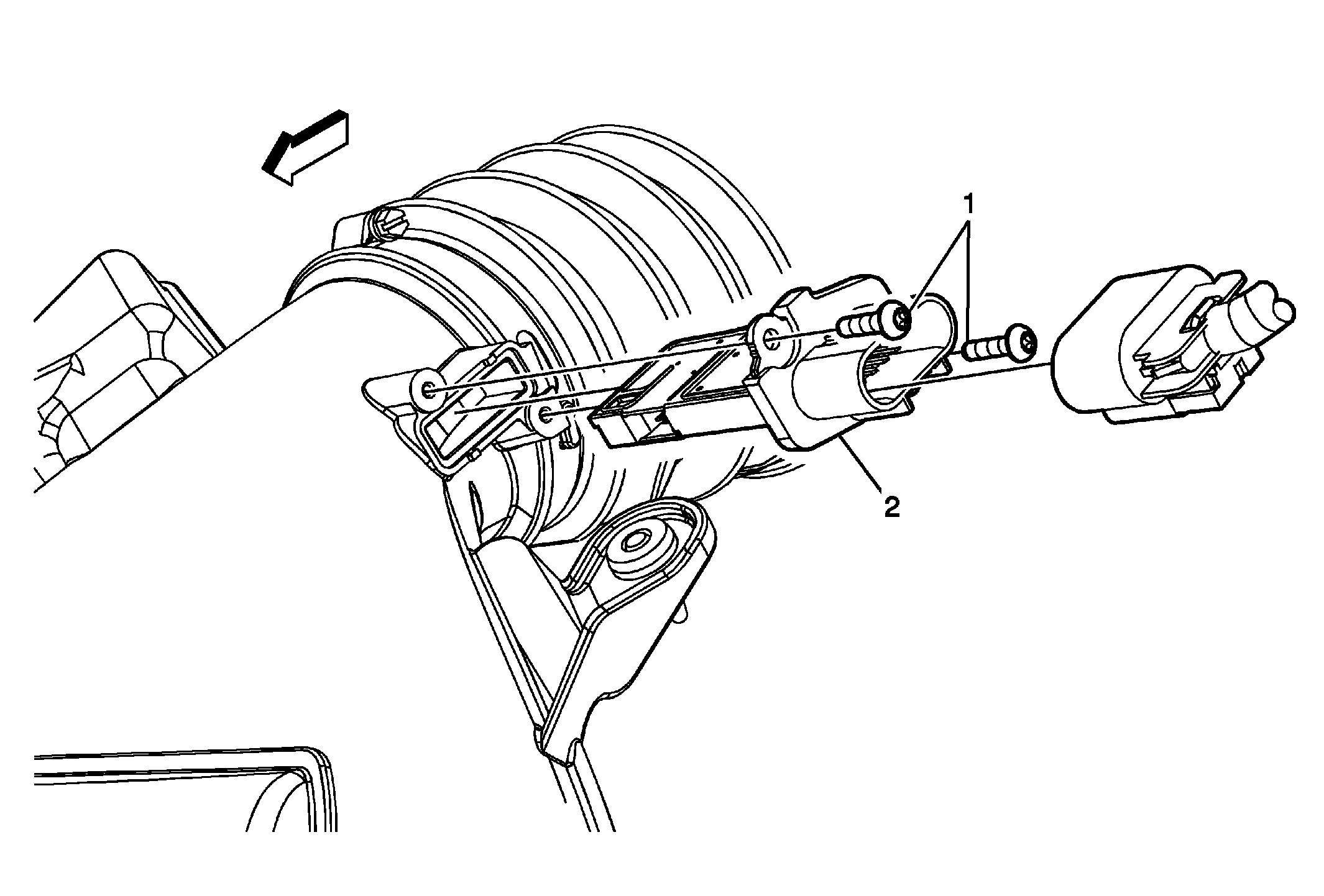

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Mass Airflow Sensor Procedure Disconnect the mass airflow harness connector. |
