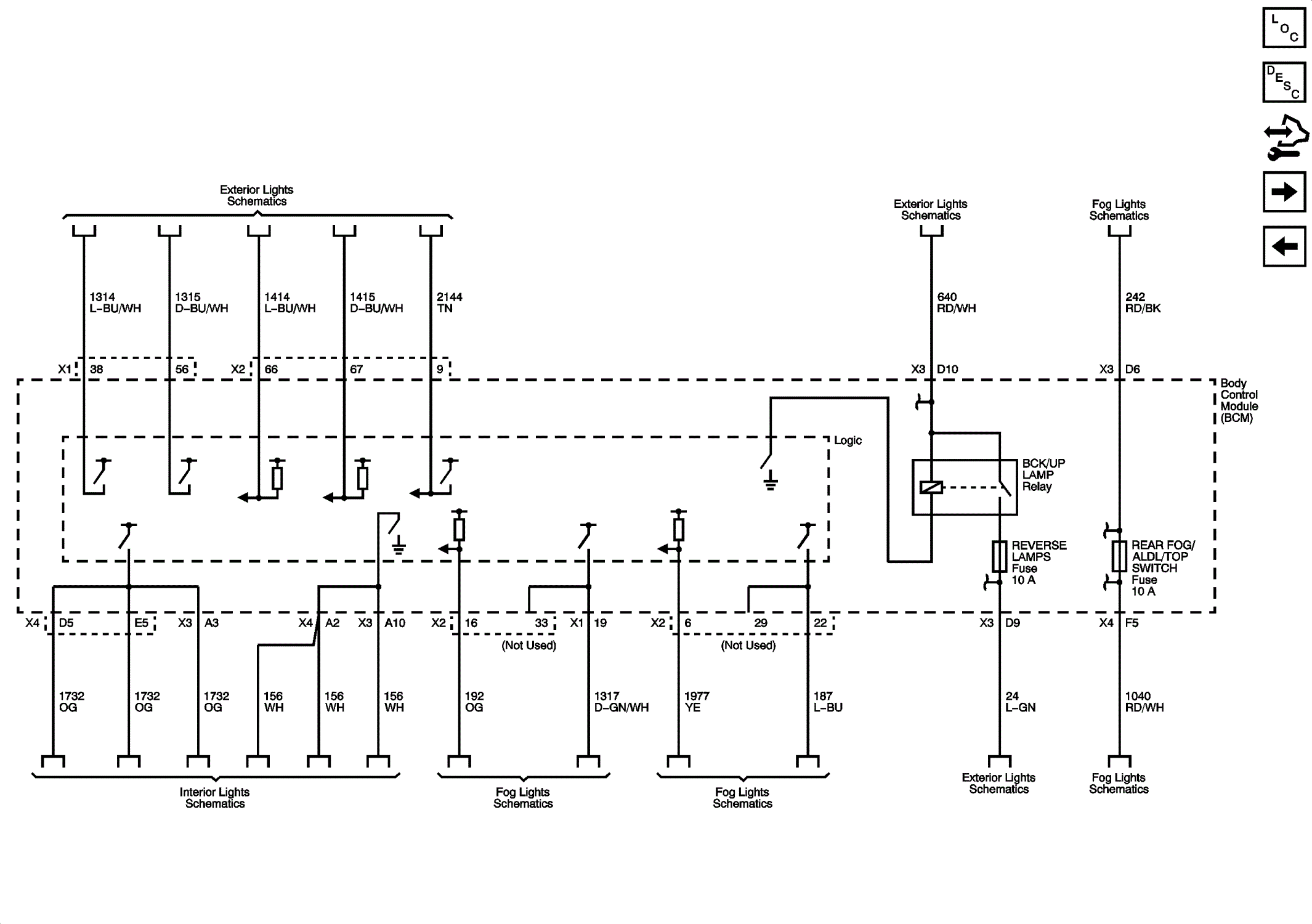

Home › Chevrolet › 2013 › Corvette Base, 2D Convertible, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Lighting References (2 of 2)
