Power, Ground, and Serial Data

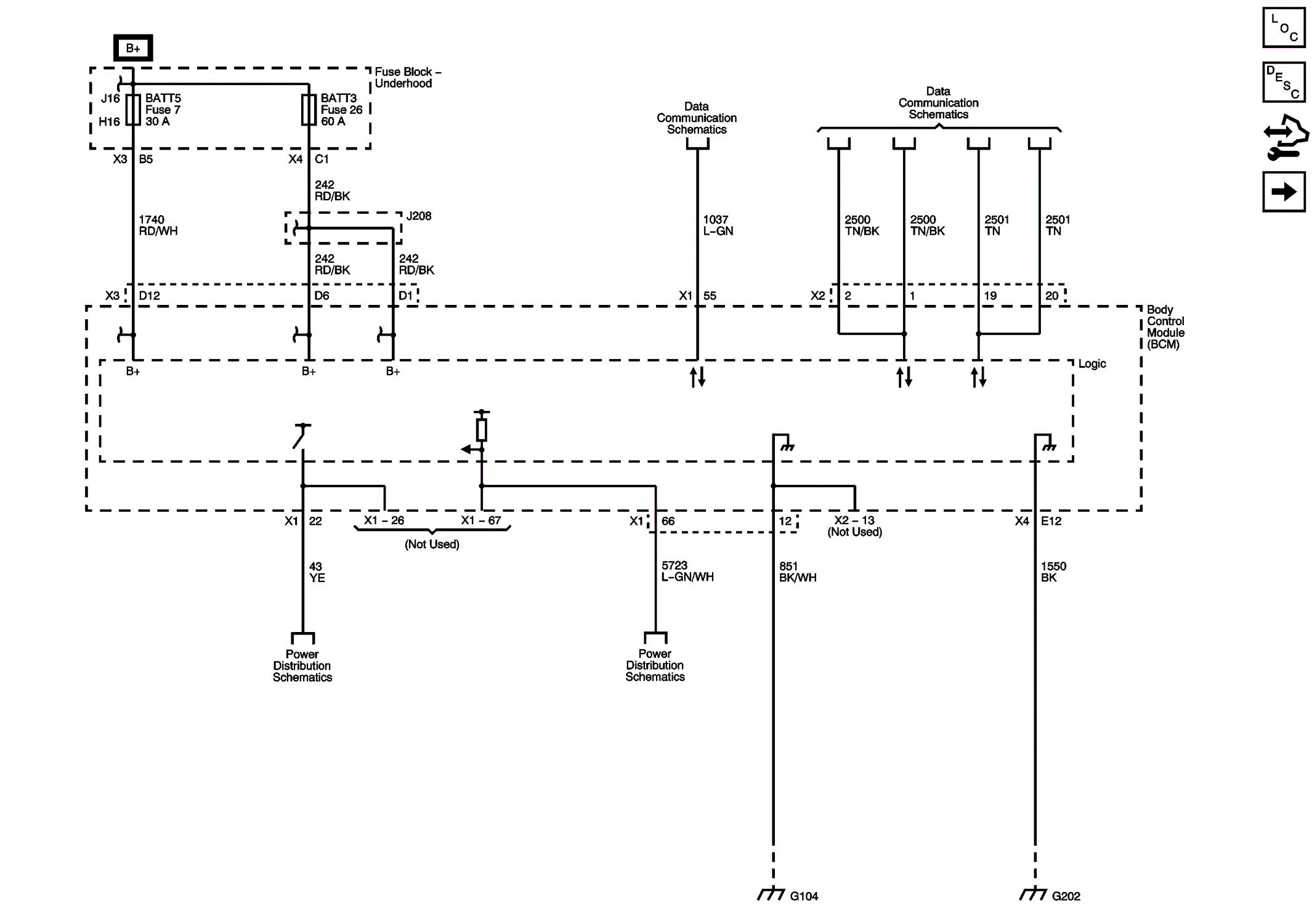

Fig 1: Power, Ground, and Serial Data Wiring Schematic
GM2756860Courtesy of GENERAL MOTORS COMPANY
