High Speed GMLAN - Automatic Transmission
High Speed GMLAN - Automatic Transmission

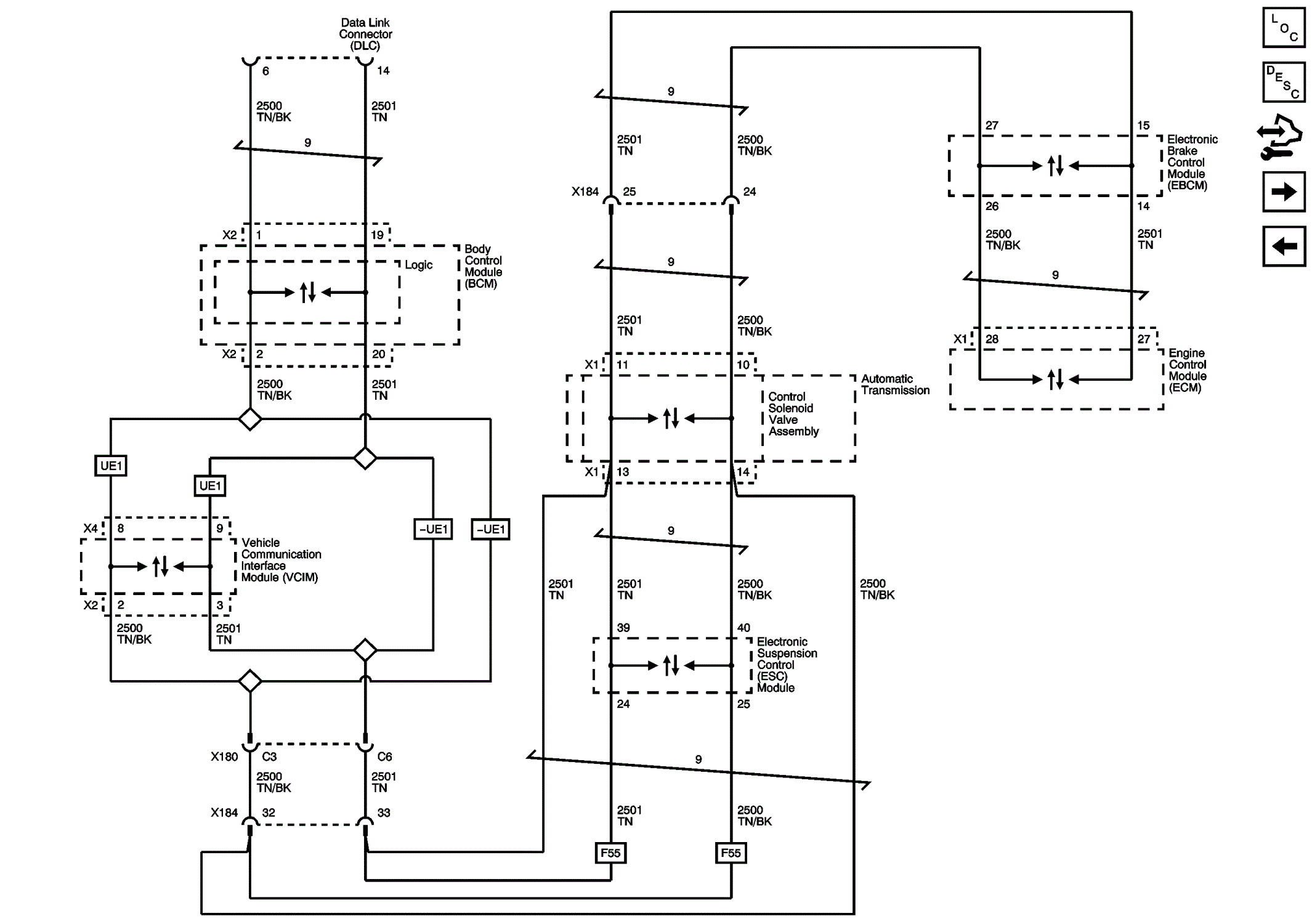

Fig 1: High Speed GMLAN Wiring Schematic - Automatic Transmission
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
