Low Speed GMLAN Wiring Schematics

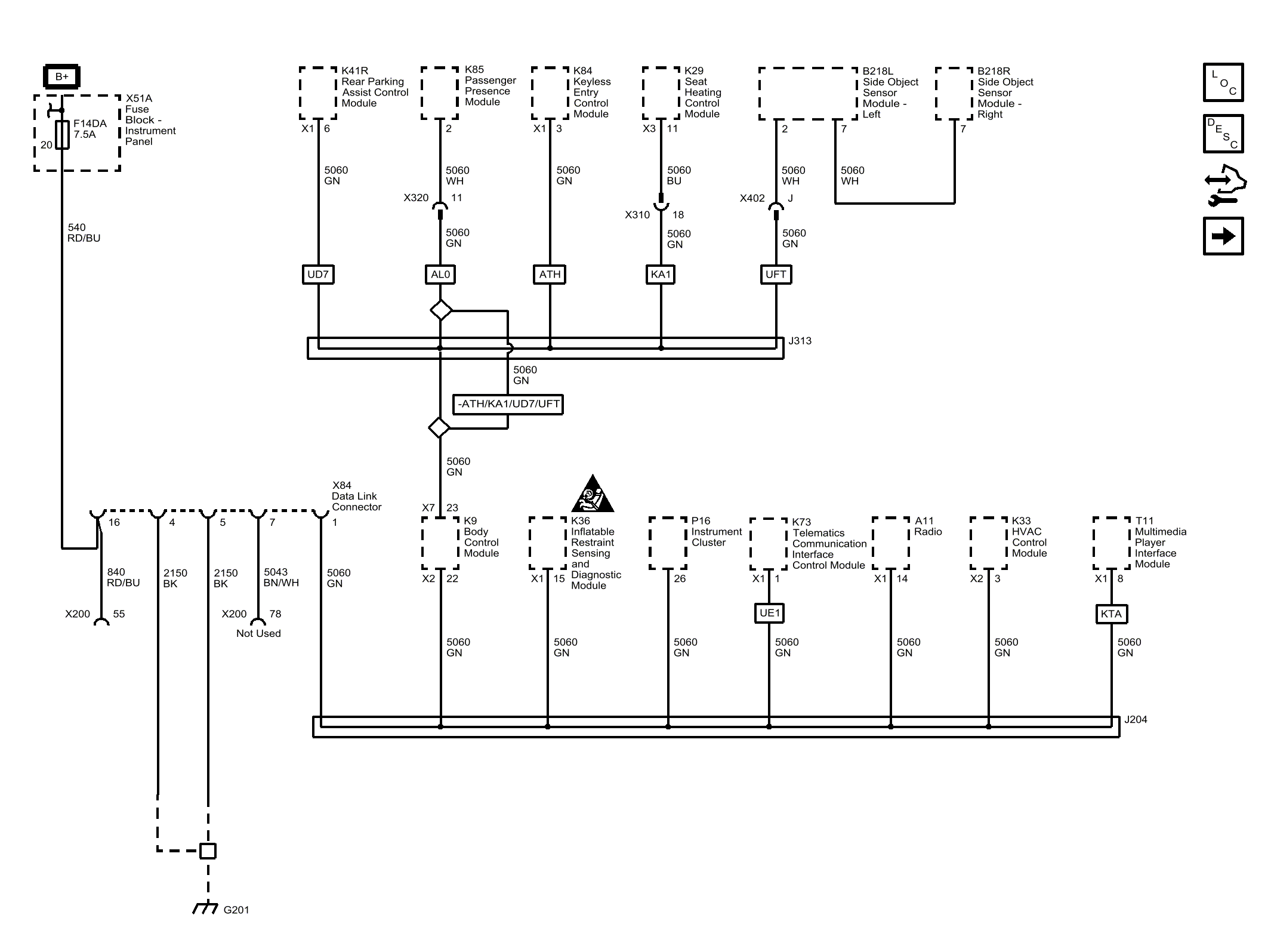

Fig 1: Low Speed GMLAN Wiring Schematics
GM2852274Courtesy of GENERAL MOTORS COMPANY
