Installation Procedure

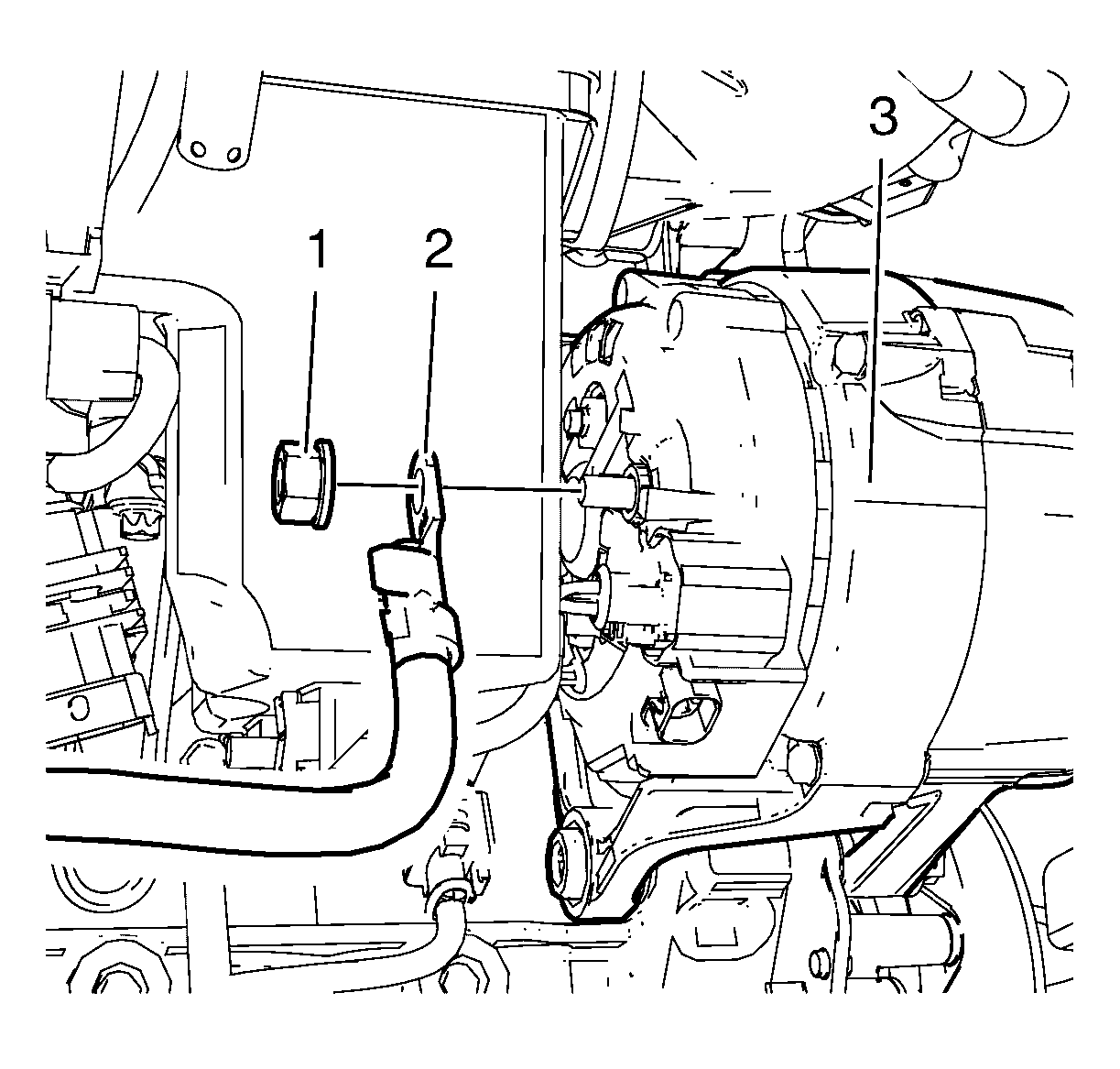

    Fig 1: Generator And Generator Positive Cable
    GM2028231Courtesy of GENERAL MOTORS COMPANY
  1. Install the positive cable (2) to the generator (3).
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the generator positive cable nut (1) to the generator (3) and tighten to 20 N.m (15 lb ft).
  3. Install the rubber cap to the positive cable generator connector.

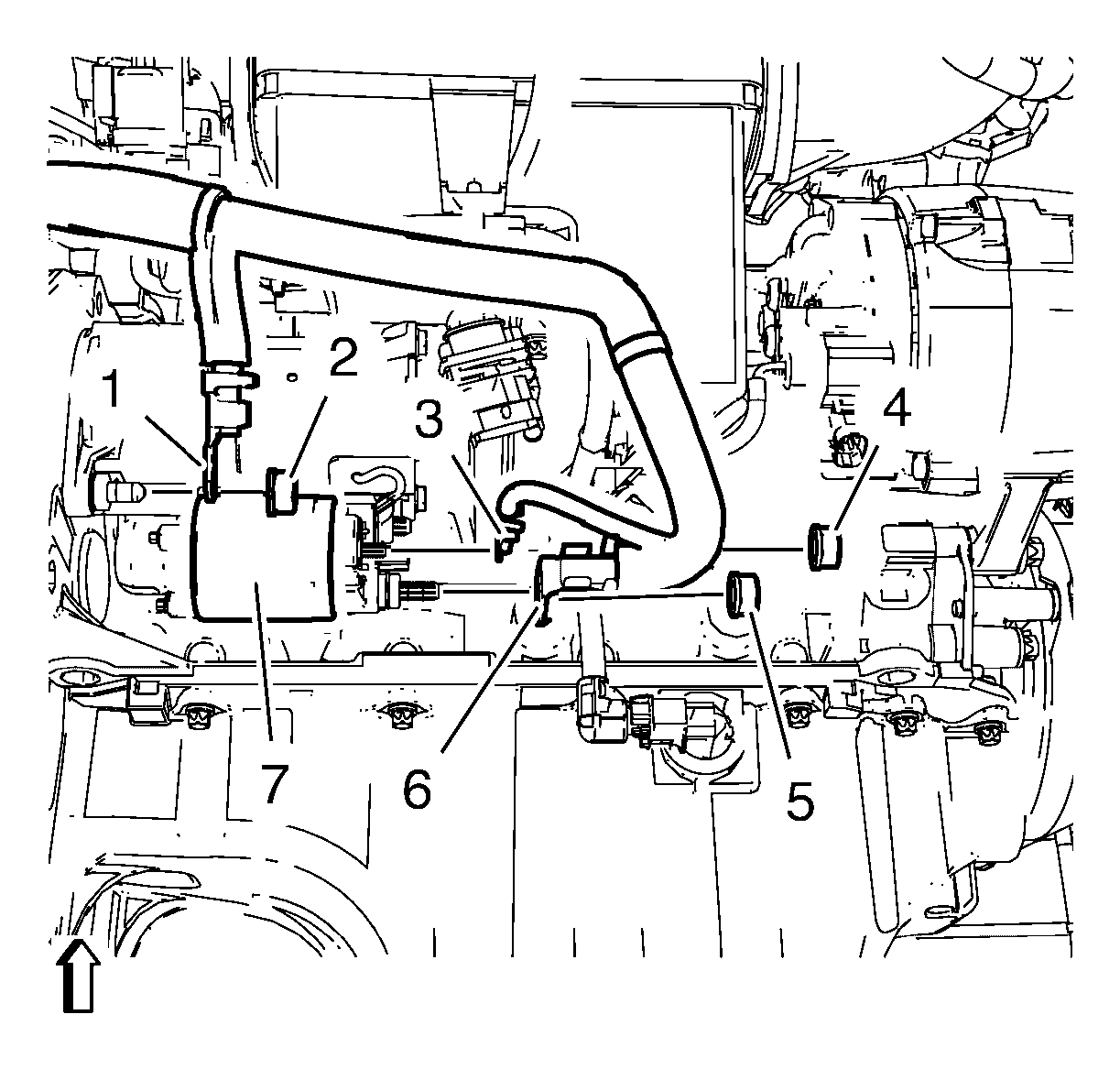

    4. Fig 2: Starter Motor, Negative Cable And Positive Cables
    GM2028233Courtesy of GENERAL MOTORS COMPANY
  4. Install the 2 positive cables (3, 6).
  5. Install the starter and generator positive cable nut (5) and the starter positive cable nut (4) and tighten to 12.5 N.m (111 lb in).
  6. Install the negative cable (1).
  7. Install the starter ground cable nut (2) to the starter motor (7) and tighten to 12.5 N.m (111 lb in).
    8. Fig 3: Battery Negative Cable And Battery Ground Cable Nut
    GM2027762Courtesy of GENERAL MOTORS COMPANY
  8. Install the battery ground cable (2).
  9. Install the battery negative cable nut (1) and tighten to 9 N.m (80 lb in).
    10. Fig 4: View Of Fuse Box Cover, Battery Cable And Nut
    GM2027594Courtesy of GENERAL MOTORS COMPANY
  10. Install the battery positive cable to starter (3) at the battery.
  11. Install the battery positive cable to starter nut (2) and tighten to 12 N.m (106 lb in).
    12. Fig 5: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  12. Close the battery fuse box cover and lock the retaining tabs (1) and (4).
  13. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
