Linear Interconnect Network (LIN) Serial Data Wiring Schematics

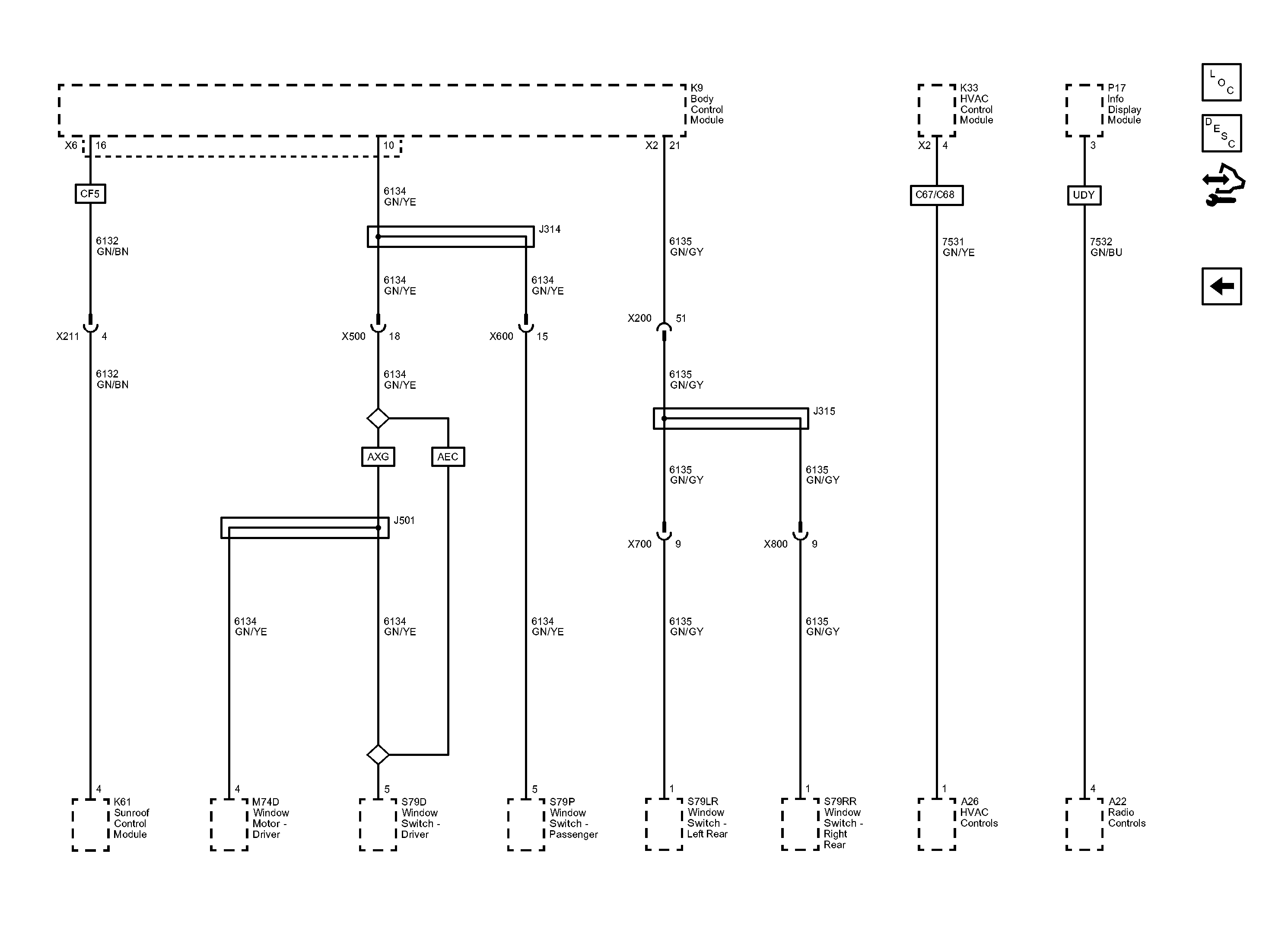

Fig 1: Linear Interconnect Network (LIN) Serial Data Wiring Schematics
GM2852280Courtesy of GENERAL MOTORS COMPANY
