Shift Lock Control Wiring Schematics: MH8

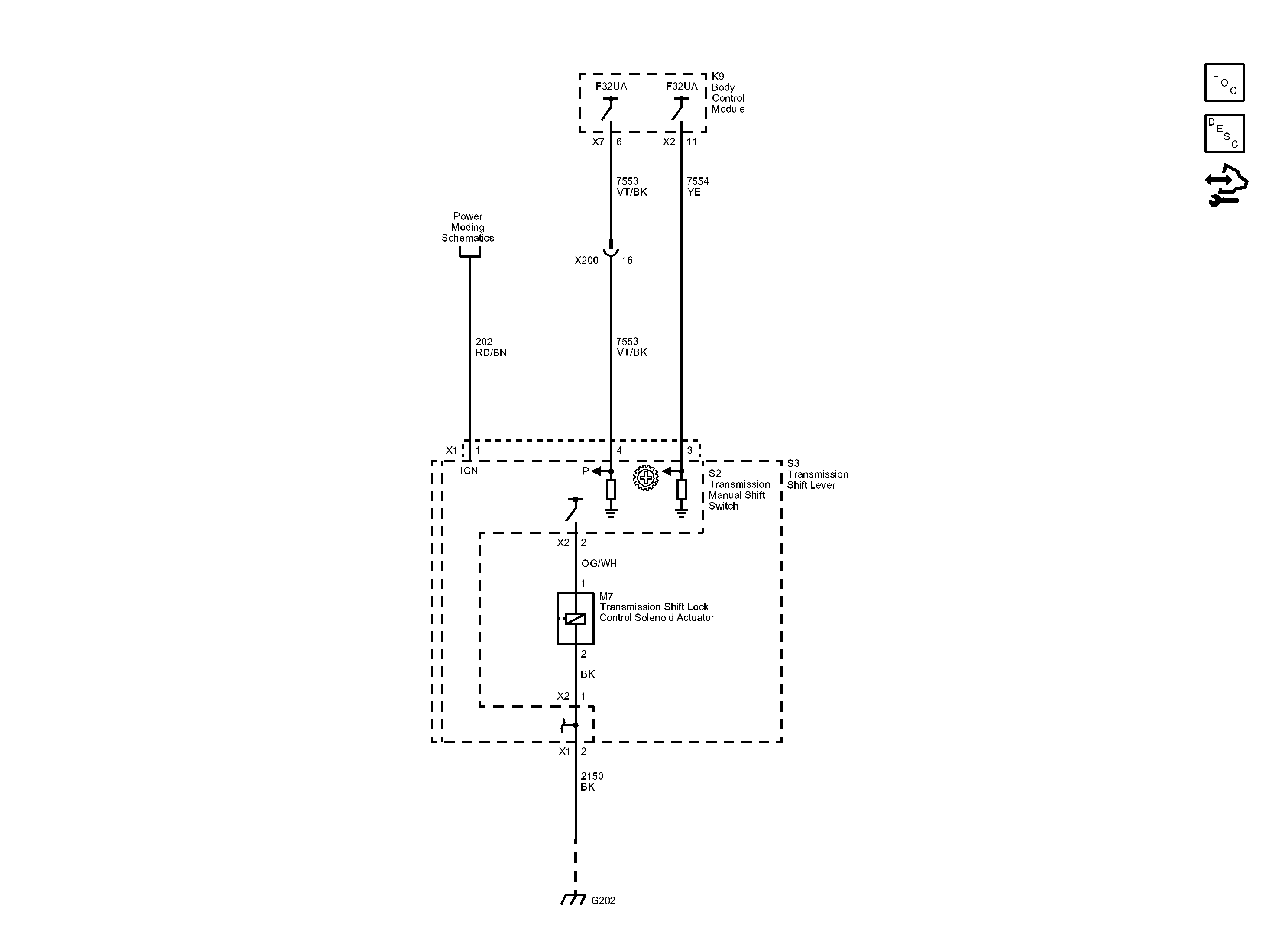

Fig 1: Shift Lock Control (MH8) Wiring Schematics
GM2852434Courtesy of GENERAL MOTORS COMPANY
