Data Communication Wiring Schematics
›
Chassis Expansion Bus Wiring Schematics
Chassis Expansion Bus Wiring Schematics

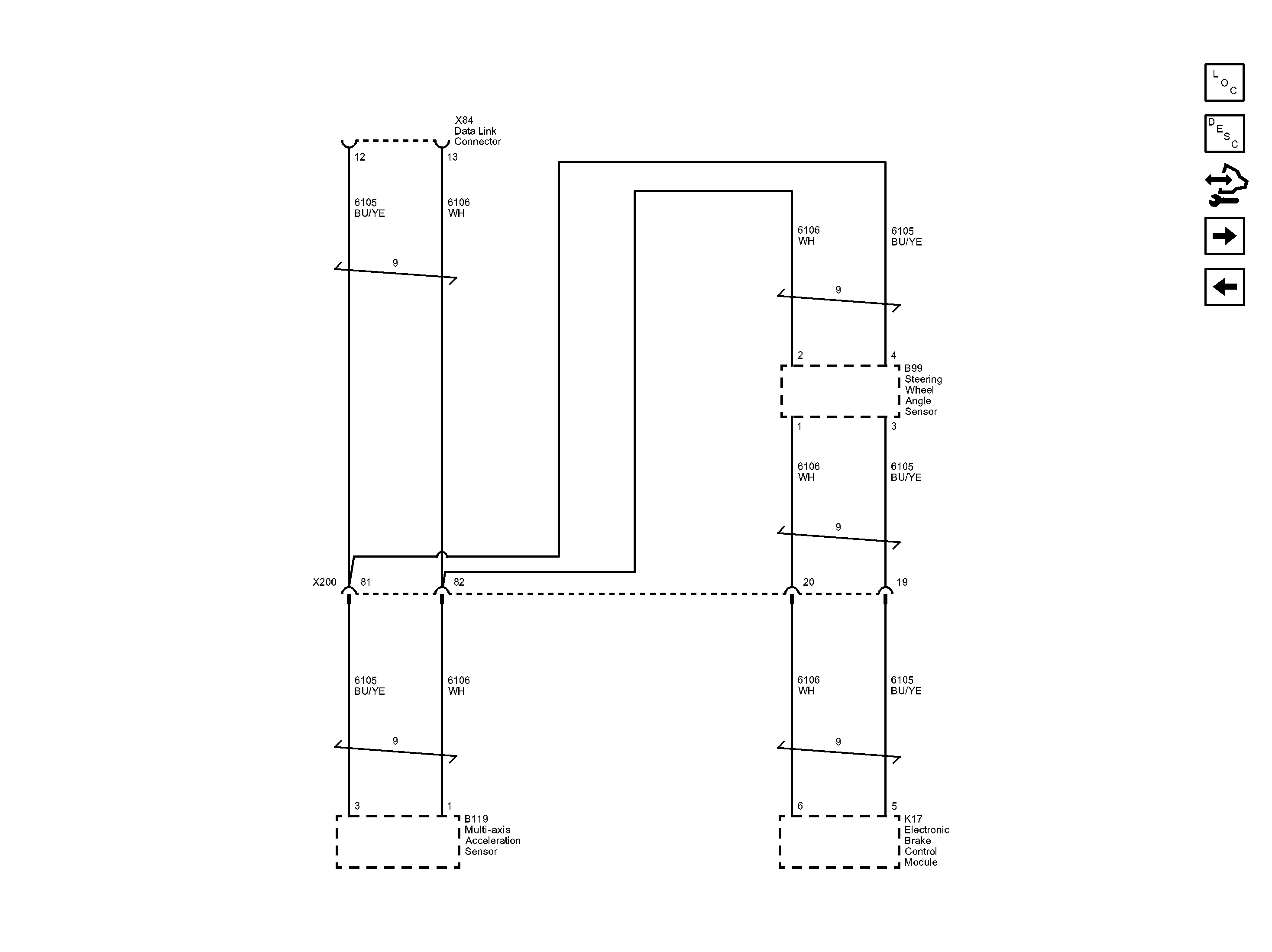

Fig 1: Chassis Expansion Bus Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
