Keyless Entry Wiring Schematics

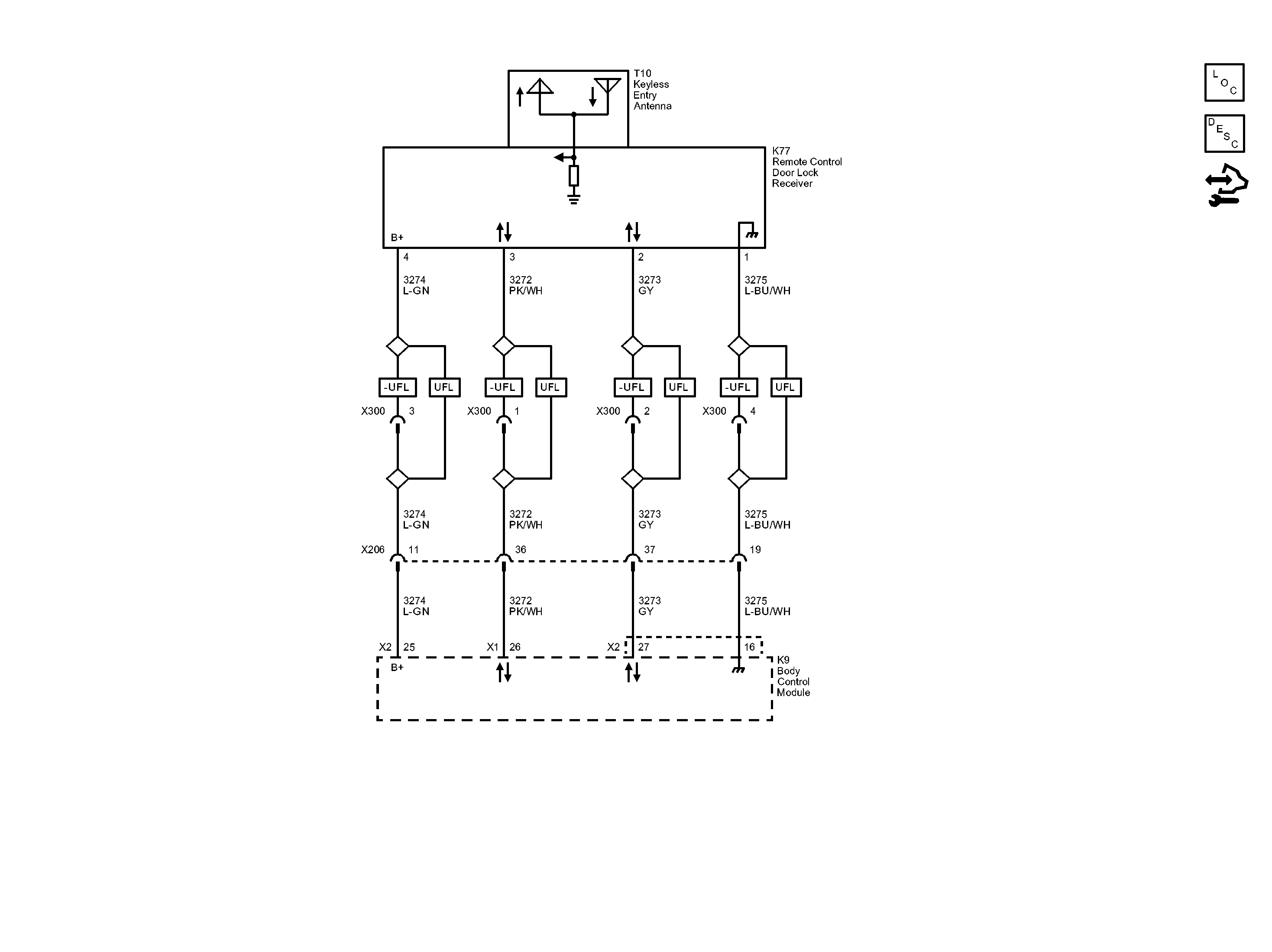

Fig 1: Keyless Entry Wiring Schematics
GM2816137Courtesy of GENERAL MOTORS COMPANY
