Powertrain Expansion Bus Wiring Schematics

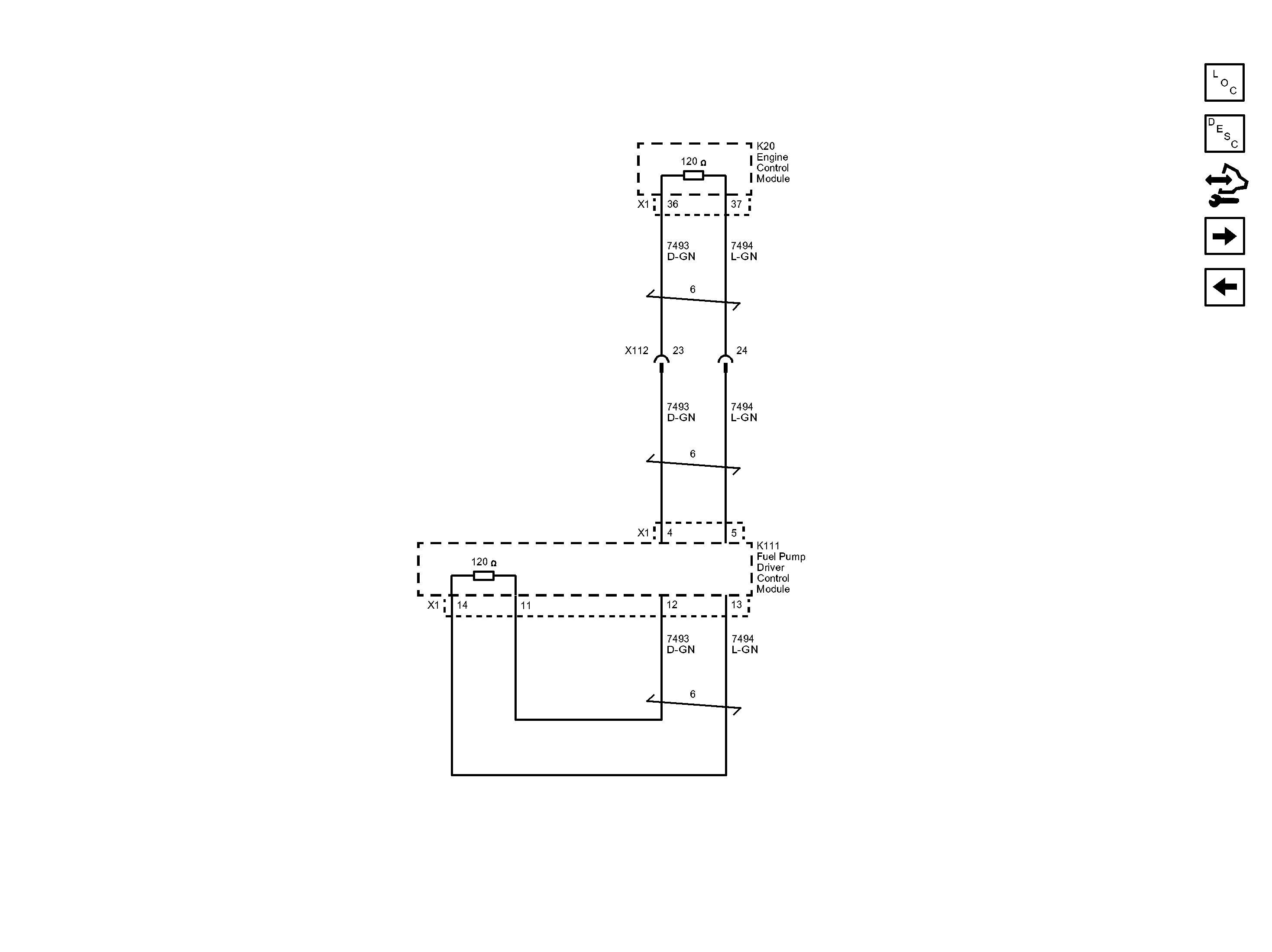

Fig 1: Powertrain Expansion Bus Wiring Schematics
GM2845563Courtesy of GENERAL MOTORS COMPANY
