Steering Wheel Secondary/Configurable Control

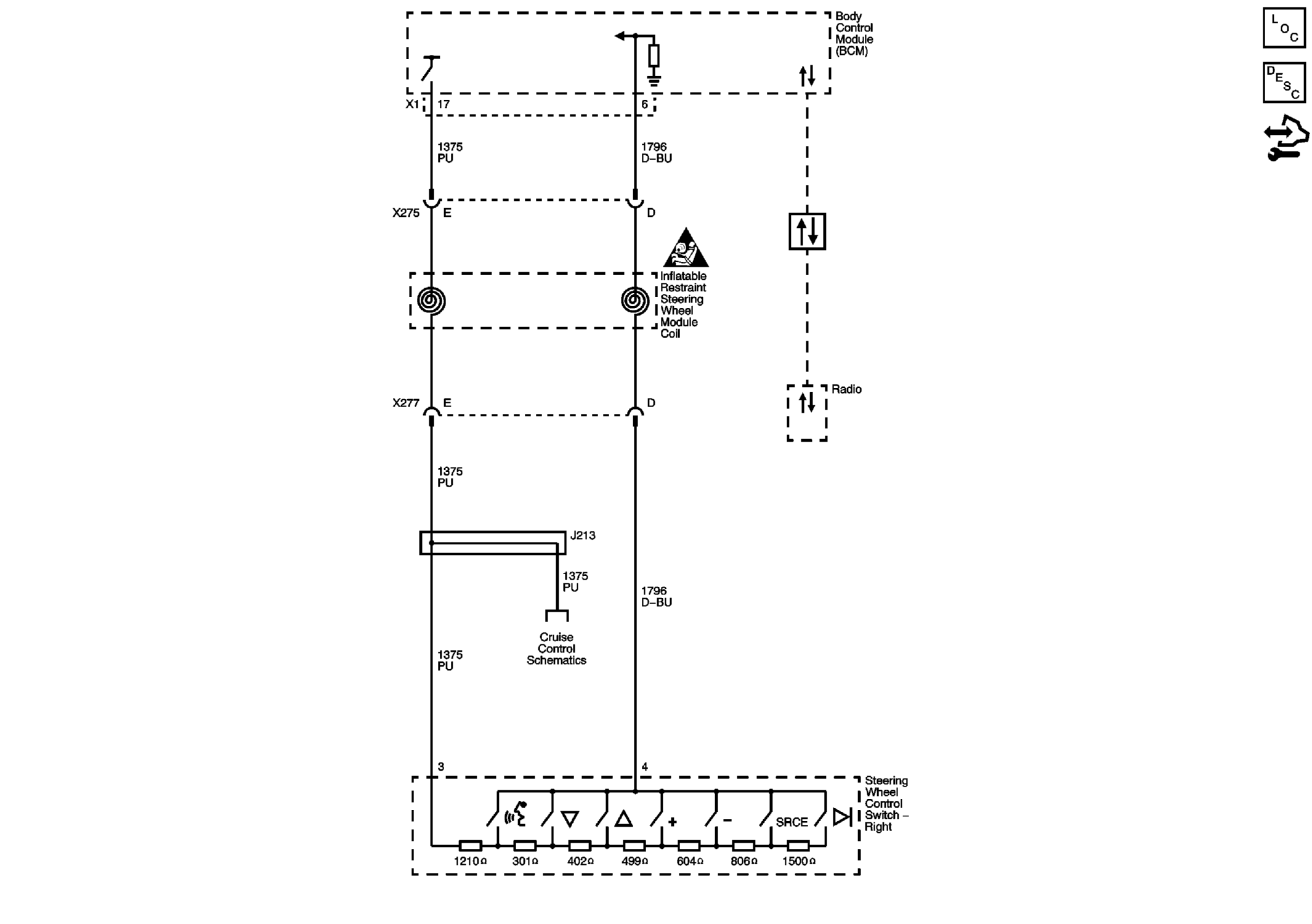

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic
GM2839624Courtesy of GENERAL MOTORS COMPANY
