Garage Door Opener Transmitter Replacement

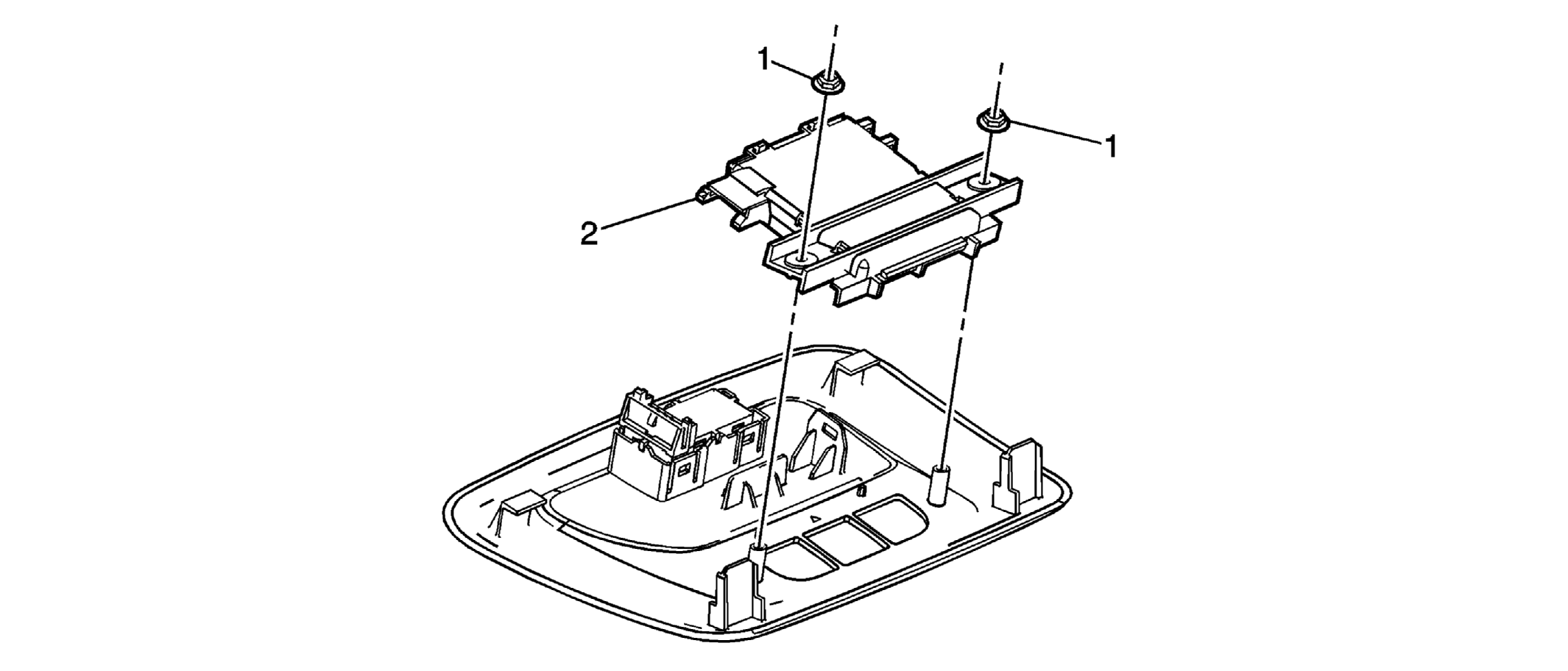

Fig 1: Garage Door Opener & Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the overhead console. Refer to Roof Console Replacement . Program the garage door opener after replacement. Refer to Control Module References .
1	Garage Door Opener Pushbutton Nut CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Garage Door Opener Pushbutton

Callout

Component Name

Preliminary Procedure

Remove the overhead console. Refer to Roof Console Replacement .
Program the garage door opener after replacement. Refer to Control Module References .

Garage Door Opener Pushbutton Nut

CAUTION:

Tighten
2 N.m (18 lb in)

Garage Door Opener Pushbutton
