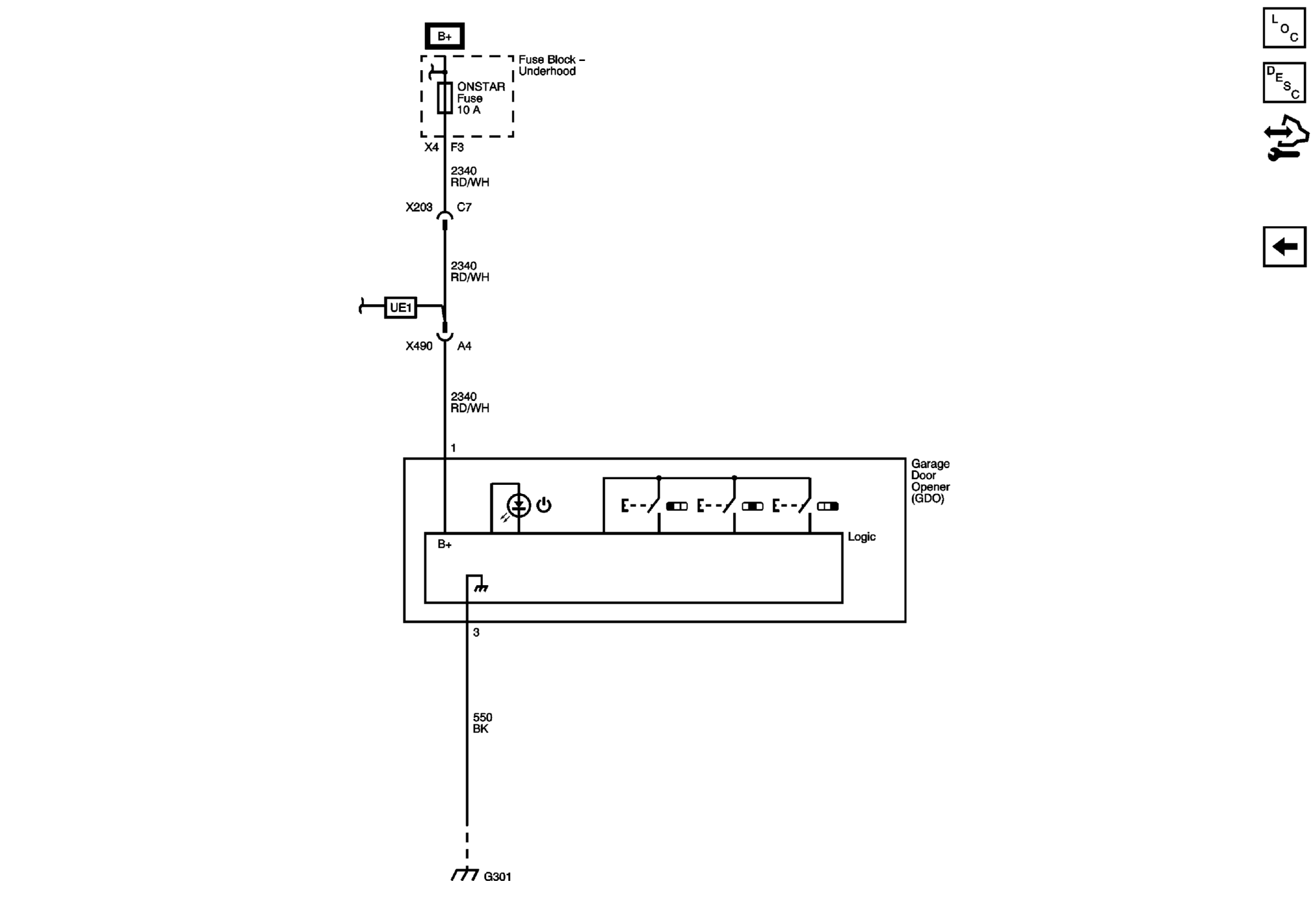

Home › Chevrolet › 2013 › Impala LS › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Garage Door Opener
