Installation Procedure

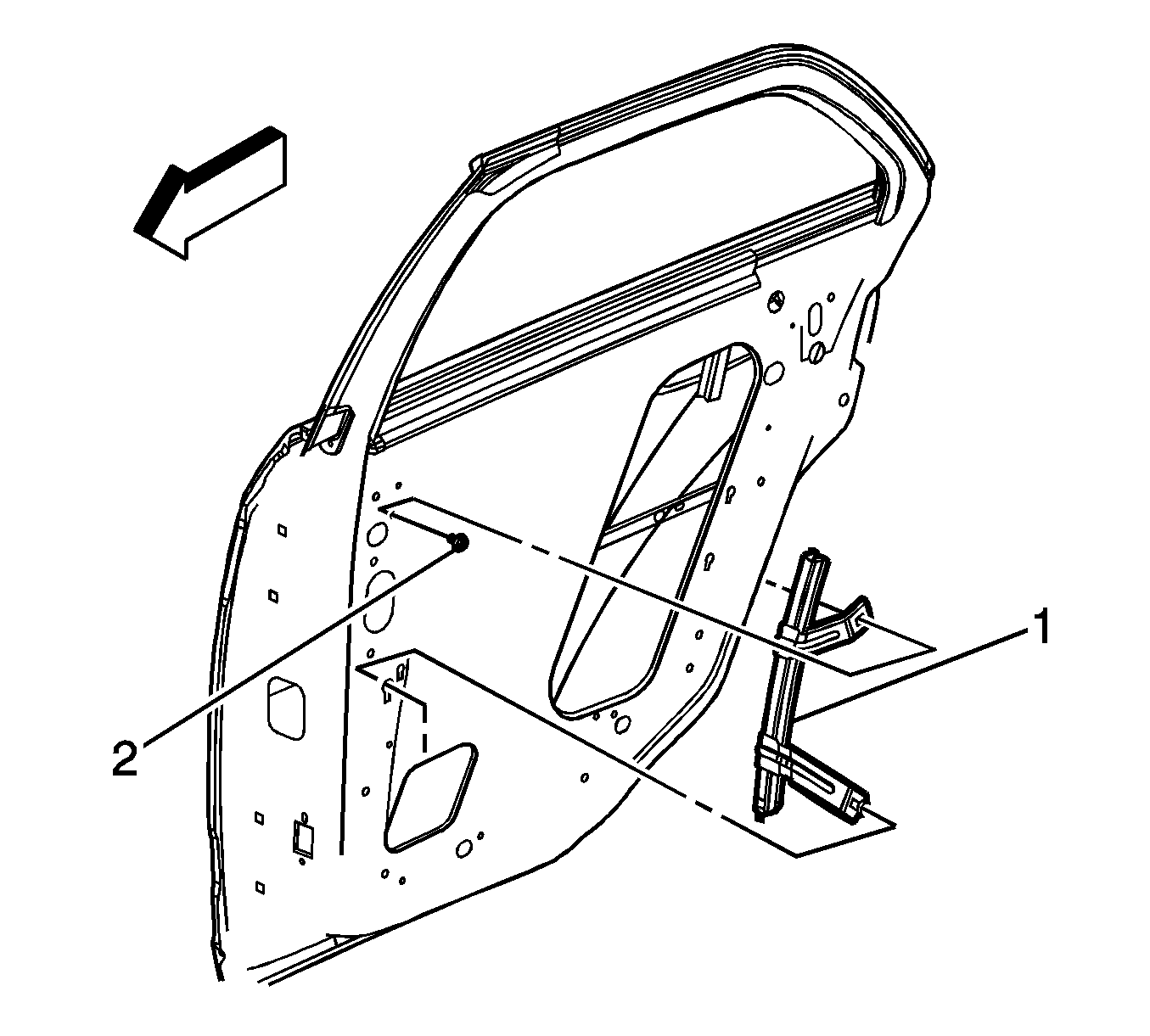

    Fig 1: Identifying Rear Door Window Run Channel
    GM1650570Courtesy of GENERAL MOTORS COMPANY
  1. Install the window channel (1) in the door.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the window run channel bolts (2).

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Inspect the window for proper operation.
  4. Remove the masking tape from the frame and applique.
  5. Install the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  6. Install the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
