Defogger Wiring Schematics: Defogger

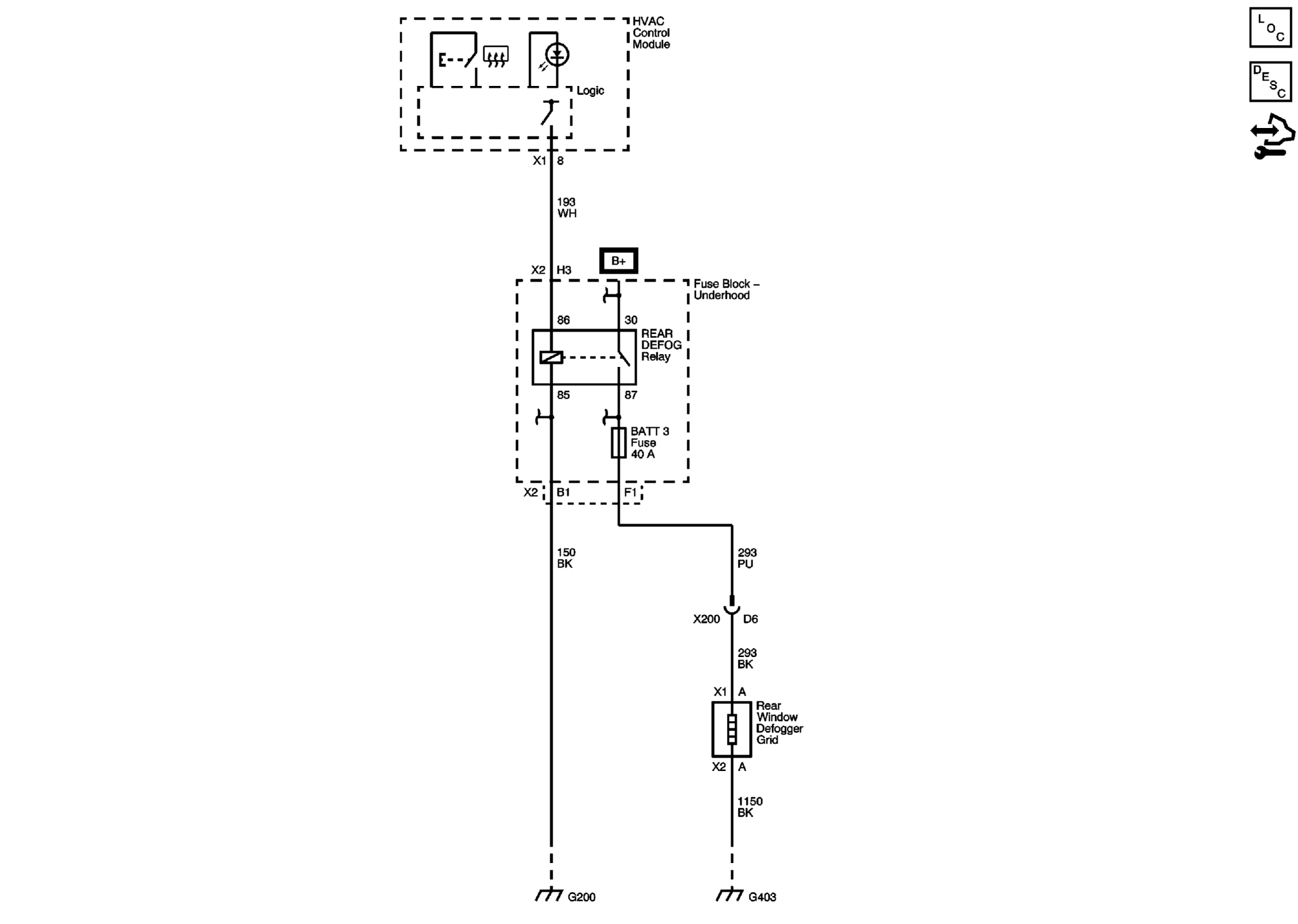

Fig 1: Defogger Wiring Schematic
GM2839042Courtesy of GENERAL MOTORS COMPANY
