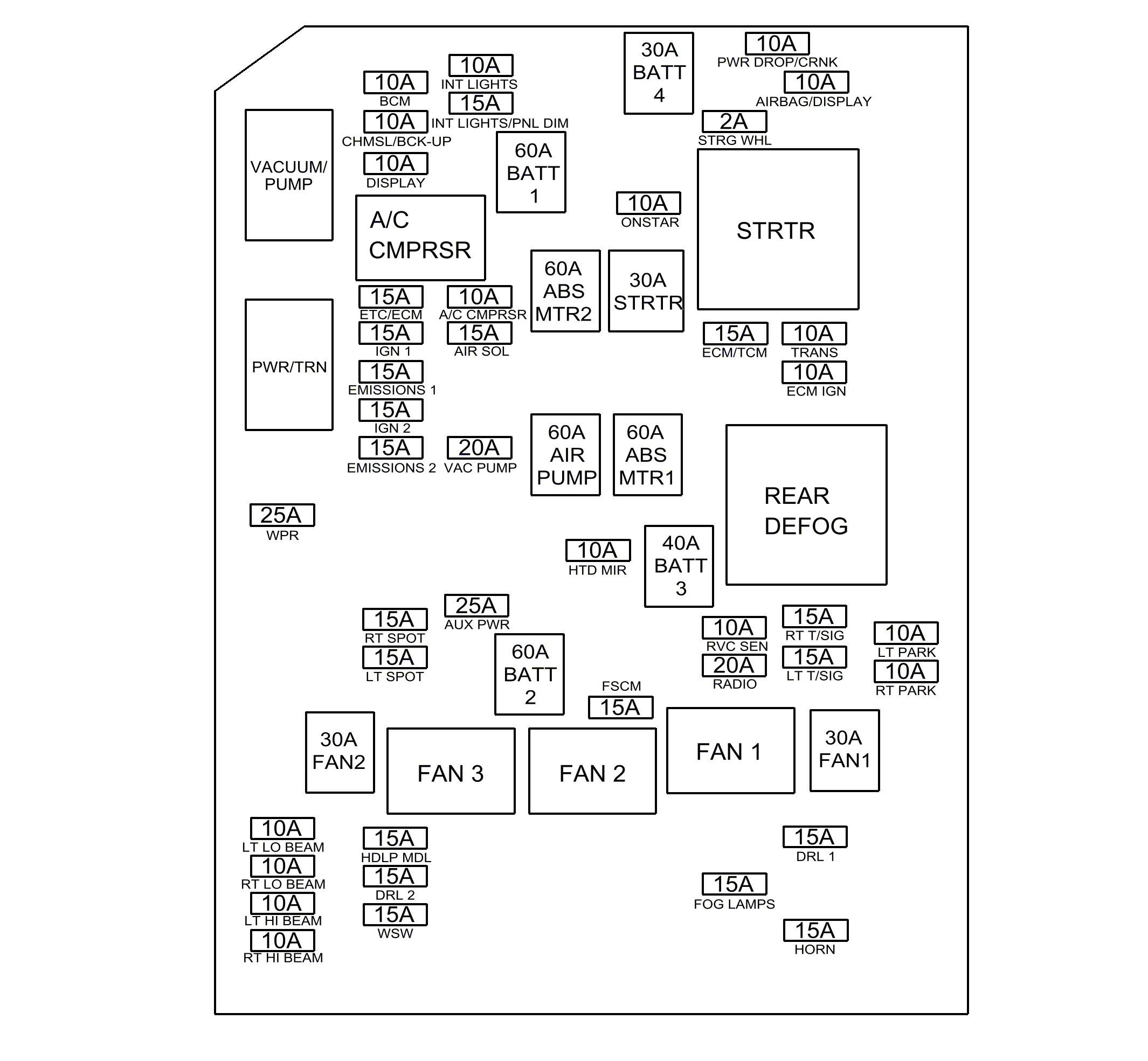

Fuse Block - Underhood Label
FUSE BLOCK - UNDERHOOD FUSE AND RELAY IDENTIFICATION LEGEND
| Fuse And Relay Description | Rating | Circuits |
|---|---|---|
| A/C CMPRSR Fuse | 10A | A/C Compressor Clutch |
| ABS MTR1 Fuse | 60A | Electronic Brake Control Module (EBCM) |
| ABS MTR2 Fuse | 60A | Electronic Brake Control Module (EBCM) |
| AIRBAG/DISPLAY Fuse | 10A | Instrument Panel Cluster (IPC), HVAC Control Module, Inflatable Restraint Passenger Air Bag On/Off Indicator, and Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| AUX PWR Fuse | 25A | Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2 |
| BATT 1 Fuse | 60A | CNSTR, XM, AMP, AUX Fuses, and Trunk Relay |
| BATT 2 Fuse | 60A | HTD/SEAT, AIRBAG, PWR/MIR, S/ROOF, DR/LCK Fuses, PWR/SEAT Circuit Breaker, and RAP Relay |
| BATT 3 Fuse | 40A | Rear Window Defogger Grid |
| BATT 4 Fuse | 30A | Blower Motor Control Module |
| BCM Fuse | 10A | Body Control Module (BCM), Ignition Switch, and Theft Deterrent Module (TDM) |
| CHMSL/BCK-UP Fuse | 10A | Body Control Module (BCM) |
| DISPLAY Fuse | 10A | Data Link Connector (DLC), Remote Control Door Lock Receiver (RCDLR), Instrument Panel Cluster (IPC), and HVAC Control Module |
| DRL 1 Fuse | 15A | DRL 2 Fuse |
| DRL 2 Fuse | 15A | LT LO BEAM Fuse, RT LO BEAM Fuse |
| ECM IGN Fuse | 10A | Engine Control Module (ECM) |
| ECM/TCM Fuse | 15A | Engine Control Module (ECM) and Transmission Control Module (TCM) |
| EMISSIONS 1 Fuse | 15A | Heated Oxygen Sensor (HO2S) 1, Heated Oxygen Sensor (HO2S) 2, and Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| EMISSIONS 2 Fuse | 15 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Valve Lifter Oil Manifold (VLOM) Assembly (LZG), Secondary Air Injection (AIR) Pump Relay (NU3), Secondary Air Injection (AIR) Solenoid Relay (NU3), A/C CMPRSR Relay, FAN 1 Relay, FAN 2 Relay, and FAN 3 Relay |
| ETC/ECM Fuse | 15A | Engine Control Module (ECM) |
| FAN1 Fuse | 30A | FAN 1 Relay |
| FAN2 Fuse | 30A | FAN 3 Relay |
| FOG LAMPS Fuse | 15A | Fog Lamp - Left Front and Fog Lamp - Right Front |
| FSCM Fuse | 15 A | Fuel Pump Flow Control Module |
| HDLP MDL Fuse | 15A | C122 or Emergency Vehicle Headlamp Flasher (6J7) |
| HORN Fuse | 15A | Horn Assembly |
| HTD MIR Fuse | 10A | Outside Rearview Mirror - Driver and Outside Rearview Mirror - Passenger |
| INJ 1 Fuse | 20A | Fuel Injectors 1-6 |
| INJ 2 Fuse | 20A | Ignition Control Module |
| INT LIGHTS Fuse | 10A | Body Control Module (BCM) |
| INT LTS/PNL DIM Fuse | 15A | Body Control Module (BCM) |
| LT HI BEAM FUSE | 10A | Headlamp - High Beam - Left or Emergency Vehicle Headlamp Flasher (6J7) |
| LT LO BEAM Fuse | 10A | Headlamp - Low Beam - Left |
| LT PARK Fuse | 10A | Marker lamp - LF, Park/Turn Signal Lamp - Left Front, Tail Lamp - Left, and Tail/Stop and Turn Signal - Left |
| LT SPOT Fuse (9C1, 9C3) | 15A | Spot Lamp - Left (7x6, 7X7) |
| LT T/SIG Fuse | 15A | Body Control Module (BCM) |
| PWR DROP/CRNK Fuse | 10A | Blunt Cut Wire (9C1, 9C3) |
| RADIO Fuse | 20A | Radio |
| RT HI BEAM Fuse | 10A | Headlamp - High Beam - Right or Emergency Vehicle Headlamp Flasher (6J7) |
| RT LO BEAM Fuse | 10A | Headlamp - Low Beam - Right |
| RT PARK Fuse | 10A | Marker Lamp - RF, Park/Turn Signal Lamp - RF, Tail Lamp - Right, and Tail/Stop and Turn Signal - Right |
| RT SPOT Fuse (9C1, 9C3) | 15A | Spot Lamp - Right (7X7) |
| RT T/SIG Fuse | 15A | Body Control Module (BCM) |
| RVC SEN Fuse | 10A | Body Control Module (BCM) |
| Spare Fuse | 2A | Not Used |
| Spare Fuse | 10A | Not Used |
| Spare Fuse | 15A | Not Used |
| Spare Fuse | 20A | Not Used |
| Spare Fuse | 25A | Not Used |
| STRG WHL Fuse | 2A | Steering Wheel Controls - Left and Steering Wheel Controls - Right |
| STRTR Fuse | 40A | Starter |
| TRANS Fuse | 10A | 1-2 Shift Solenoid (1-2 SS) Valve, 2-3 Shift Solenoid (2-3 SS) Valve, Torque Converter Clutch (TCC) Solenoid Valve, and Transmission Control Module (TCM) |
| VAC PUMP Fuse | 20A | Brake Booster Pump - Auxiliary |
| WPR Fuse | 25A | WIPER PCB Relay |
| WSW Fuse | 15A | Windshield Washer Fluid Pump |
| A/C CMPRSR Relay | - | A/C CMPRSR Fuse |
| FAN 1 Relay | - | Engine Cooling Fan - Left |
| FAN 2 Relay | - | Engine Cooling Fan - Right |
| FAN 3 Relay | - | Engine Cooling Fan - Right |
| PWR/TRN Relay | - | ETC/ECM, INJ 1, INJ 2, EMISSIONS 1, and EMISSIONS 2 Fuses |
| REAR DEFOG Relay | - | BATT 3 and HTD MIR Fuses |
| STRTR Relay | - | STRTR Fuse |
| Vacuum Pump Relay | - | VAC Pump Fuse |
| Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block. | ||
| DRL PCB Relay | - | DRL 1 Fuse |
| FOG LP PCB Relay | - | FOG LAMPS Fuse |
| HIGH BEAM PCB Relay | - | LT HI BEAM and RT HI BEAM Fuses |
| HORN PCB Relay | - | HORN Fuse |
| IGN MAIN PCB Relay | - | AIRBAG/DISPLAY, ECM IGN, PWR DROP/CRNK, and TRANS Fuses |
| LOW BEAM PCB Relay | - | DRL 2, LT LO BEAM, and RT LO BEAM Fuses |
| PARK LP PCB Relay | - | LT PARK and RT PARK Fuses |
| WIPER PCB Relay | - | WIPER HIGH PCB Relay |
| WIPER HIGH PCB Relay | - | Windshield Wiper Motor |
| WS WASH PCB Relay | - | WSW Fuse |
